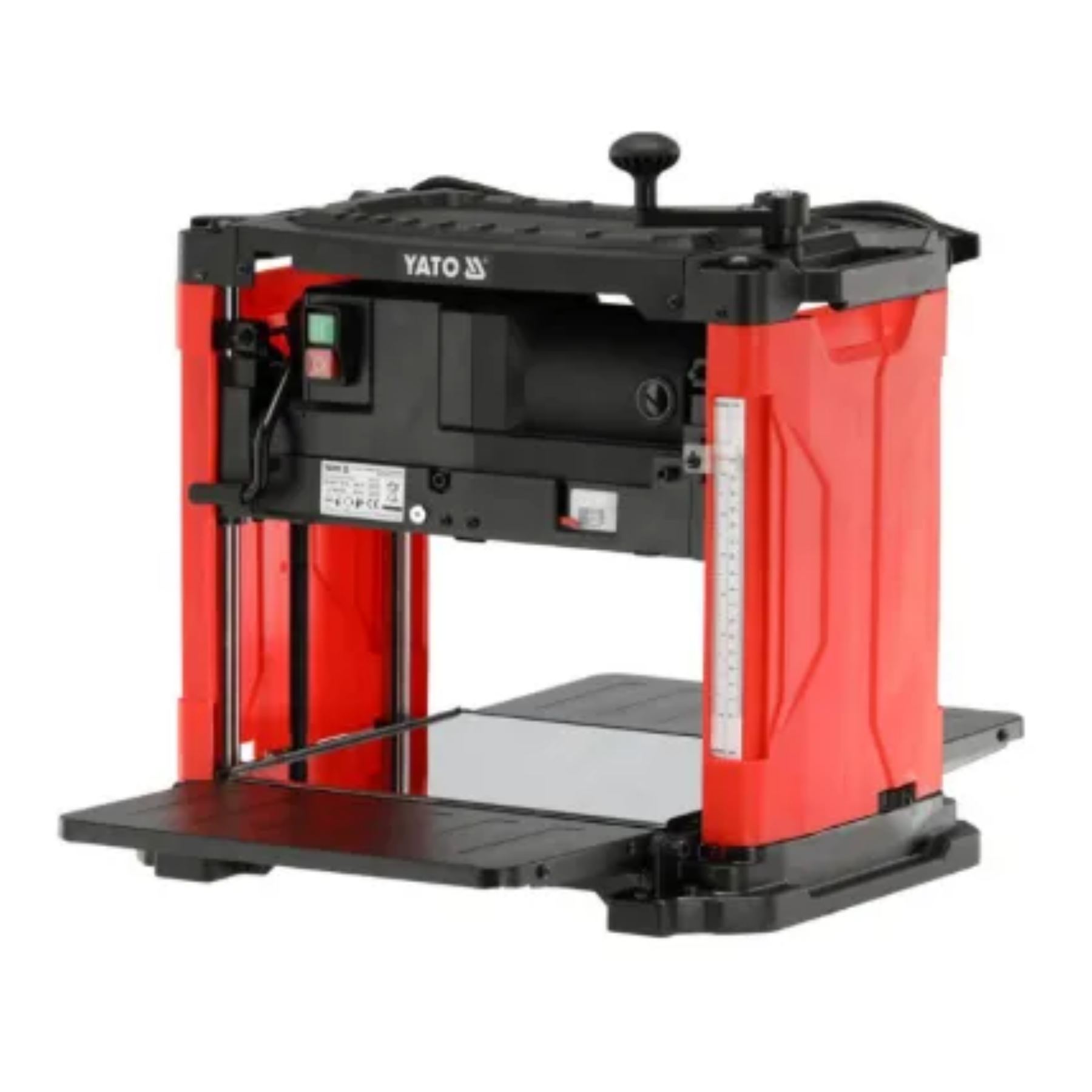

Yato Thickness Planner 1800w YT-82148Bs
Couldn't load pickup availability
Yato Thickness Planner 1800w YT-82148Bs is designed to make wooden boards smooth and evenly sized. Its 1800W motor runs the cutting drum at 10,000 RPM, while the automatic feed system moves wood at up to 7.9 metres per minute. It supports boards up to 330mm wide, with an adjustable planing height from 7mm to 127mm. The depth stop helps users plane several wooden pieces to the same thickness for more even results.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-82148Bs |
| Product Type | Thickness Planer |
| Rated Power | 1800W |
| Voltage | 220–240V AC |
| Frequency | 50Hz |
| Cutting Drum Speed | 10,000 RPM |
| Maximum Feed Speed | 7.9m/min |
| Maximum Planing Depth | 2.4mm |
| Planing Height Range | 7–127mm |
| Maximum Planing Width | 330mm |
| Minimum Material Length | 127mm |
| Cutting Drum Diameter | 49mm |
| Dust Extraction Connection | 60mm |
| Cable Length | 2m |
| Weight | 26.3kg |
| Protection Rating | IPX0 |
| Insulation Class | II |
Key Features
- 1800W electric motor
- Cutting drum speed of 10,000 RPM
- Maximum planing width of 330mm
- Adjustable planing depth up to 2.4mm
- Adjustable board height from 7mm to 127mm
- Depth stop for repeated thickness settings
- Dust extraction connection for cleaner work
- Side handles make the machine easier to carry
Applications
Suitable for smoothing wooden boards, reducing board thickness and creating evenly sized wood pieces. It can be used for furniture making, carpentry, construction and general woodworking.
Package Contents
- Thickness planer
- Dust extraction connection
- Blade fitting and changing key
Safety Note
Place the machine on a strong, flat surface and secure it before use. Wear safety glasses, hearing protection and a dust mask, and disconnect the power before adjusting or changing the blades.
