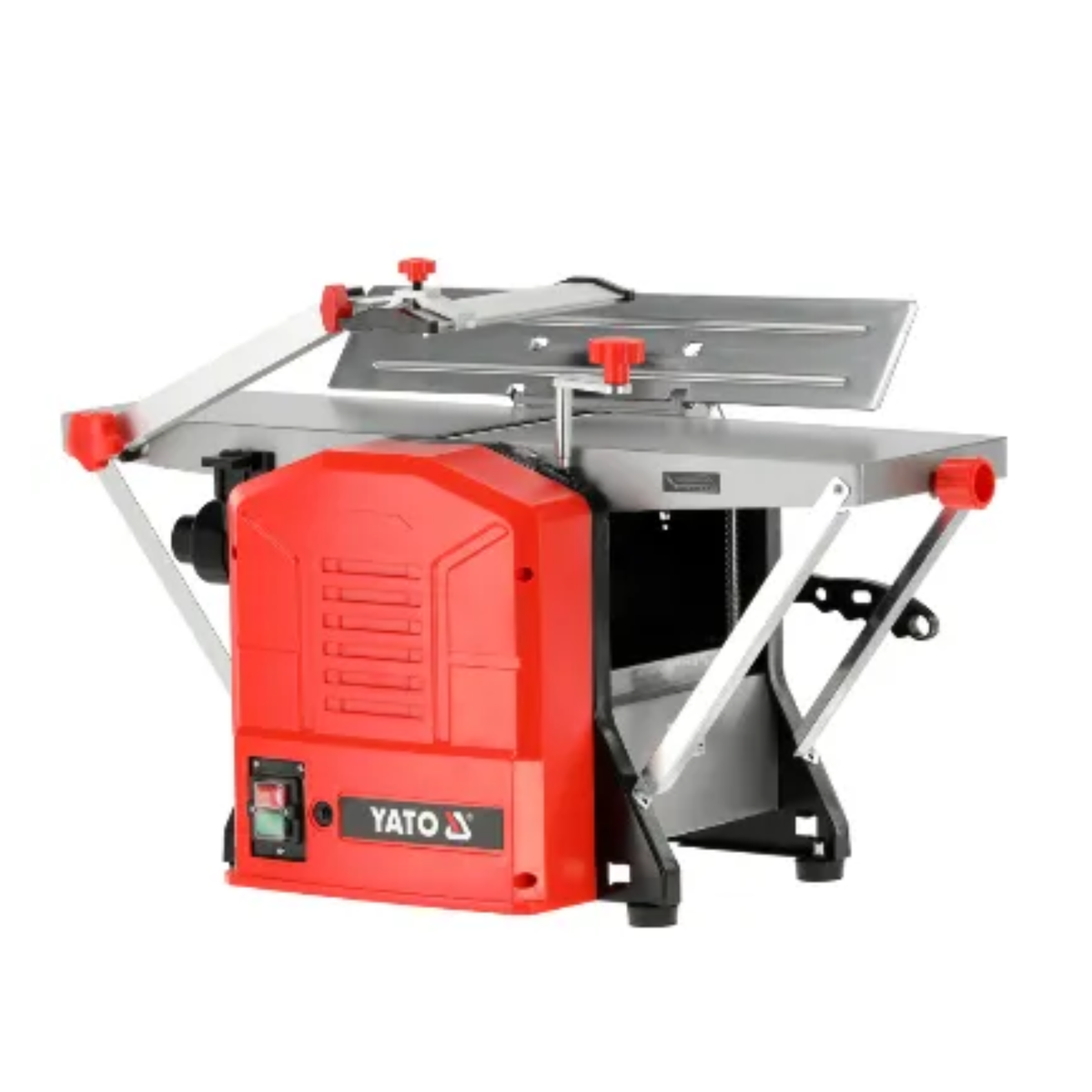

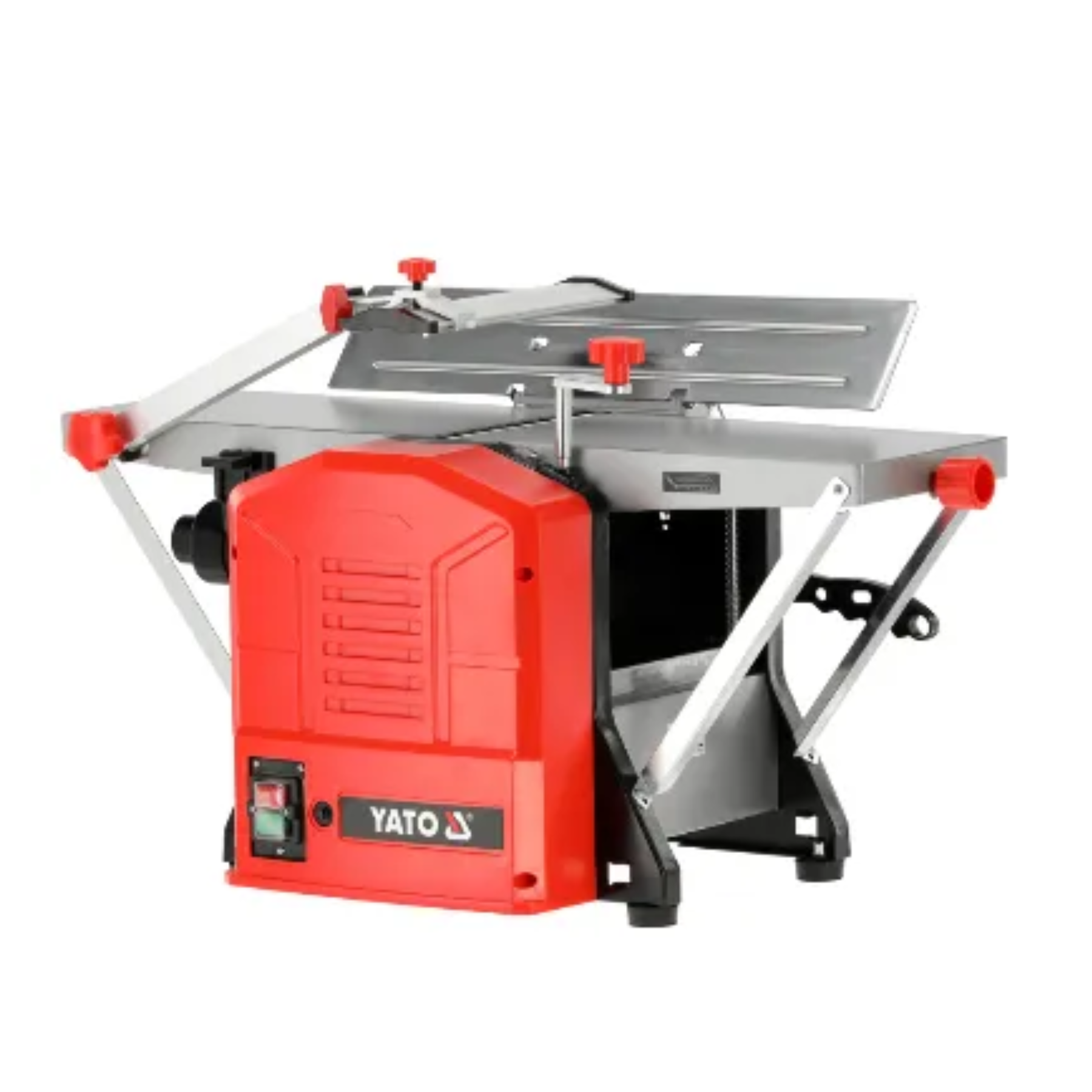

Yato Thickness Planner YT-82147Bs
Couldn't load pickup availability
Yato Thickness Planner YT-82147Bs is designed for smoothing wood surfaces and making boards the same thickness. Its 1250W motor runs at 8,500 RPM, while the feed system moves the wood at up to 6.3 metres per minute. It supports wood up to 204mm wide and 120mm high, with a maximum planing depth of 2mm. The upper table is used for surface planing, while the lower table prepares several boards with an even thickness.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-82147Bs |
| Product Type | Planer and Thicknesser |
| Rated Power | 1250W |
| Voltage | 230V AC |
| Frequency | 50Hz |
| Cutting Speed | 8,500 RPM |
| Maximum Feed Speed | 6.3m/min |
| Maximum Planing Width | 204mm |
| Maximum Planing Height | 120mm |
| Maximum Planing Depth | 2mm |
| Weight | 20.3kg |
| Protection Rating | IPX0 |
| Insulation Class | I |
Key Features
- Combines surface planing and thickness planing
- 1250W electric motor
- Cutting speed of 8,500 RPM
- Maximum planing width of 204mm
- Maximum planing depth of 2mm
- Adjustable height using a turning handle
- Steady feed system for even results
- Emergency stop with accidental-start protection
Applications
Suitable for smoothing rough wood, reducing board thickness and preparing boards or wooden beams with the same size. It can be used for carpentry, furniture making, construction and home woodworking.
Package Contents
- Planer and thicknesser
- Dust extraction connection
- Blade fitting key
Safety Note
Place the machine on a stable surface and secure it before use. Wear safety glasses, hearing protection and a dust mask, and disconnect the power before adjusting or changing the blades.
