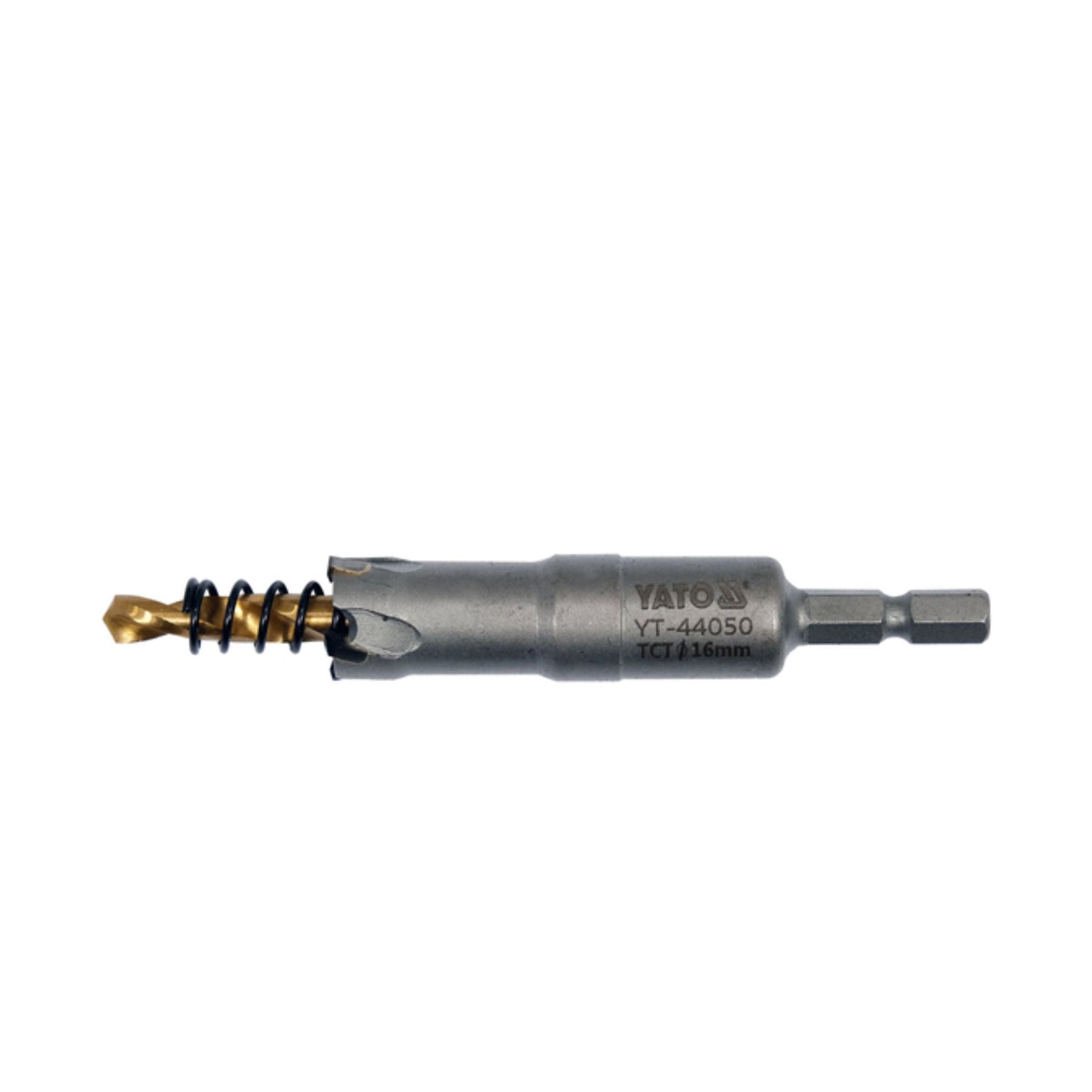

Yato Tct Hole Saw For Metal
Couldn't load pickup availability
YATO TCT Hole Saw for Metal is designed for cutting clean and accurate holes in structural steel, stainless steel, and selected plastics. Its YG10X carbide teeth provide fast cutting and long working life, while the carbon-steel body adds stability. The HSS 4341 pilot drill has a TiN coating for accurate starting and better wear resistance. Available in sizes from 16 mm to 102 mm, with a cutting depth of 25 mm. Official YATO product details
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Product Type | TCT Hole Saw for Metal |
| Available Diameters | 16–102 mm |
| Cutting Material | YG10X Sintered Carbide |
| Body Material | Carbon Steel |
| Pilot Drill Material | HSS 4341 |
| Pilot Drill Coating | Titanium Nitride / TiN |
| Pilot Drill Diameter | 6 mm |
| Cutting Depth | 25 mm |
| Total Length | 103 mm |
| Shank Type | Hexagonal |
| Shank Sizes | 1/4″ (6.3 mm) or 3/8″ (9.5 mm), depending on diameter |
| Suitable Materials | Structural Steel, Stainless Steel, ABS, PE and PVC |
| Included Parts | Hex Key and Ejector Spring |
| Quantity | 1 Piece per Selected Size |
Available Sizes and Models
| Diameter | YATO Model |
|---|---|
| 16 mm | YT-44050 |
| 18 mm | YT-44051 |
| 19 mm | YT-44052 |
| 20 mm | YT-44053 |
| 22 mm | YT-44054 |
| 24 mm | YT-44055 |
| 25 mm | YT-44056 |
| 29 mm | YT-44057 |
| 30 mm | YT-44058 |
| 32 mm | YT-44059 |
| 35 mm | YT-44060 |
| 38 mm | YT-44061 |
| 40 mm | YT-44062 |
| 44 mm | YT-44063 |
| 45 mm | YT-44064 |
| 50 mm | YT-44065 |
| 51 mm | YT-44066 |
| 54 mm | YT-44067 |
| 55 mm | YT-44068 |
| 60 mm | YT-44069 |
| 65 mm | YT-44070 |
| 70 mm | YT-44071 |
| 80 mm | YT-44072 |
| 90 mm | YT-44073 |
| 102 mm | YT-44074 |
Key Features
- YG10X carbide teeth provide clean and accurate cutting.
- Suitable for structural and stainless-steel work.
- Can also cut ABS, PE, PVC, and glass-fibre-reinforced plastic.
- Carbon-steel body supports stable drilling.
- TiN-coated pilot drill helps guide the hole saw.
- Cuts materials up to 25 mm deep.
- Hex shank provides a secure fit in compatible drills.
- Available in 25 sizes for different jobs.
Applications
- Cutting holes in steel sheets
- Drilling stainless-steel panels
- Electrical box installation
- Cutting openings in gas boxes
- Metal fabrication work
- Automotive body repair
- Cutting plastic pipes and panels
- Workshop and construction jobs
Benefits
- Creates neat holes with less surface damage.
- Carbide teeth provide longer use than standard hole saw teeth.
- Pilot drill helps keep the cutting point centred.
- Ejector spring makes removing the cut material easier.
- Wide size range suits small and large openings.
- Works with compatible drills and drilling machines.
Package Contents
- 1 × YATO TCT Hole Saw in the selected size
- 1 × Hex Key
- 1 × Ejector Spring
Safety Note
Wear safety glasses, gloves, and hearing protection during use. Keep the hole saw straight, select the correct drilling speed, and use suitable cutting oil when drilling metal. Do not use hammer mode.
