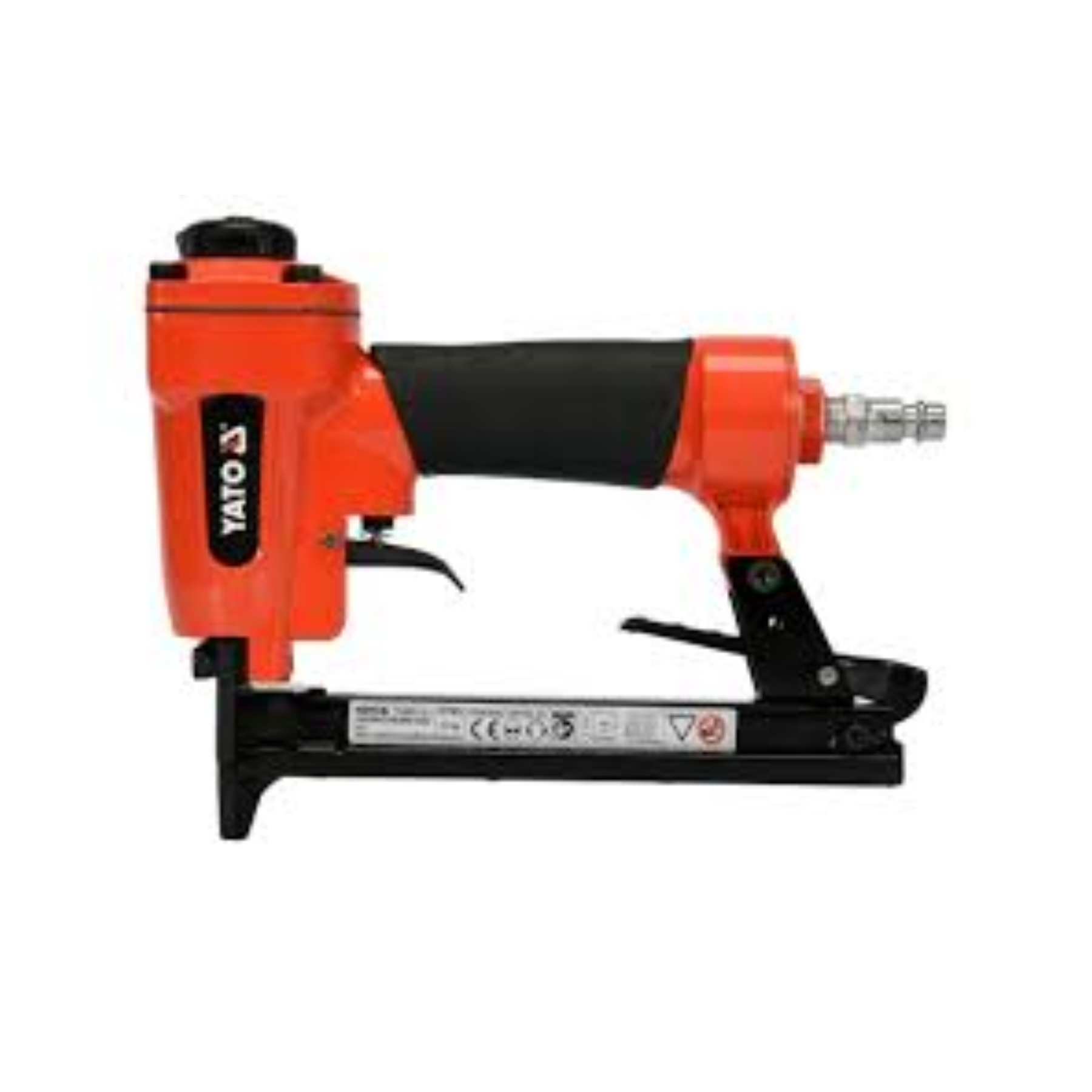

Yato Air Stapler 6-16mm YT-09201
Couldn't load pickup availability
Yato Air Stapler 6-16mm YT-09201 is designed for fastening fabric, thin wood, insulation and other materials during assembly and finishing work. It uses 6–16mm staples with a 12.7mm crown and holds up to 100 staples in the magazine. The stapler operates with 4–7 bar air pressure and connects to a compressor through a standard 1/4" air inlet. Its lightweight 0.89kg body and rotating air outlet provide easy control and help direct exhaust air away from the user.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-09201 |
| Product Type | Pneumatic Air Stapler |
| Staple Length | 6–16mm |
| Staple Crown Width | 12.7mm |
| Magazine Capacity | 100 Staples |
| Recommended Working Pressure | 4–7 Bar |
| Working Pressure | 60–100 PSI |
| Maximum Working Pressure | 7 Bar |
| Air Connection | 1/4" |
| Required Air Hose Inner Diameter | 3/8" |
| Product Dimensions | 215 × 50 × 165mm |
| Weight | 0.89kg |
| Sound Pressure Level | 88 ± 2.5dB(A) |
| EAN | 5906083034367 |
Key Features
- Accepts staples from 6mm to 16mm
- Uses staples with a 12.7mm crown
- Magazine holds up to 100 staples
- Operates at a working pressure of 4–7 bar
- Lightweight body supports comfortable handling
- Rotating air outlet directs exhaust away from the user
- Standard 1/4" connection supports easy compressor setup
- Suitable for assembly and finishing work
Applications
Suitable for furniture work, upholstery, attaching fabric, fixing insulation, fitting thin wooden parts, installing decorative materials and completing general workshop assembly tasks.
Package Contents
- 1 × Yato Air Stapler YT-09201
- 1 × Air connector
Safety Note
Disconnect the air supply before loading staples, clearing a blockage or carrying out maintenance. Never point the stapler towards yourself or another person, and always wear suitable eye and hearing protection.
