Yato Saw Drill Bits Hss-tin Hex
Couldn't load pickup availability

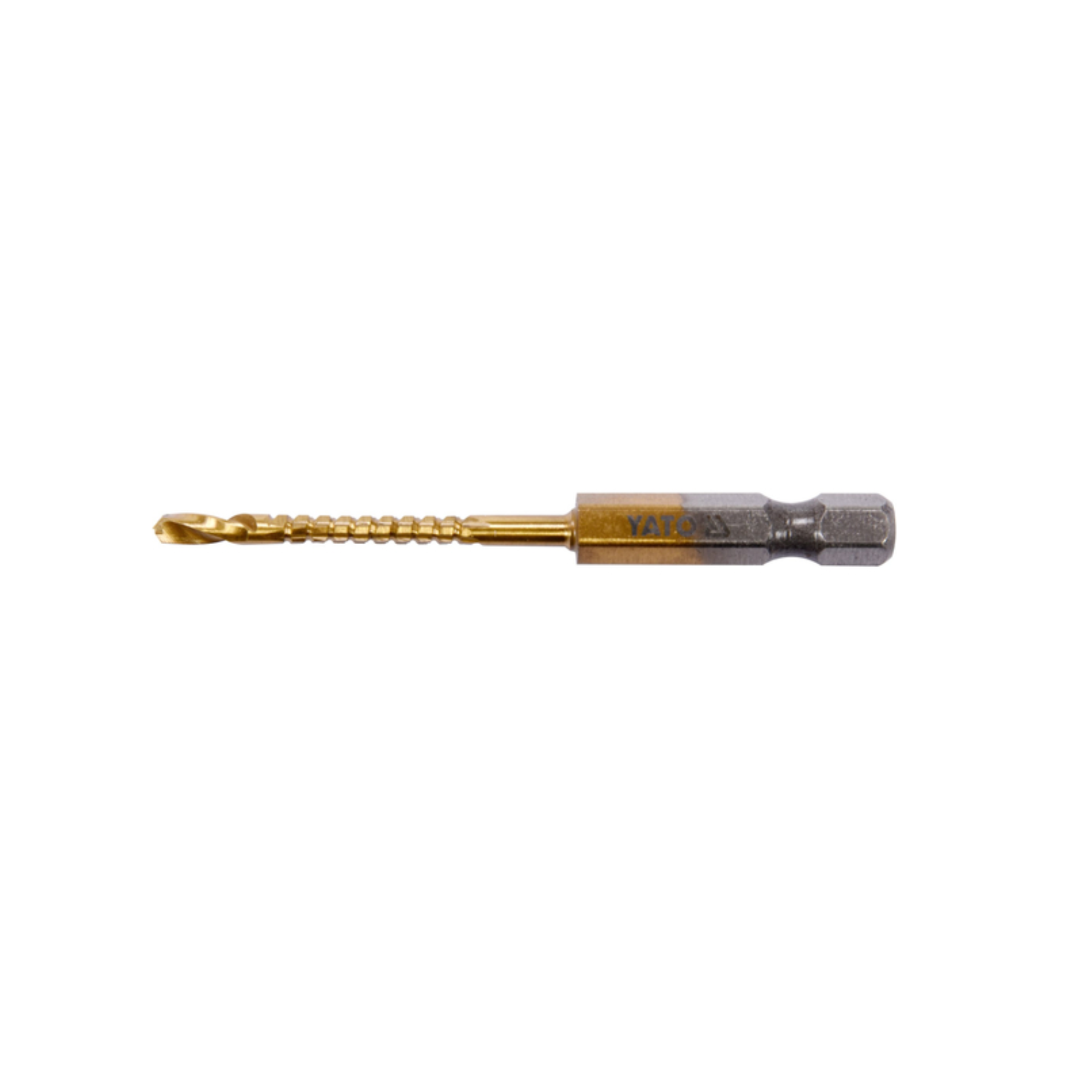

YATO Saw Drill Bits HSS-TiN Hex are designed for drilling, widening, shaping, and cutting holes in metal. Made from HSS 4241 high-speed steel with a titanium nitride coating, they provide smooth drilling and good heat resistance. The 118° split-point tip helps centre the bit without marking the surface first. A 1/4-inch hex shank provides a firm grip in compatible drills and drill drivers. Different sizes are available for stainless steel, structural steel, acid-resistant steel, and other metalwork. Official YATO product details
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Product Type | Metal Saw Drill Bit |
| Material | HSS 4241 High-Speed Steel |
| Coating | Titanium Nitride / TiN |
| Available Diameters | 3–13 mm |
| Tip Type | Split Point |
| Tip Angle | 118° |
| Shank Type | Hex |
| Shank Size | 1/4" / 6.3 mm |
| Surface Finish | Ground |
| Suitable Materials | Stainless Steel, Structural Steel, Acid-Resistant Steel and Metal |
| Quantity | 1 Piece per Selected Size |
Available Sizes and Models
| Diameter | Model |
|---|---|
| 3 mm | YT-44820 |
| 4 mm | YT-44821 |
| 5 mm | YT-44822 |
| 6 mm | YT-44823 |
| 6.5 mm | YT-44824 |
| 7 mm | YT-44825 |
| 8 mm | YT-44826 |
| 9 mm | YT-44827 |
| 10 mm | YT-44828 |
| 11 mm | YT-44829 |
| 12 mm | YT-44830 |
| 13 mm | YT-44831 |
Key Features
- Made from HSS 4241 high-speed steel.
- TiN coating supports better heat control.
- Split-point tip helps prevent slipping at the start.
- 118° tip angle provides accurate centring.
- Allows drilling and side cutting in different directions.
- Suitable for widening and shaping existing holes.
- Ground surface supports clean and accurate drilling.
- 1/4-inch hex shank provides a secure tool connection.
Applications
- Drilling holes in metal
- Widening existing openings
- Shaping uneven holes
- Cutting openings for door locks
- Drilling stainless steel
- Working with structural steel
- Metal fitting and installation
- Workshop and industrial jobs
Package Contents
- 1 × YATO Saw Drill Bit HSS-TiN Hex in the Selected Size
Safety Note
Wear safety glasses and gloves during use. Select a suitable drilling speed for the metal and bit size. Make sure the drill bit is firmly fitted before starting.
