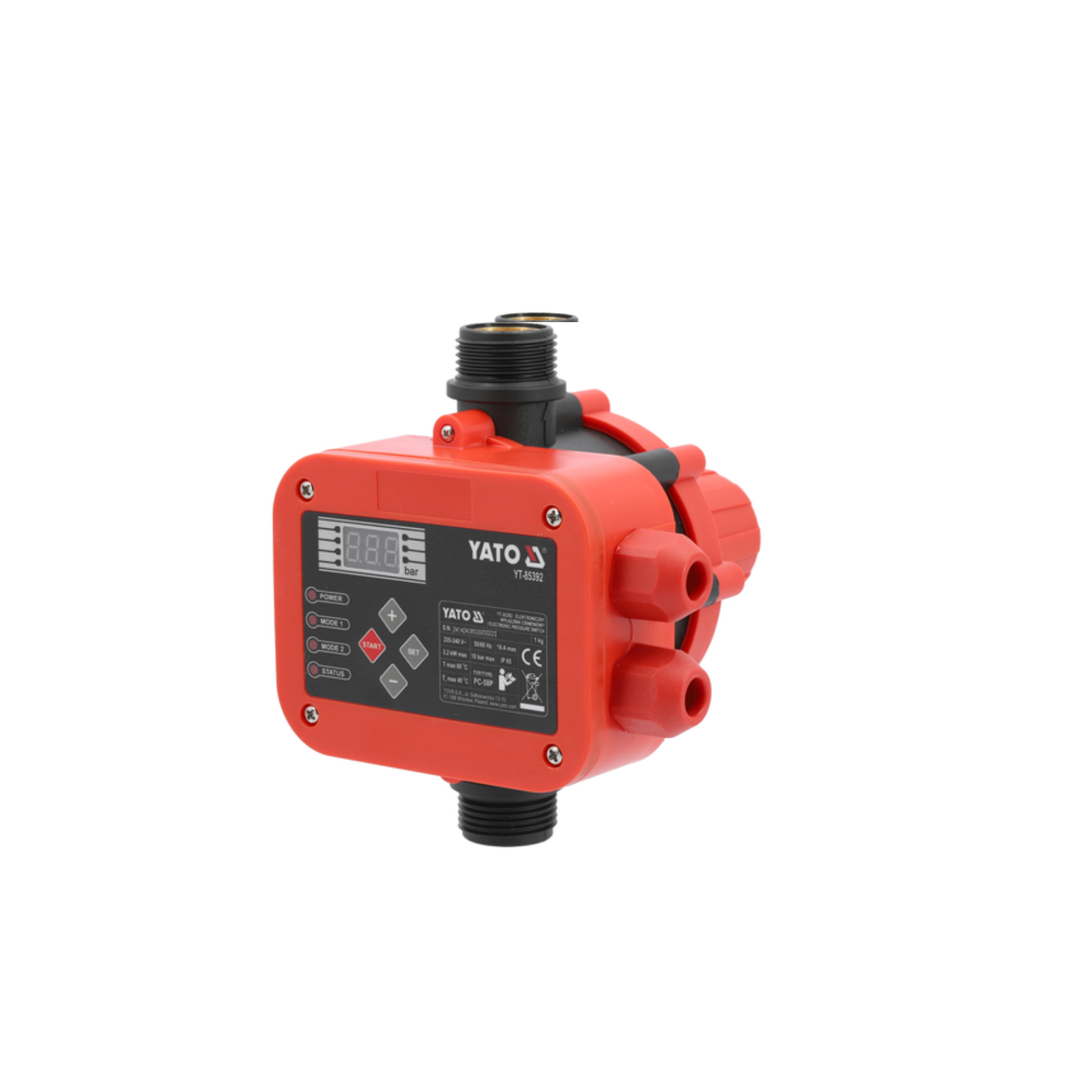

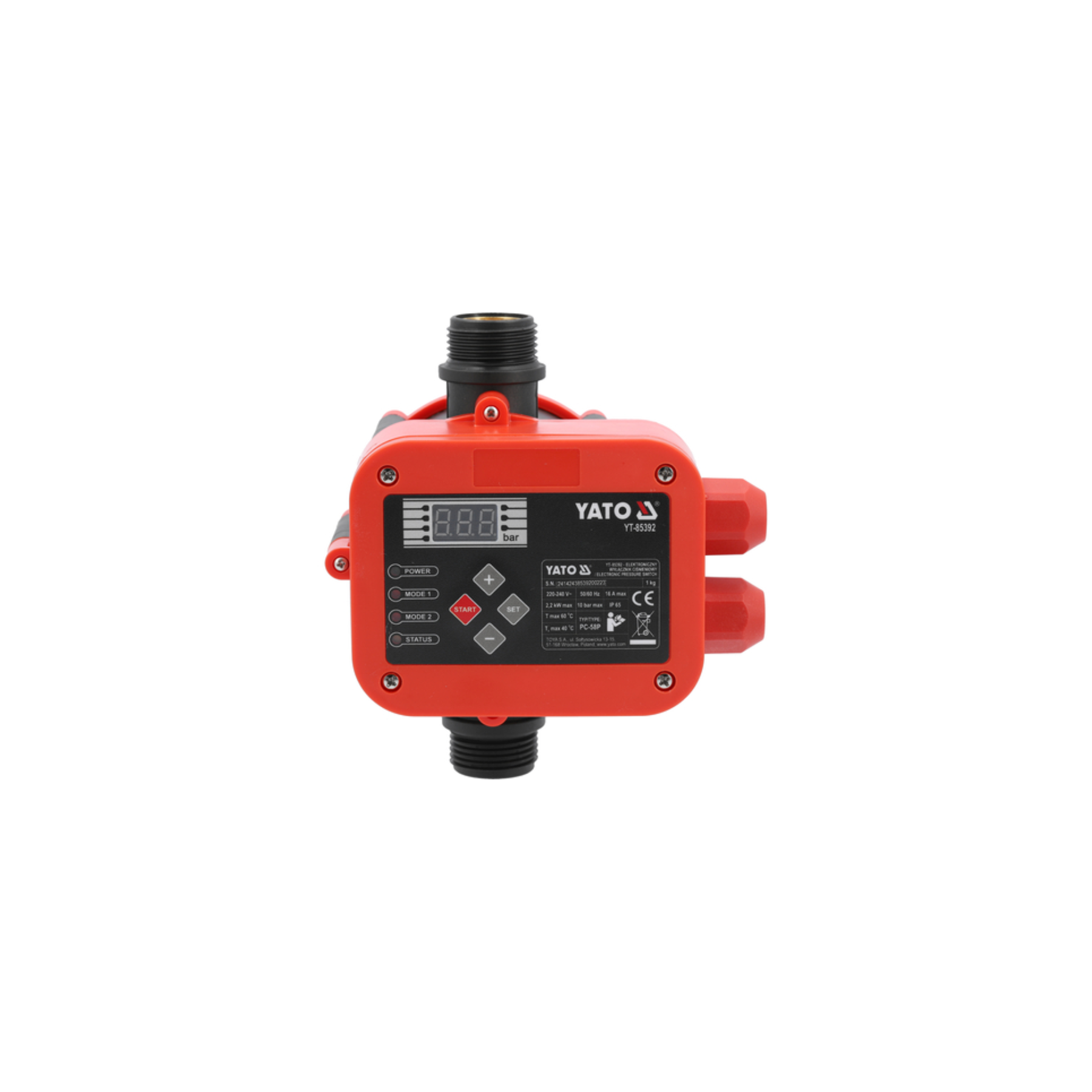

YATO Pressure Switch 1100w YT-85392
Couldn't load pickup availability
YATO Pressure Switch 1100W YT-85392 is designed to automatically control water pumps and maintain steady water pressure for domestic water supply and garden irrigation systems. The electronic pressure switch monitors the pressure inside the pipeline and automatically starts or stops the pump when water is needed. It also includes dry-running protection to help prevent pump damage when there is no water supply. The built-in LCD display makes it easy to monitor settings and operating status, while the durable polypropylene housing is suitable for indoor and outdoor installations. The switch supports pumps up to 2.2 kW and provides reliable pressure control for everyday water systems.
Key Features
• Electronic pressure control system
• Maintains constant water pressure
• Automatic pump start and stop
• Dry-running protection for pump safety
• Easy-to-read LCD display
• Durable polypropylene housing
• IP65 dust and water protection
• Suitable for domestic and irrigation pump systems
Specifications
• Brand: YATO
• Model: YT-85392
• Product Type: Electronic Pressure Switch
• Type: PC-58P
• Maximum Pump Capacity: 2.2 kW (2200 W)
• Operating Voltage: 220–240 V AC
• Frequency: 50/60 Hz
• Rated Current: 16 A
• Starting Pressure: 0.5–6 bar (Adjustable)
• Maximum Working Pressure: 10 bar
• Stop Pressure: 0.8–9.8 bar (Adjustable)
• Water Connection: 1 inch (25 mm)
• Housing Material: Polypropylene (PP)
• Display: LCD
• Protection Rating: IP65
• Maximum Liquid Temperature: 60°C
• Maximum Ambient Temperature: 40°C
• Input Cable Length: 1 m
• Output Cable Length: 0.5 m
• Weight: 1 kg
• Automatic On/Off: Yes
• Dry Running Protection: Yes
• Electronic Pressure Control: Yes
Applications
• Domestic water supply systems
• Garden irrigation systems
• Booster pump installations
• Water transfer systems
• Rainwater collection systems
• Agricultural water pumping
• Small commercial water supply
• Automatic pump control systems
Package Contents
• 1 × YATO Pressure Switch 1100W YT-85392
• 1 × Input Cable (1 m)
• 1 × Output Cable (0.5 m)
• User Manual
