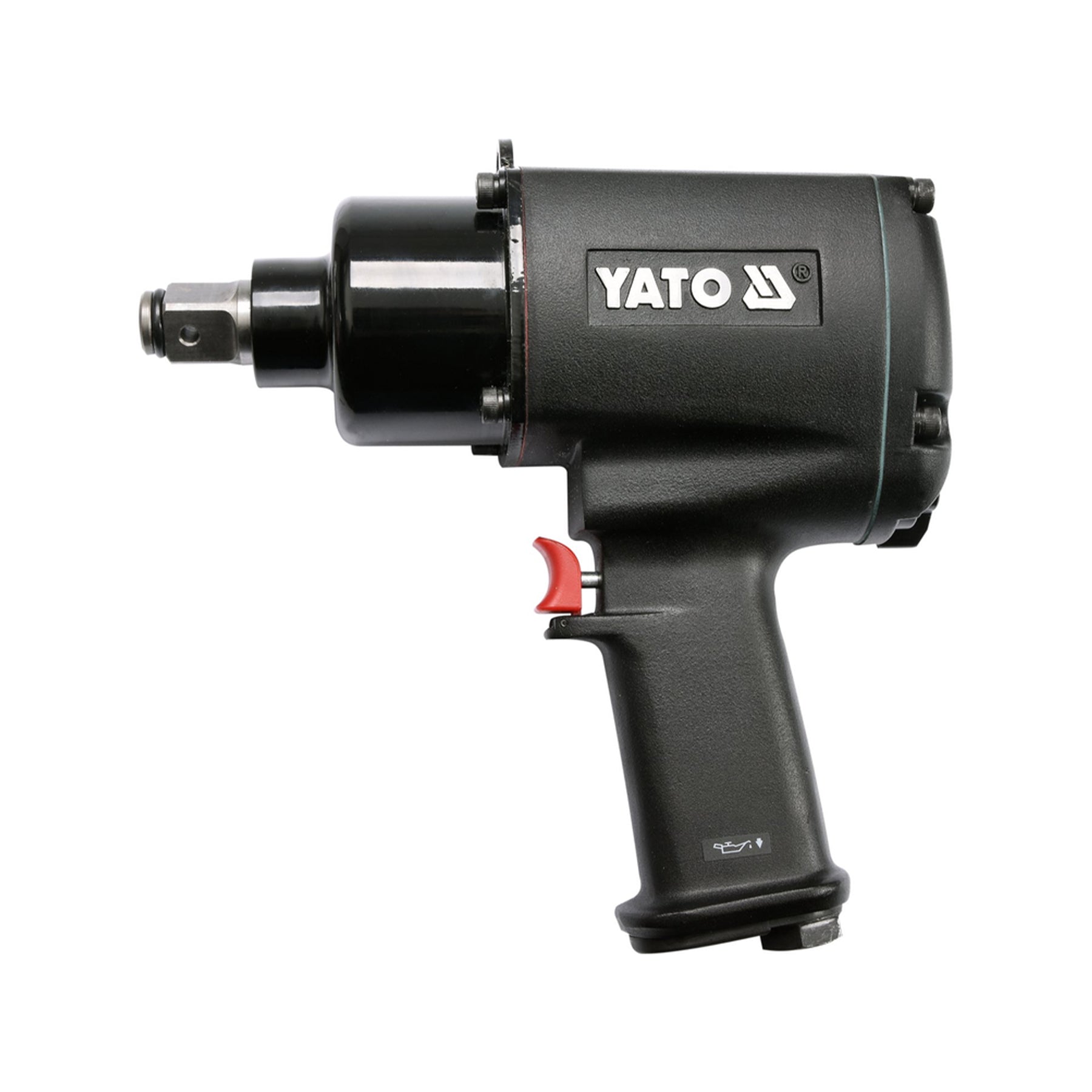

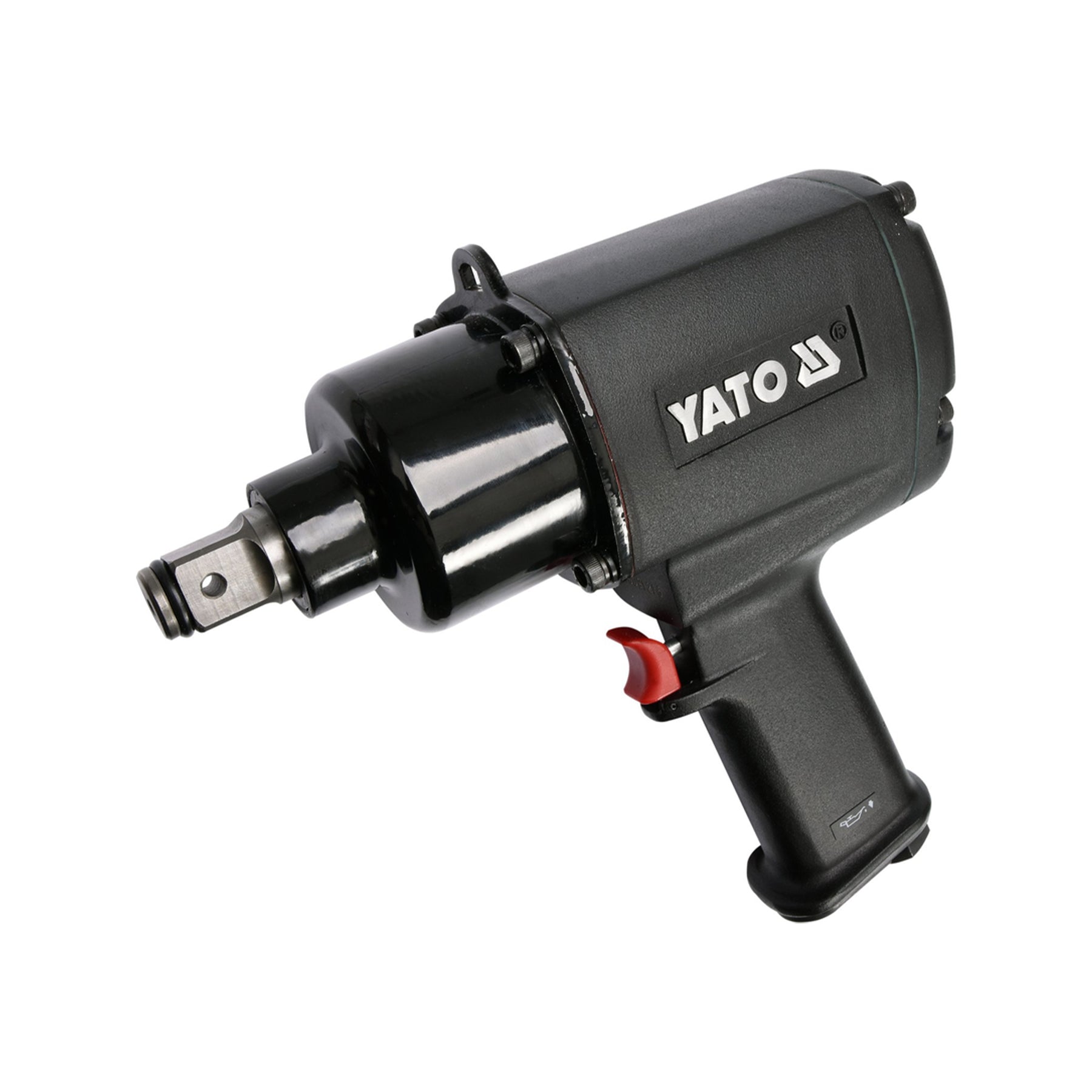

Yato Air Impact Wrench 3/4" 1300nm YT-09564
Couldn't load pickup availability
Yato Air Impact Wrench 3/4" 1300nm YT-09564 is designed for tightening and loosening large nuts and bolts in workshops, vehicle service centres and industrial work areas. Its Twin Hammer mechanism delivers up to 1300Nm of torque with a no-load speed of 5000rpm. The forward and reverse switch allows quick direction changes, while the 3/4" drive supports larger impact sockets. Its aluminium housing provides strength while keeping the tool compact at 230mm long.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-09564 |
| Product Type | Pneumatic Impact Wrench |
| Square Drive | 3/4" |
| Maximum Torque | 1300Nm |
| No-Load Speed | 5000rpm |
| Impact Mechanism | Twin Hammer |
| Maximum Working Pressure | 0.6–0.8MPa |
| Recommended Working Pressure | 0.63MPa |
| Required Airflow | 660L/min |
| Air Connection | 3/8" |
| Quick Coupler Size | 3/8" |
| Required Air Hose Inner Diameter | 3/8" |
| Housing Material | Aluminium |
| Tool Length | 230mm |
| Weight | 4.7kg |
| Sound Pressure Level | 92 ± 3dB(A) |
| Sound Power Level | 103 ± 3dB(A) |
| Vibration Level | 5.47 ± 1.5m/s² |
| EAN | 5906083095641 |
Key Features
- Delivers up to 1300Nm of torque
- Uses a 3/4" square drive
- Reaches a no-load speed of 5000rpm

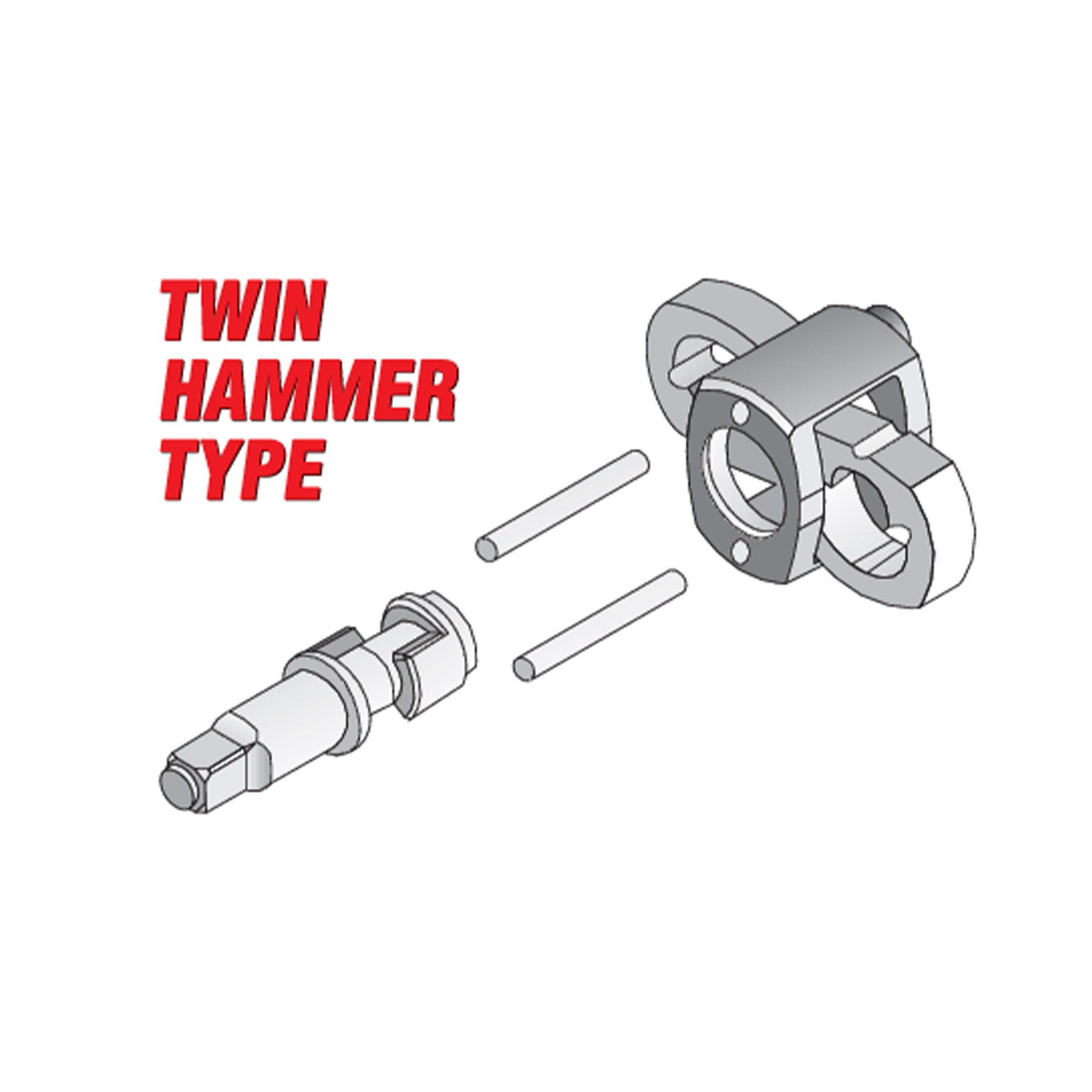

- Twin Hammer mechanism supports fast operation
- Forward and reverse switch changes direction easily
- Aluminium housing supports long-term use
- Compact 230mm length improves handling
- Suitable for workshops and industrial maintenance
Applications
Suitable for truck and vehicle repair, tyre service, machinery maintenance, industrial assembly and other jobs involving large nuts, bolts and fasteners.
Package Contents
- 1 × Yato Air Impact Wrench YT-09564
- 1 × Air hose connector
Safety Note
Use only impact-rated sockets and disconnect the air supply before changing accessories. Wear suitable eye, hearing and hand protection, and do not exceed the maximum working pressure of 0.8MPa.
