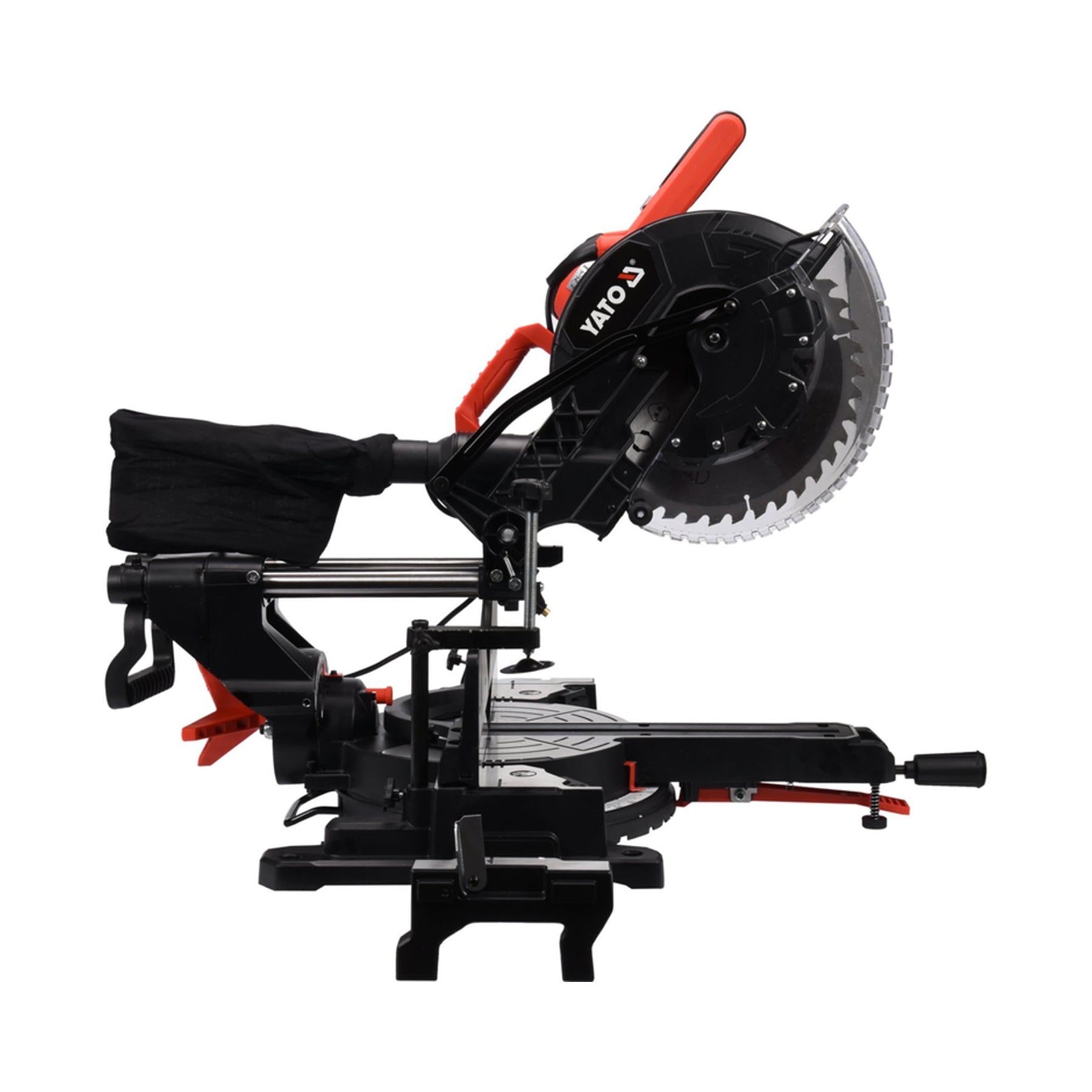

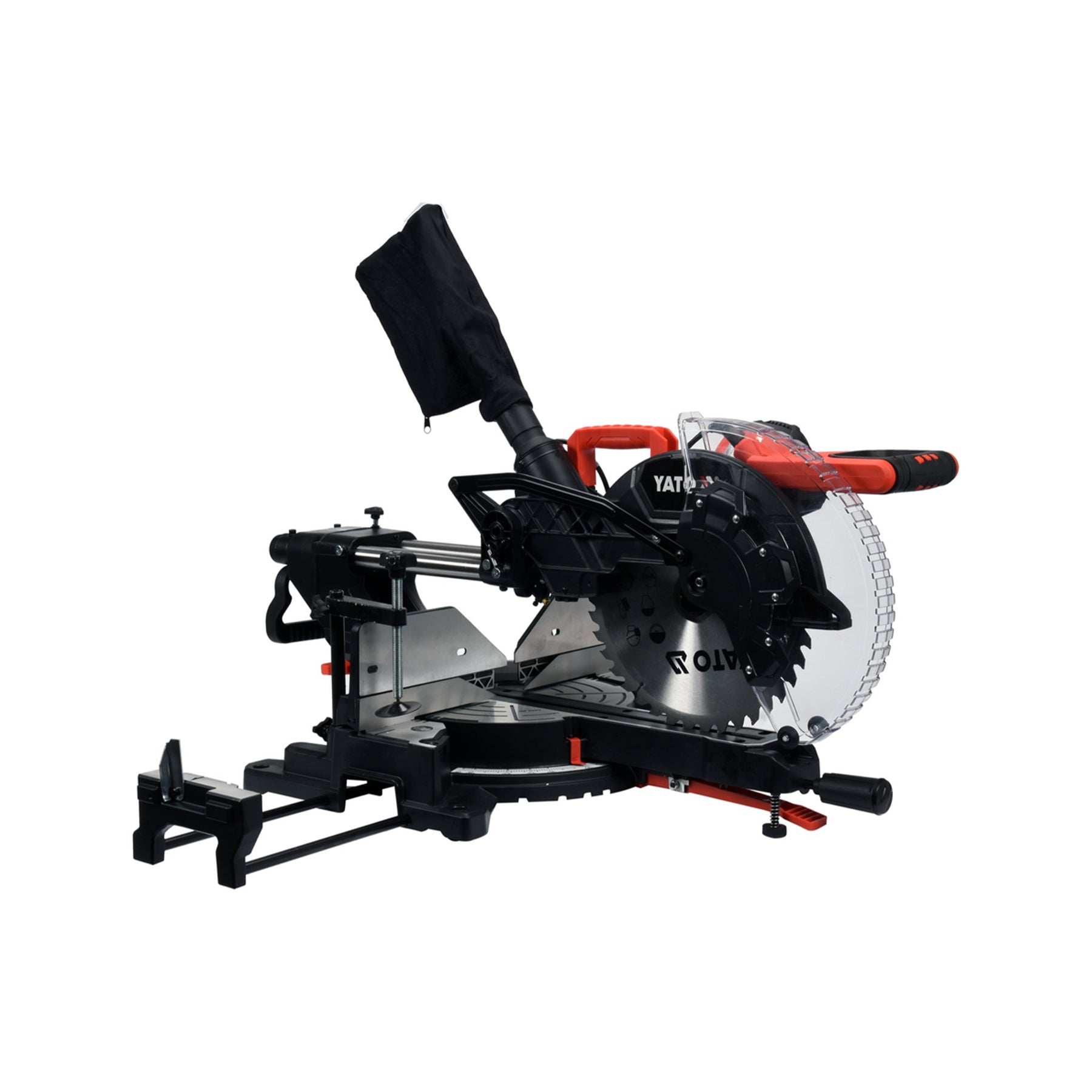

Yato Mitre Saw 305Mm 1800W With Laser YT-82175Bs

Cutting bevel with 305mm 1800w blade with laser for cutting large parts

Professional mitre saw with feed and 305mm blade designed for straight and angular cutting of large elements (pillars, purlins, joists).

Purposeful during construction work. Provides precise and fast processing of materials with large cross sections.

Provides precise and fast processing of materials with large cross sections

Features of Yato mitre saw:

stable base with precise vertical and horizontal cutting angle adjustment
lateral extendable supports make it easy to cut elongated pieces
.laser cutting line indicator
bearing cutting wheel advance
smooth-action pivoting blade guard, integrated into the switch
.clamp integrated into the base ensures safe and quick immobilization of the workpiece
readable angle graduation for precise cutting and stable settings
.possibility of using a chip bag or connecting a vacuum cleaner
compact dimensions and a transport handle in the central part of the housing ensure proper balance and easy handling
Package contents:

cutting machine
dust collection bag
disc saw
.workbench extensions
workbench clamp
workbench locking screw
Parameters:

Rating voltage [V~]: 220 - 240
Rating power [W]: 1800
Rating speed [rpm]: 5000
shield saw: diam. outer x clamping diameter x thickness max [mm]: 305 x 30 x 3.0
minimum workpiece dimensions: H. x length x thickness [mm]: 20 x 200 x 20
maximum bevel cutting angle [deg.]: 45
insulation class: II
grade of protection: IP20
weight [kg]: 21
Max. height x max. cutting length:

horizontal rotation angle 0 deg. / tilt angle 0 deg[mm]: 105 x 340
horizontal rotation angle 45 deg. / tilt angle 0 deg. [mm]: 105 x 235
horizontal rotation angle 0 st. / tilt angle 45 st. [mm]: 60 x 340
horizontal rotation angle 45 st. / 45 st. tilt angle [mm]: 60 x 235
The bevel allows you to set two types of angles:

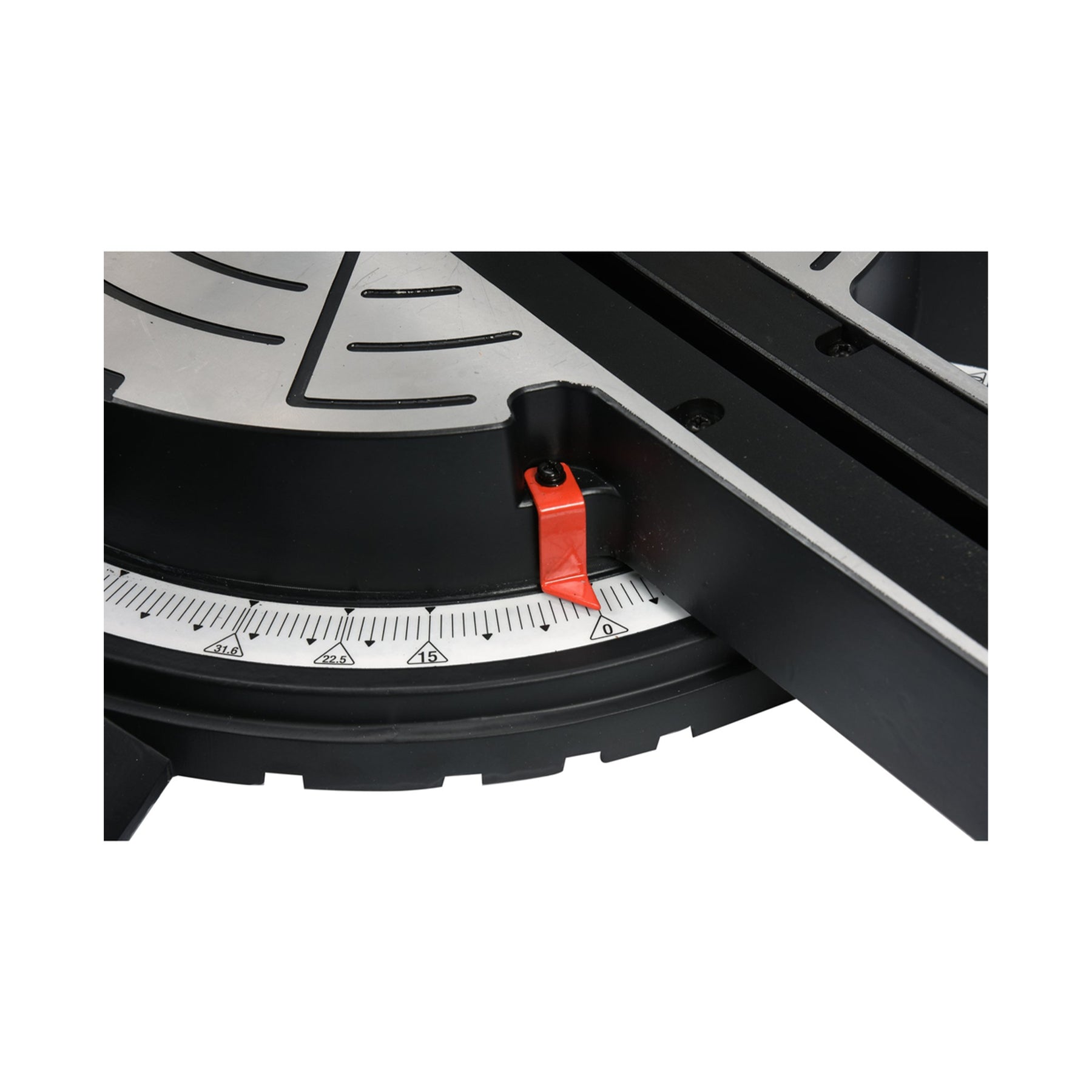

longitudinal cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the head angle, the bevel has a scale with a ratchet that allows easy setting of the head at the most common angles .nbsp;(0; 15; 22.5; 31.6; 45 degrees)

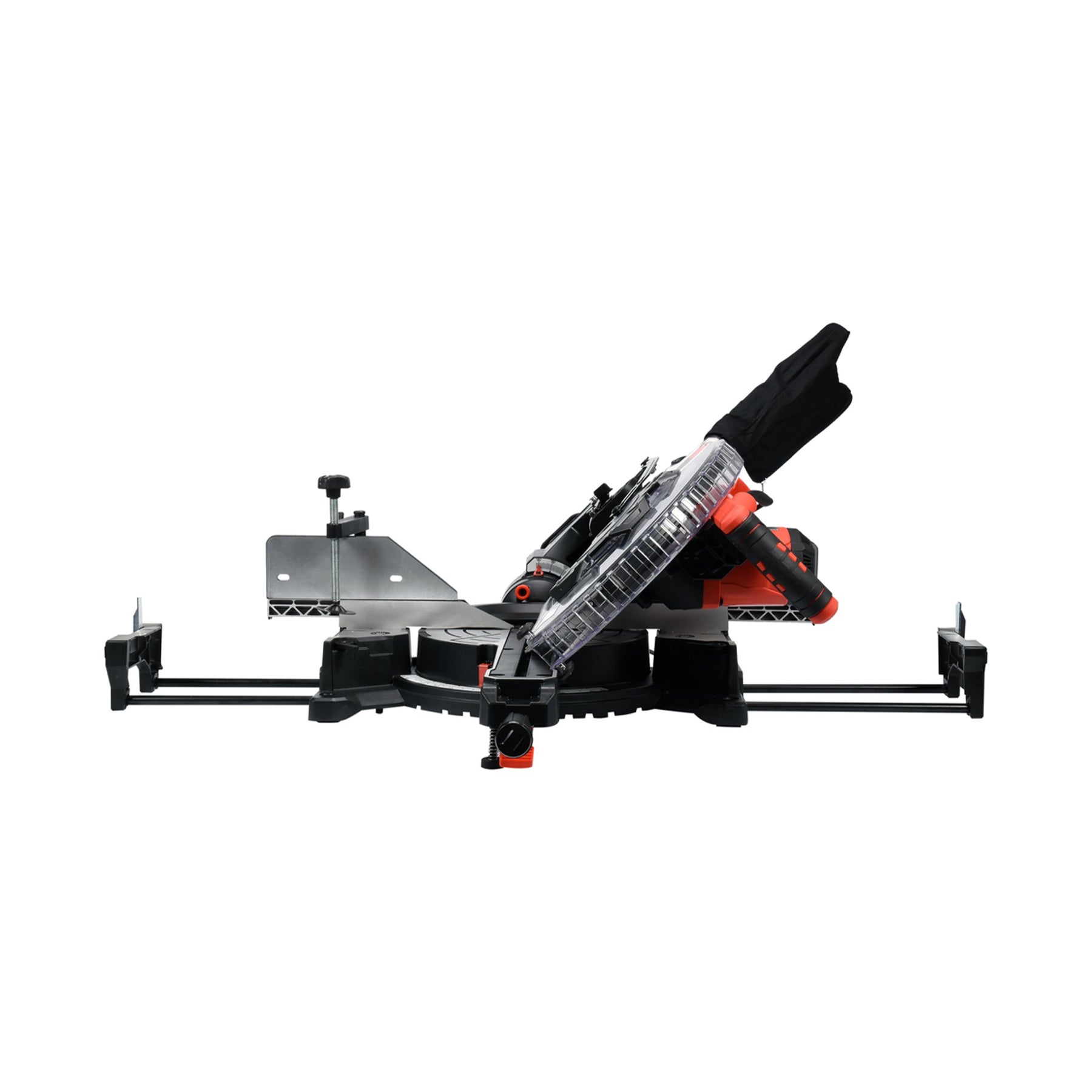

cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees. When setting the angle, you can use the scale marked on the base of the table
The cutter is equipped with a spigot that enables the connection of an attached bag or an external dust extraction system.
