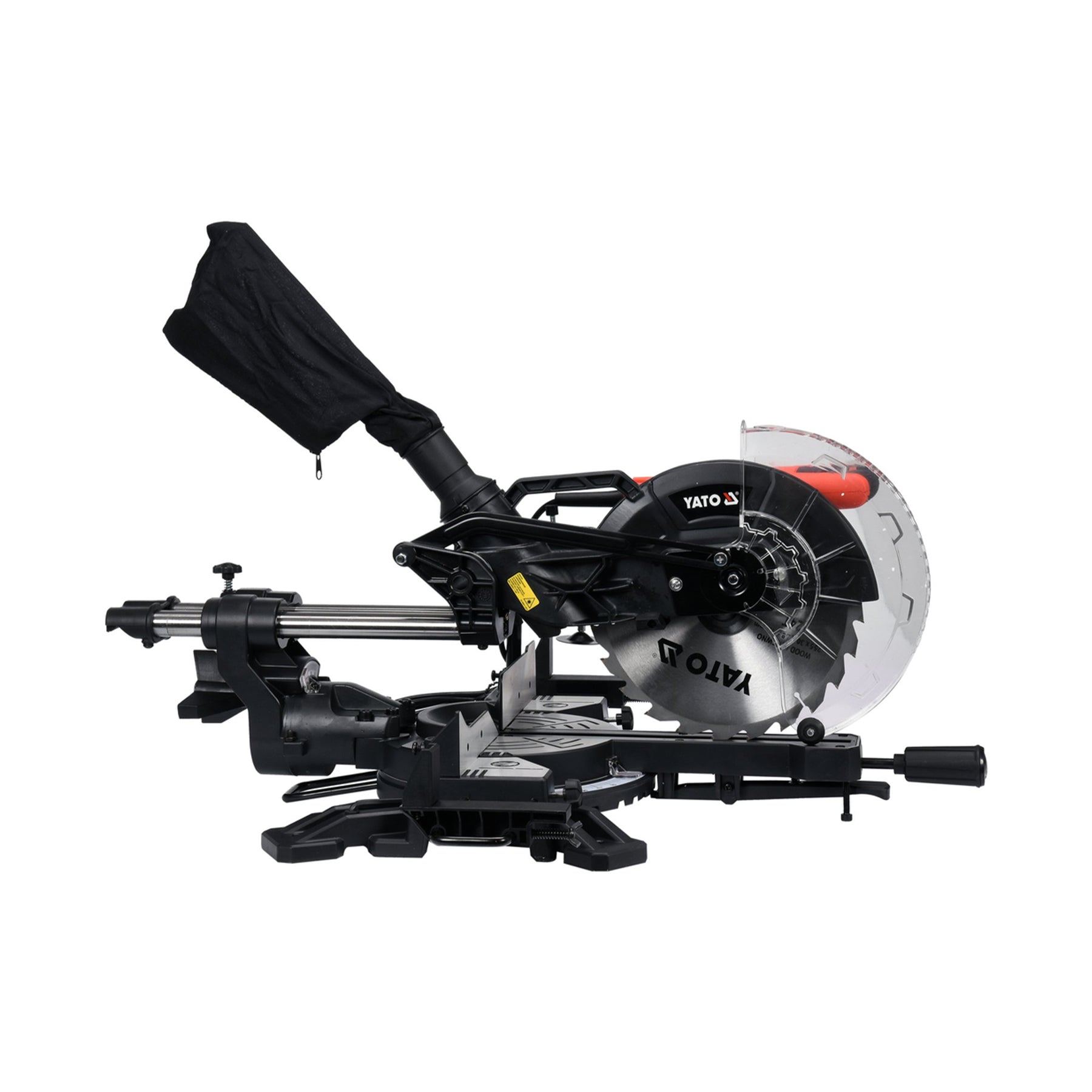

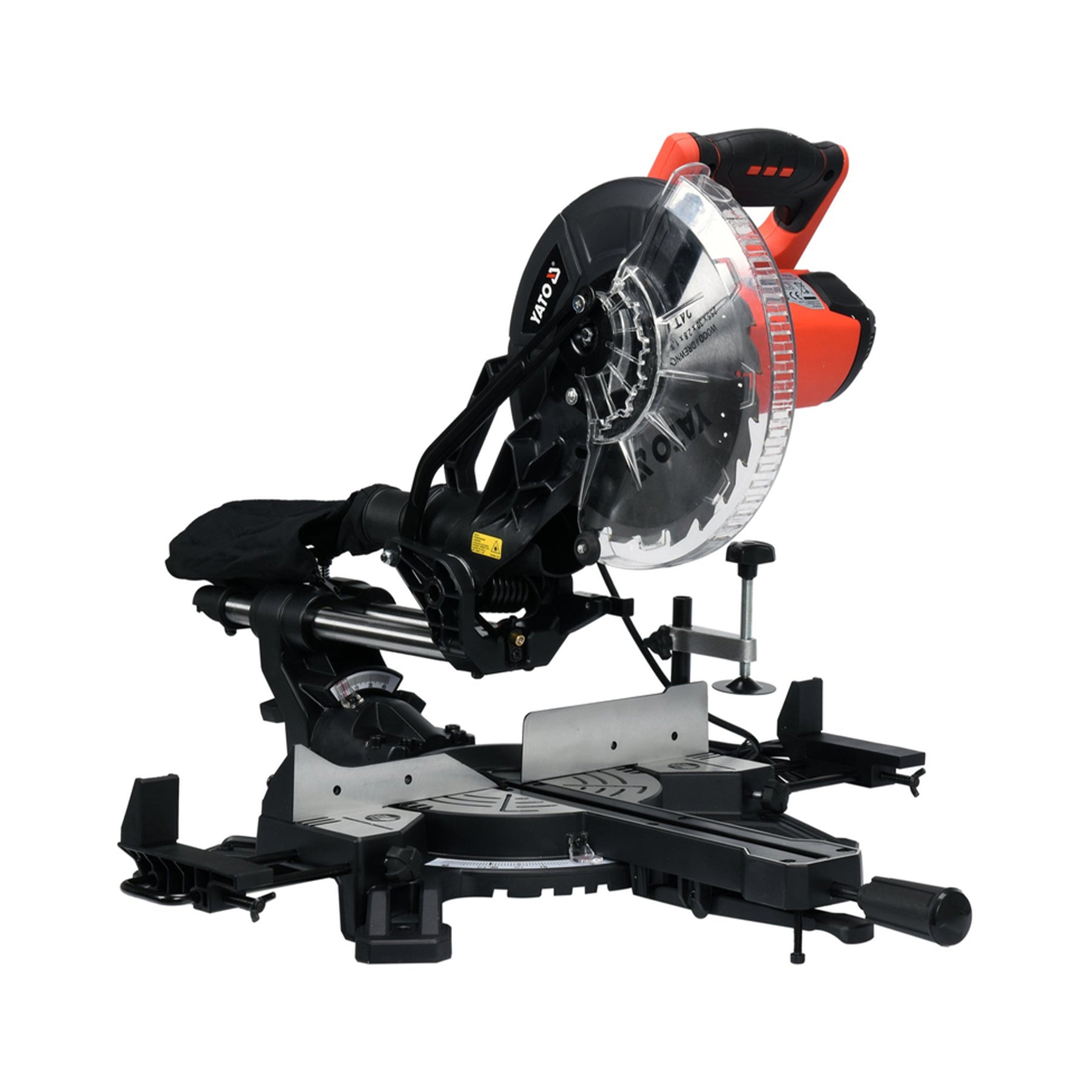

Yato Mitre Saw 255Mm 1800W With Laser YT-82173Bs

Bevel 255mm 1800w with laser for precision cutting of hardwood and laminates.

Professional bevel designed for cutting skirting boards, panels, soffit, parquet, skirting and PVC, cable trays, squared timbers, battens, etc.

It is a versatile tool designed for cutting through wood and wood-based materials. Provides precise and fast cutting through materials.

Thanks to its wide adjustability, straight and angled cutting is possible.

Features of Yato's mitre saw:

laser cutting line indicator
lateral supports for cutting elongated workpieces
stable and level base with precise vertical and horizontal cutting angle adjustment
bearing cutting blade feed
smoothly operating tiltable blade guard integrated into the switch<
clip integrated into the base allows safe and fast immobilization of the workpiece
built-in dust extraction system
compact dimensions and a transport handle in the center of the housing ensure proper balance and ease of carrying
disc mounting hole: 30 mm
included dust bag
Package contents:

bucket
dust collection bag
disc saw
.workbench extensions
workbench clamp
workbench locking screw
Parameters:

nominal voltage [V~]: 220 - 240
nominal power [W]: 1800
rated rpm [min-1]: 5000
disc saw blade: diam. Outer x clamping diameter x thickness max [mm]: 255 x 30 x 3.0
minimum workpiece dimensions: height x length x thickness [mm]: 20 x 200 x 20
maximum bevel cutting angle [deg.]: 45
insulation class: II
protection rating: IP20
weight [kg]: 15.2
Max height x max cutting length:

Horizontal rotation angle 0 st. / tilt angle 0 st. [mm]: 70 x 305
horizontal rotation angle 45 deg. / tilt angle 0 deg[mm]: 70 x 210
horizontal rotation angle 0 st; / tilt angle 45 st. [mm]: 35 x 305
horizontal rotation angle 45 st / tilt angle 45 st [mm]: 35 x 210
The bevel allows you to set two types of angles:

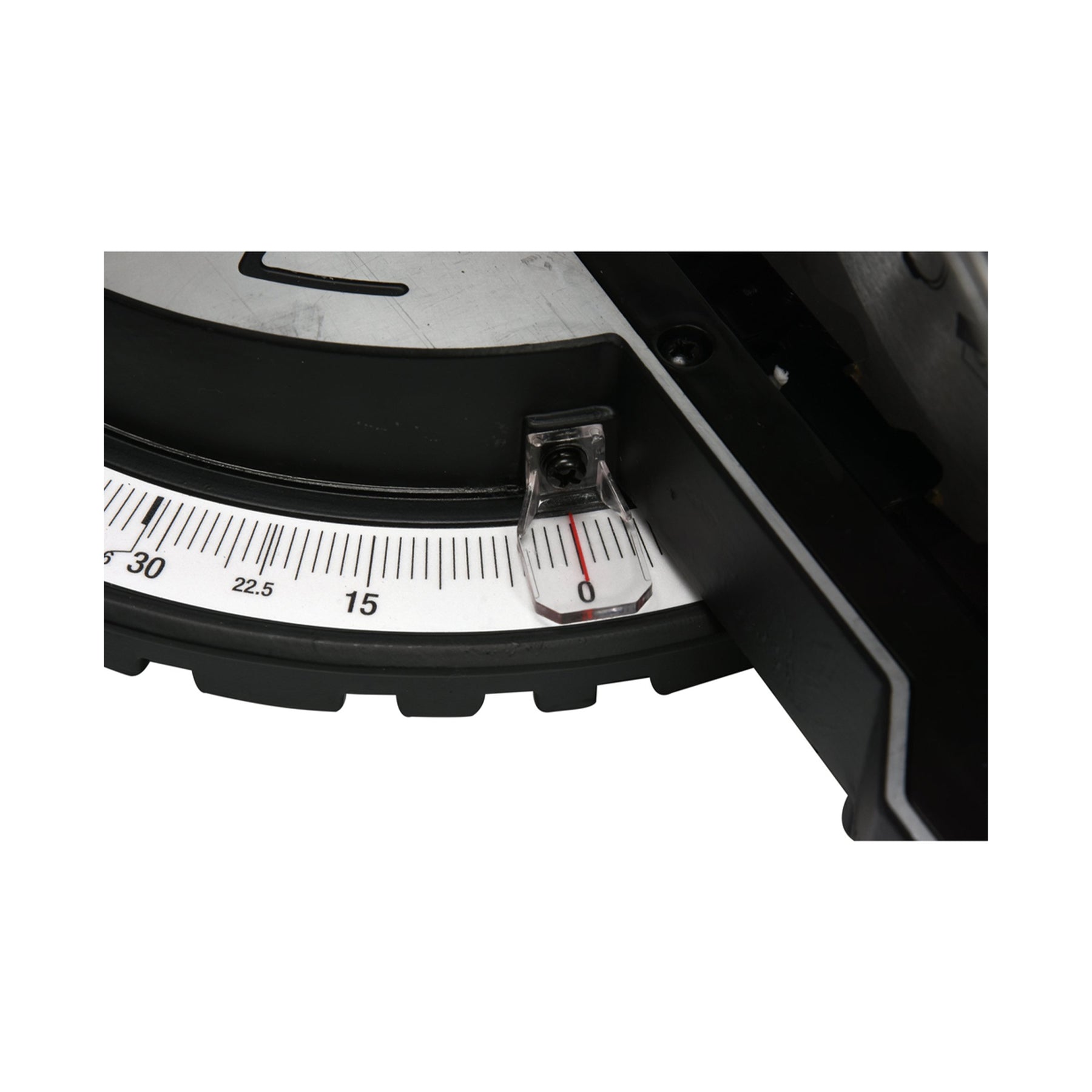

longitudinal cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the angle of the head, the bevel has a scale with a ratchet that allows easy setting of the head in the most common angles (0; 15; 22.5; 31.6; 45 degrees)

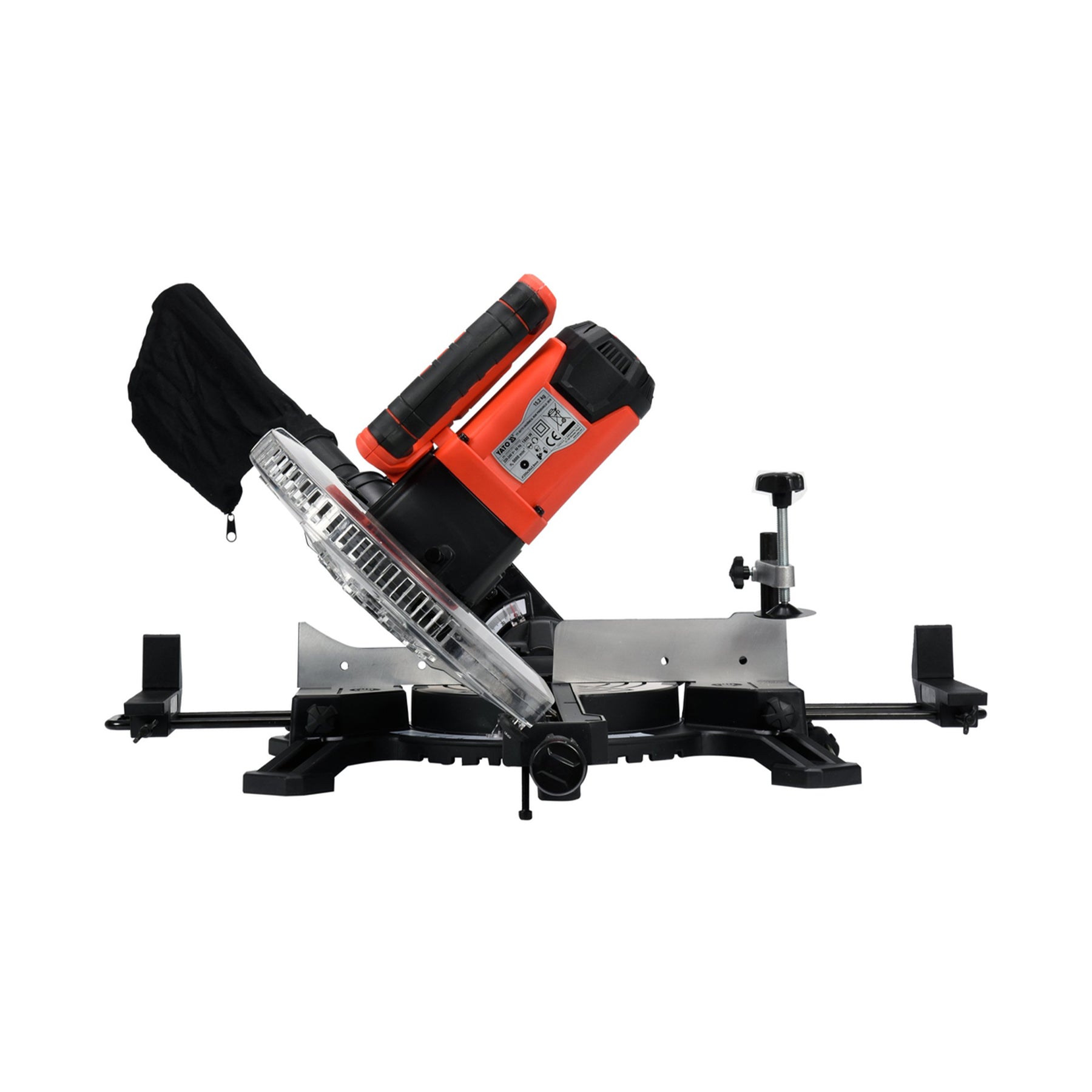

cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degrees. When setting the angle, you can use the scale marked on the base of the table
The bevel allows three types of cutting:

cut, in which the head will move down
cut, in which the lowered and locked head will move horizontally
plunge cut, where the head is lowered to a pre-set height, held in that position, and then moved horizontally
The cutter is equipped with a spigot that enables connection of an attached bag or external dust extraction system.
