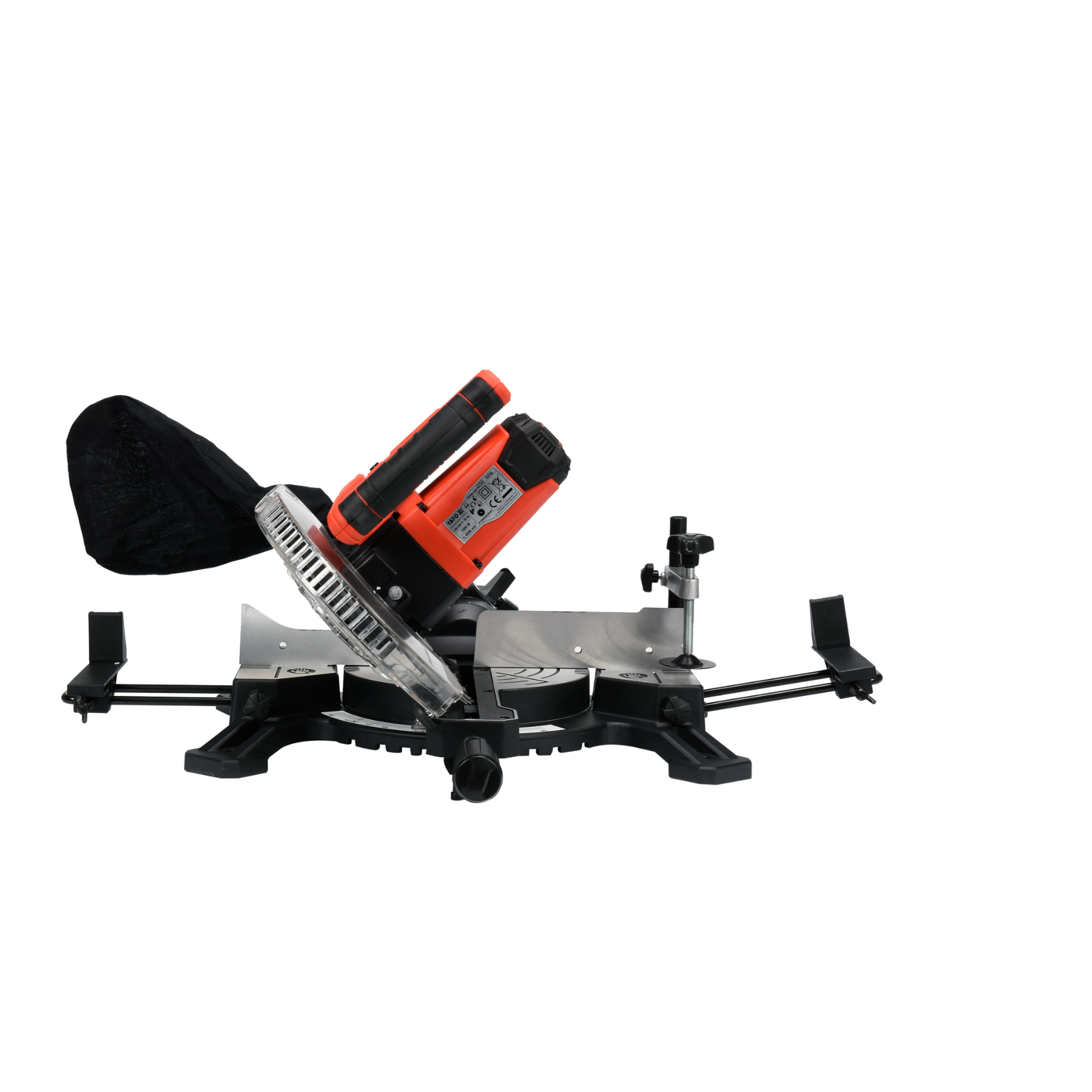

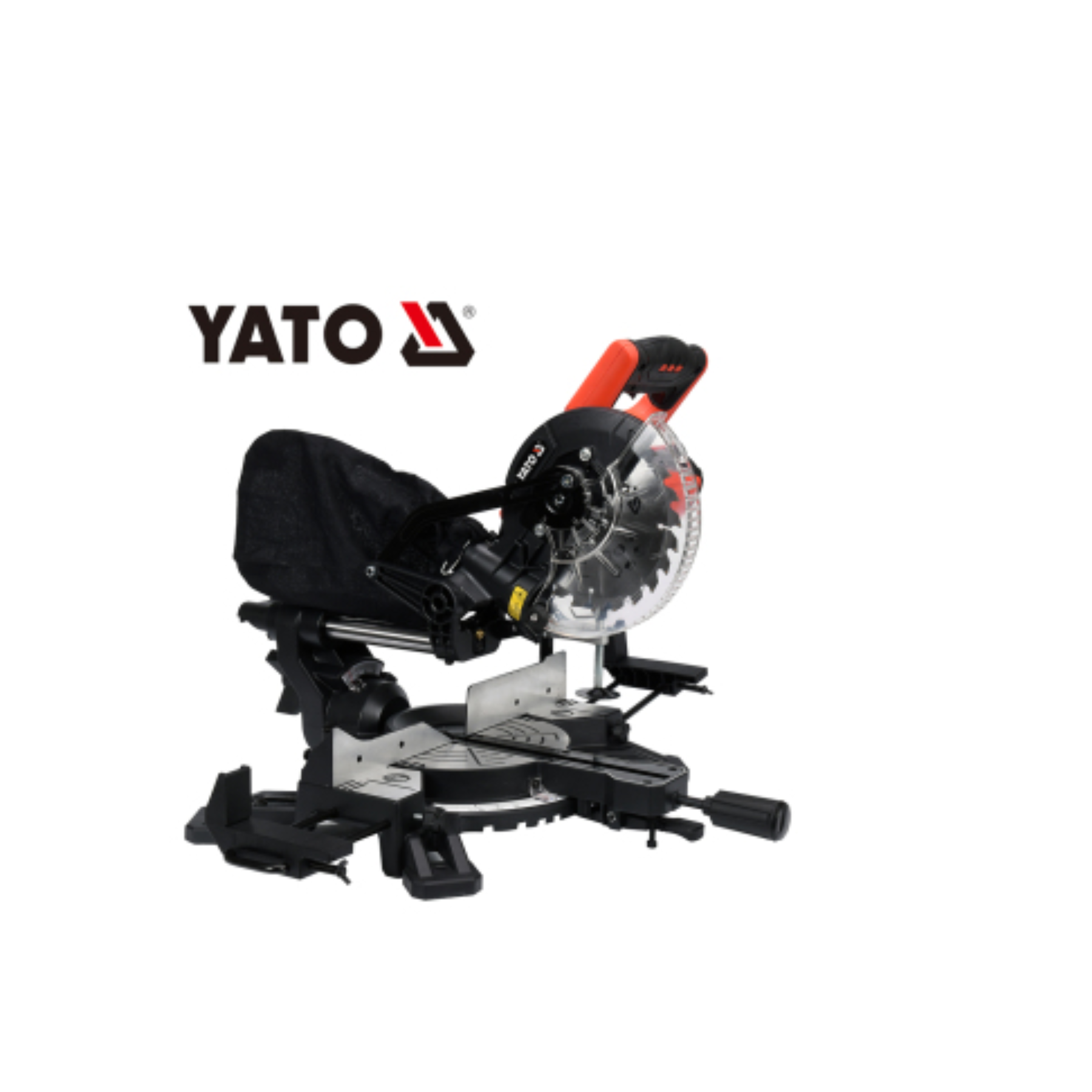

YATO Mitre Saw 185mm 1500w With Laser YT-82172Bs

Yato Mitre Saw 185mm 1500w With Laser YT-82172Bs is a sliding compound saw designed for accurate straight, mitre, bevel, and plunge cuts. Its laser guide helps align the blade with the cutting mark, while the sliding head provides a maximum cutting length of 210 mm. Side extensions and an integrated clamp support long workpieces during cutting. The compact body, central carrying handle, blade guard, and dust collection system make it suitable for workshops and job sites.

Key Features

• Laser indicator shows the cutting line.
• Sliding head supports cuts up to 210 mm long.
• Adjustable mitre angle from -45° to +45°.
• Cutting head tilts up to 45° for bevel cuts.
• Side extensions support long materials.
• Integrated clamp secures the workpiece.
• Pivoting blade guard improves operational safety.
• Dust outlet accepts the supplied bag or an external extractor.

Specifications

• Brand: YATO
• Model: YT-82172BS / YT-82172
• Product Type: Sliding Compound Mitre Saw
• Power: 1500 W
• Voltage: 220–240 V AC
• Frequency: 50 Hz
• No-Load Speed: 4,500 rpm
• Blade Diameter: 185 mm
• Blade Bore: 30 mm
• Maximum Blade Thickness: 3 mm
• Blade Teeth: 24
• Mitre Range: -45° to +45°
• Mitre Stops: 0°, 15°, 22.5°, 31.6° and 45°
• Maximum Bevel Angle: 45°
• Cutting Capacity at 0° Mitre/0° Bevel: 60 × 210 mm
• Cutting Capacity at 45° Mitre/0° Bevel: 60 × 145 mm
• Cutting Capacity at 0° Mitre/45° Bevel: 38 × 210 mm
• Cutting Capacity at 45° Mitre/45° Bevel: 38 × 145 mm
• Laser: Red Class 2, 650 nm, below 1 mW
• Cable Length: 3 m
• Weight: 9.8 kg
• Protection Rating: IP20
• Electrical Insulation Class: Class II
• Suitable Materials: Wood, panels, laminates and plastics
• EAN: 5906083047268

Applications

• Cutting wooden boards and panels
• Trimming skirting boards
• Installing laminate and parquet flooring
• Cutting battens and squared timber
• Preparing PVC profiles
• Cutting cable trays
• Soffit installation work
• Furniture and interior finishing

Benefits

• Laser guide makes cut alignment easier.
• Sliding action increases crosscut capacity.
• Adjustable angles support varied installation tasks.
• Workpiece clamp improves stability during operation.
• Side supports help control long materials.
• Dust extraction helps maintain a cleaner workspace.

Package Contents

• 1 × YATO mitre saw YT-82172BS
• 1 × 185 mm, 24-tooth saw blade
• 1 × Dust collection bag
• 2 × Worktable extensions
• 1 × Worktable clamp
• 1 × Worktable locking screw
