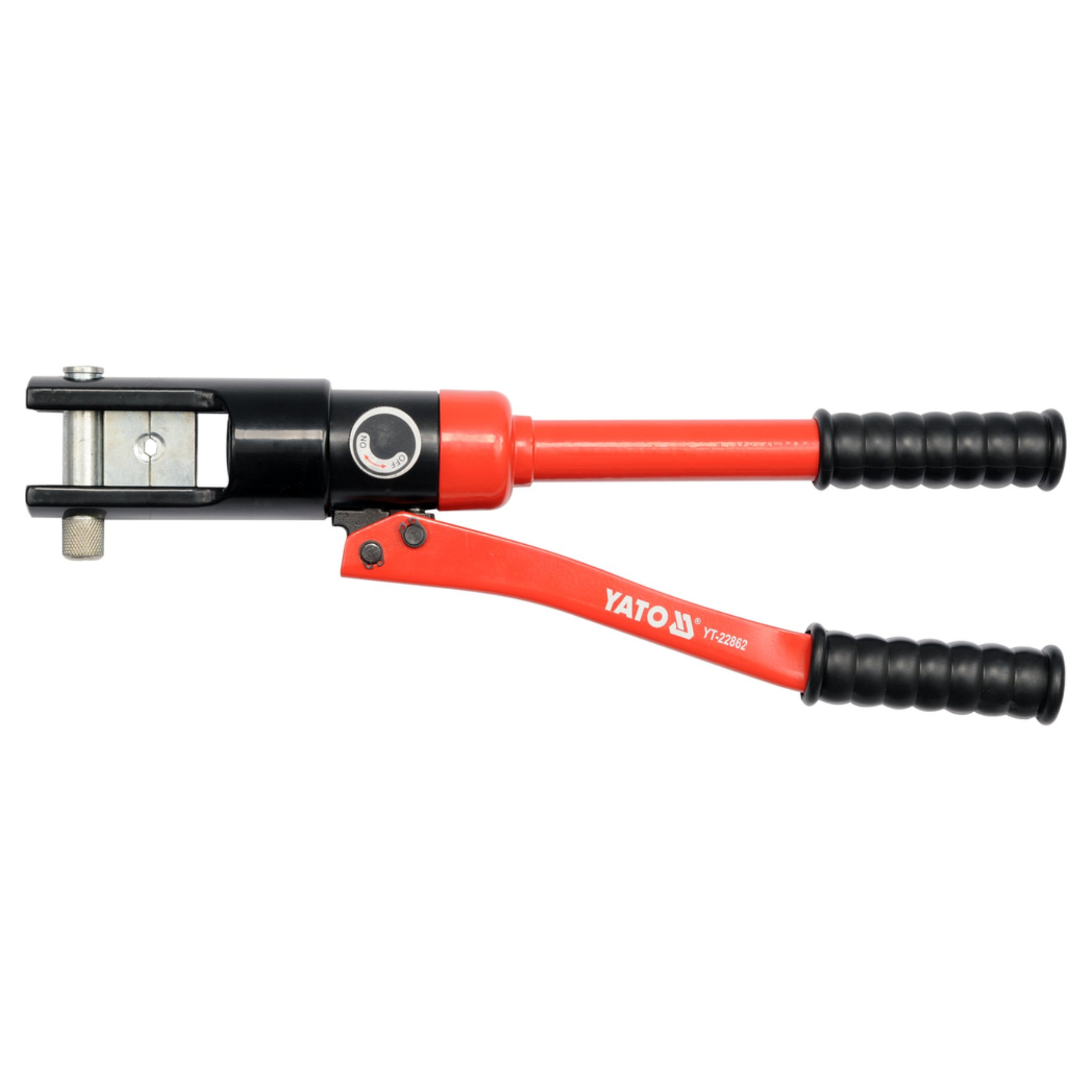

Yato Hydraulic Pliers 16-300mm2 YT-22862
Couldn't load pickup availability
Yato Hydraulic Pliers 16-300mm2 YT-22862 is made for crimping large cable terminals and securing steel ropes with less manual effort. Its hydraulic system provides 18–20 tonnes of crimping force for firm and even connections. The rotating head makes it easier to work in narrow areas, while the locking pin keeps the selected dies securely in place. With 11 die sizes, it supports copper cables up to 300mm² and aluminium cables up to 240mm².
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-22862 |
| Product Type | Manual Hydraulic Crimping Pliers |
| Copper Crimping Range | 16–300mm² |
| Aluminium Crimping Range | 16–240mm² |
| Crimping Force | 18–20 Tonnes |
| Tool Length | 470mm |
| Head Type | Rotating |
| Die Sizes | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm² |
| Number of Dies | 11 |
| EAN | 5906083228629 |
Key Features
- Provides 18–20 tonnes of hydraulic crimping force
- Crimps copper cable terminals from 16–300mm²
- Crimps aluminium cable terminals from 16–240mm²
- Includes 11 dies for different cable sizes
- Rotating head supports work in narrow spaces
- Die-locking pin keeps the selected dies secure
- Long handles reduce the effort needed during crimping
- Suitable for cable terminals and steel ropes
Applications
Suitable for crimping copper and aluminium cable terminals in electrical installations, control panels, industrial equipment, vehicle wiring and power cable work. It can also be used for securing suitable steel ropes.
Package Contents
- 1 × Yato Hydraulic Pliers YT-22862
- 11 × Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²
Safety Note
Wear suitable hand and eye protection during use. Select the correct die for the cable and terminal size, keep fingers away from the crimping head and release hydraulic pressure after completing the job.
