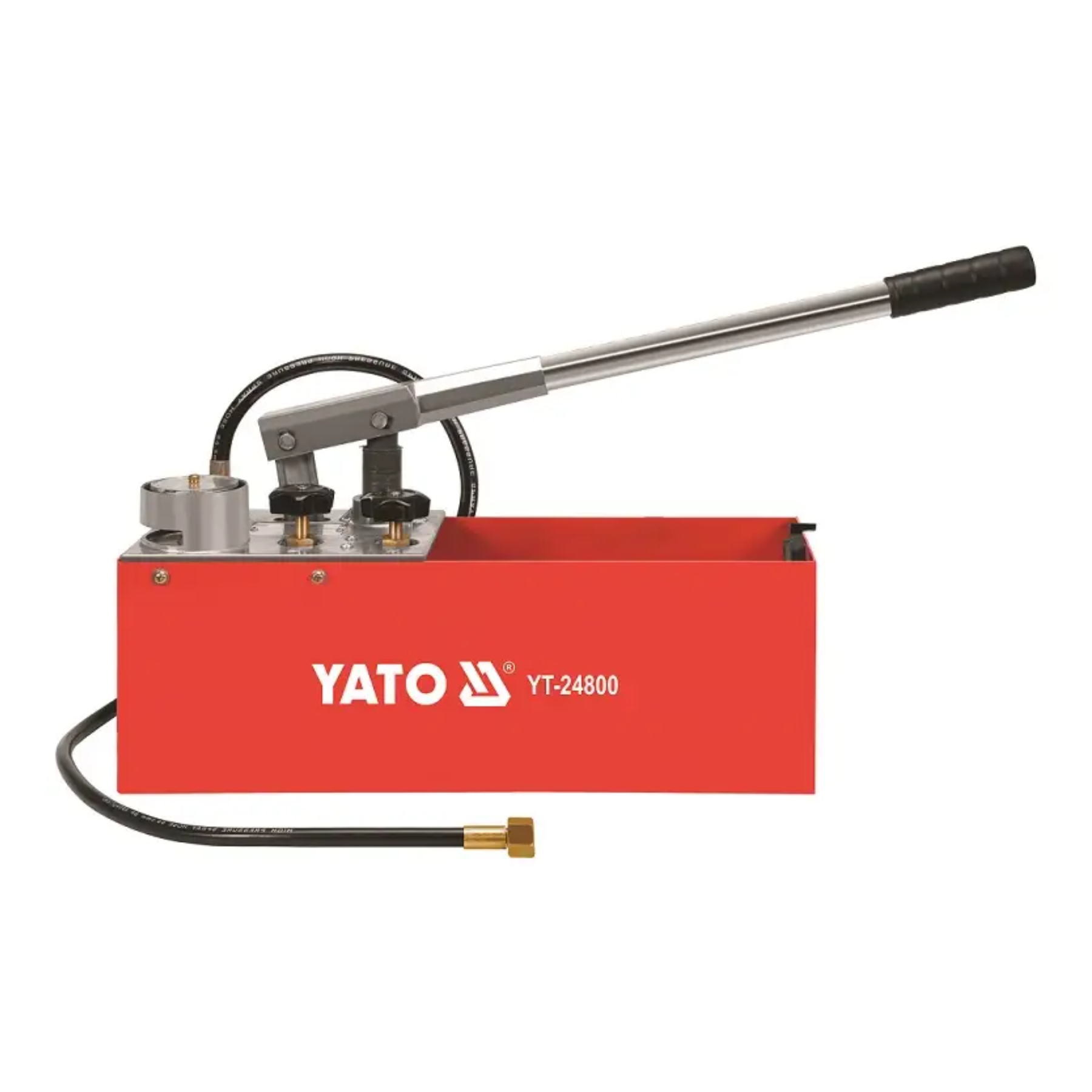

Red YATO YT-24800 hand pump on a white background
Red YATO YT-24800 hand pump on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

YATO Hand Test Pump YT-24800

35.000 KWD
In stock

YATO Hand Test Pump YT-24800 is a manual testing tool used to check the tightness of water, heating, compressed-air, and oil pipe systems. It reaches 5 MPa or 50 bar and uses a 12 L powder-coated steel tank, aluminium pump body, and chrome-plated handle. A pressure gauge, control valves, and G1/2 connection help users build, monitor, and release pressure during testing. It works with clean water or a water-glycol solution up to 50°C and can also fill solar systems.

Key Features

  • Maximum testing pressure of 50 bar.
  • Large 12 L liquid tank.
  • Output of approximately 45 ml per stroke.
  • Integrated pressure gauge for clear readings.
  • Valve for controlled pressure release.
  • Powder-coated 2 mm steel tank.
  • Aluminium pump body with chrome-plated handle.
  • G1/2 female connection thread.

Specifications

  • Brand: YATO
  • Model: YT-24800
  • Product Type: Manual Hydrostatic Test Pump
  • Maximum Pressure: 5 MPa / 50 bar / 725 psi
  • Tank Capacity: 12 L
  • Tank Material: 2 mm Powder-Coated Steel
  • Pump Body Material: Aluminium
  • Handle Finish: Chrome-Plated
  • Output per Stroke: Approximately 45 ml
  • Connector Size: G1/2 Female Thread
  • Compatible Fluids: Clean Water or Water-Glycol Solution
  • Maximum Fluid Temperature: 50°C
  • Dimensions: 490 × 160 × 165 mm
  • Operation: Manual
  • Product Code: 5906083064937

Applications

  • Testing water pipe systems
  • Checking central heating installations
  • Testing compressed-air pipework
  • Checking oil installation pipes
  • Detecting leaks in plumbing systems
  • Filling solar heating systems
  • Adding glycol solution to heating systems
  • Testing new pipe installations

Benefits

  • Produces testing pressure without electrical power.
  • Gauge allows easy pressure monitoring.
  • Large tank reduces frequent refilling.
  • Pressure valve supports controlled release.
  • Steel tank provides stable operation.
  • Manual design is suitable for on-site testing.

Package Contents

  • 1 × YATO Hand Test Pump YT-24800
  • 1 × 12 L Steel Tank
  • 1 × Pressure Gauge
  • 1 × Connecting Hose with G1/2 Fitting
  • 1 × Pump Handle
