Home » YATO Digital Multimeter True Rms YT-73089

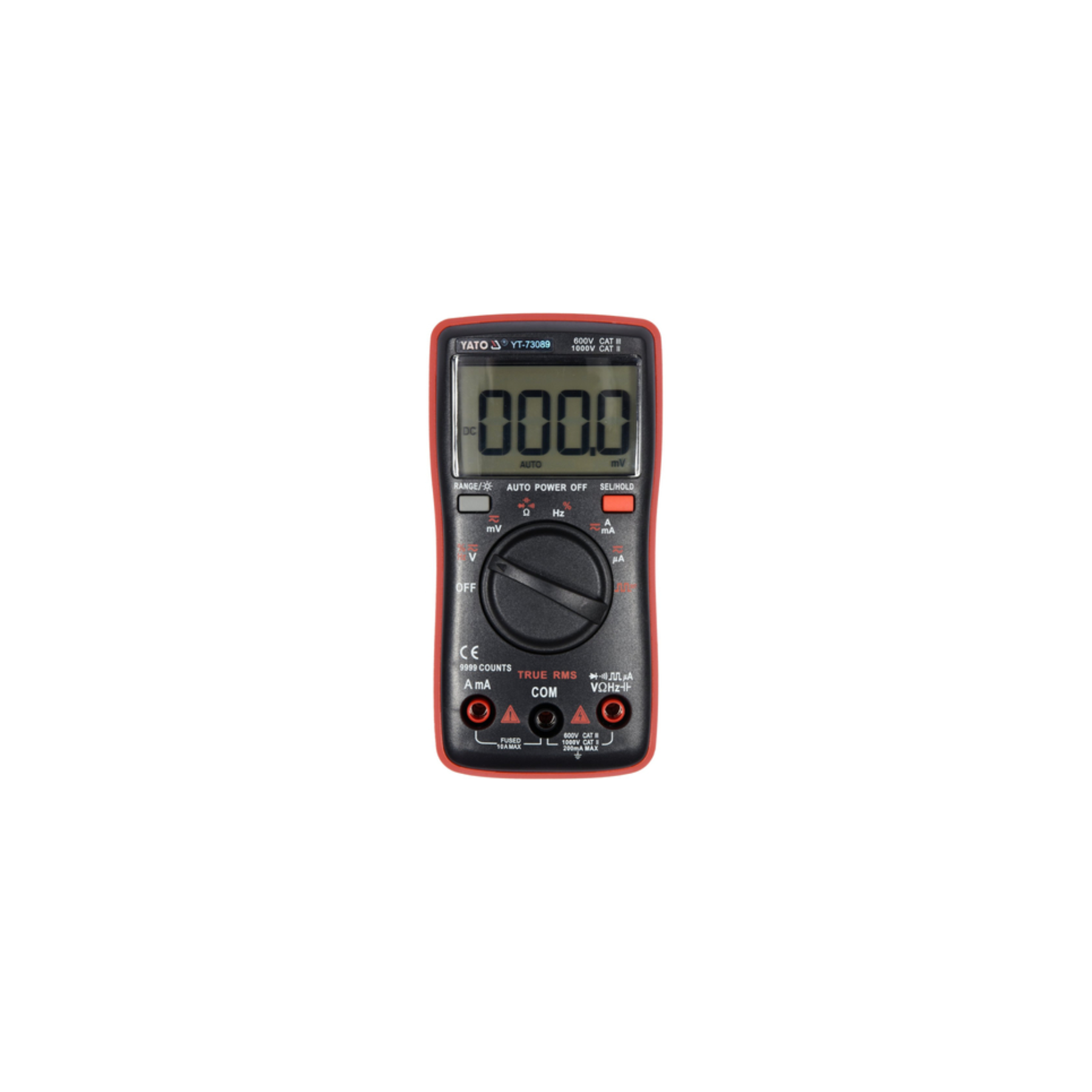

Digital multimeter on a white background

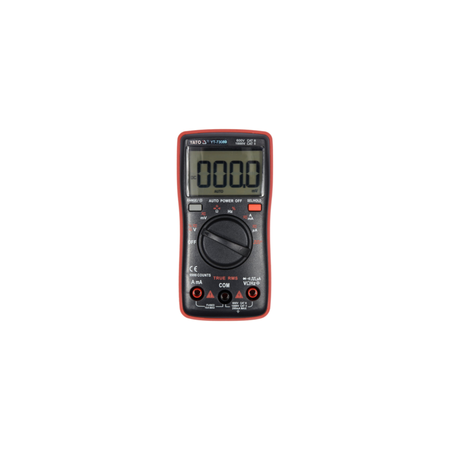

Digital multimeter on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

YATO Digital Multimeter True Rms YT-73089

SKU: HMT-14097
15.000 KD
In stock

YATO Digital Multimeter True RMS YT-73089 is a compact electrical measuring tool for checking AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle. True RMS technology supports accurate AC readings, while automatic range selection makes the meter easier to use. It also includes diode testing, an audible continuity test, data hold, and a square-wave signal generator. The backlit LCD shows up to 9,999 counts, and the meter automatically switches off after 15 minutes of inactivity. It is suitable for electricians, technicians, HVAC servicing, electronic repairs, and general electrical checks.

Specifications

Specification Details
Brand YATO
Model YT-73089
Product Type Digital Multimeter
Measurement Method True RMS
Display Backlit LCD
Maximum Display Count 9,999
DC Voltage Range 0–999.9V
AC Voltage Range 0–750V
DC Current Range 0–9.999A
AC Current Range 0–9.999A
Resistance Range 0–9.999MΩ
Capacitance Range 0–9.999mF
Frequency Range 0–9.999MHz
Duty Cycle Range 1–99%
Continuity Test 0–50Ω with Audible Signal
Diode Test Yes
Signal Generator Square Wave, 50–5,000Hz
Range Selection Automatic and Manual
Data Hold Yes
Automatic Power-Off After 15 Minutes
Safety Category CAT III 600V
Body Material ABS
Power Supply 2 × 1.5V AAA Batteries
Dimensions 130 × 65 × 32 mm
Weight 114 g
EAN 5906083072833

Key Features

  • True RMS measurement for AC voltage and current.
  • Measures several common electrical values.
  • Automatic and manual range selection.
  • Clear LCD with screen lighting.
  • Data hold keeps the current reading on screen.
  • Audible continuity test checks electrical connections.
  • Built-in square-wave signal generator.
  • Low-battery warning and automatic power-off.

Applications

  • Electrical installation checks
  • Home and commercial maintenance
  • Vehicle electrical testing
  • Electronic equipment repair
  • HVAC sensor testing
  • Audio equipment checks
  • Appliance servicing
  • Workshop electrical work

Benefits

  • One meter handles several electrical tests.
  • True RMS supports steady AC readings.
  • Compact size is easy to carry.
  • Screen lighting helps in dark working areas.
  • Automatic range selection saves setup time.
  • Overload protection supports safer operation.

Package Contents

  • 1 × YATO Digital Multimeter True RMS YT-73089
  • 2 × Measuring Probes
  • 2 × AAA Batteries
  • 1 × Storage Case
  • 1 × User Manual
