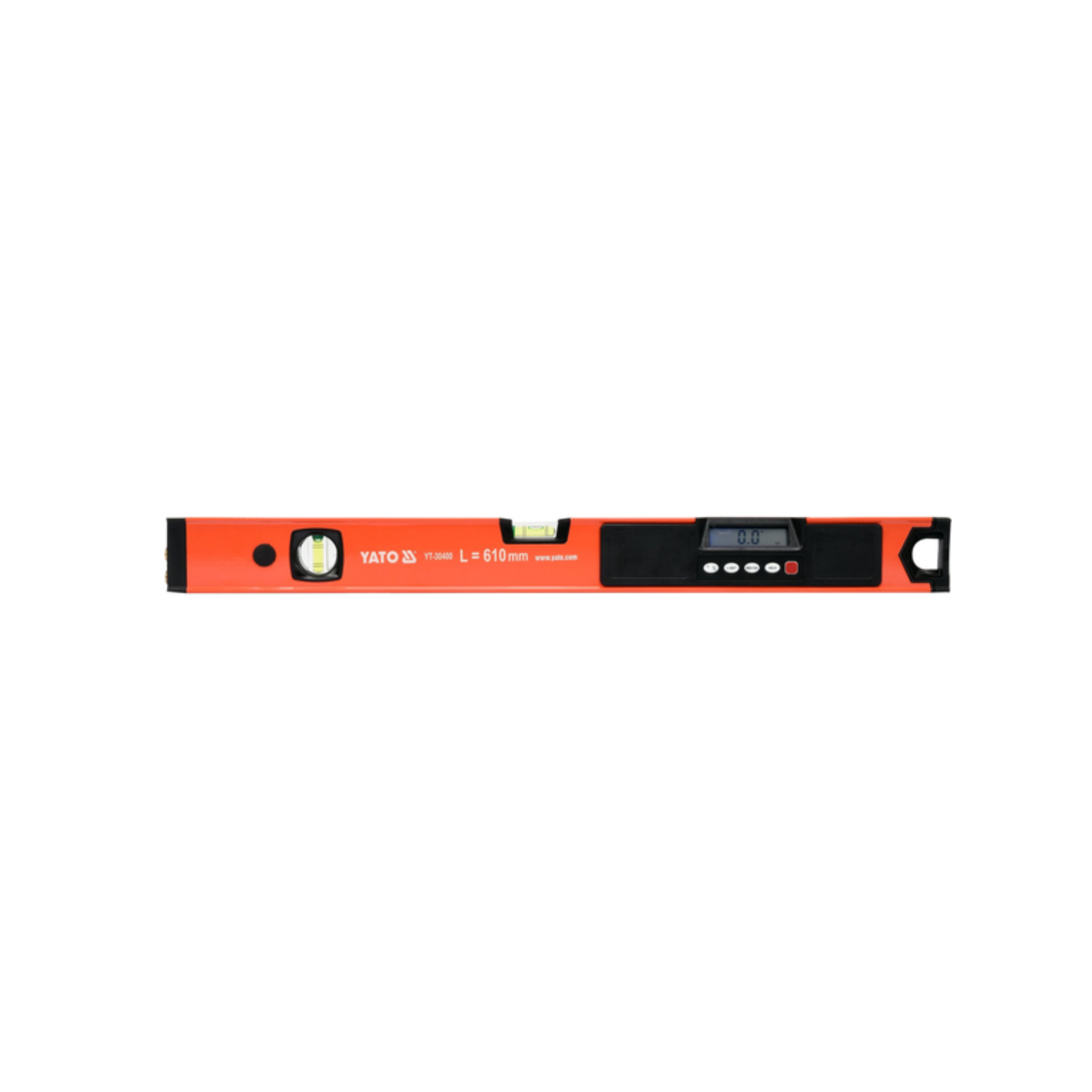

Digital level with red and black design on a white background
Digital level with red and black design on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

YATO Digital Level With Laser L-610mm YT-30400

SKU: HMT-14750
40.000 KD
In stock

YATO Digital Level With Laser L-610mm YT-30400 is designed for checking levels, vertical lines, slopes, and angles during building, fitting, and installation work. It measures angles across a full 360° range and shows the result on a backlit LCD screen. The built-in red laser can transfer points and lines across distances of up to 20 metres. Two standard vials also allow normal level checking, while an audible signal confirms when the tool reaches 0°, 45°, or 90°. Its 610 mm aluminium body provides a steady measuring surface for regular site and workshop use.

Specifications

Specification Details
Brand YATO
Model YT-30400
Product Type Digital Level With Laser
Length 610 mm
Angle Measurement Range 360° / 4 × 90°
Angle Accuracy at 0° and 90° ±0.1°
Angle Accuracy from 1° to 89° ±0.2°
Laser Working Distance Up to 20 m
Laser Accuracy ±3 mm at 10 m
Laser Class Class 2
Laser Colour Red
Laser Wavelength 630–670 nm
Laser Power Below 1 mW
Display Backlit LCD
Number of Vials 2
Bottom Level Accuracy 0.5 mm/m
Top Level Accuracy 0.75 mm/m
Audible Angle Alert 0°, 45° and 90°
Body Material Aluminium
Surface Finish Powder-Coated
Power Supply 2 × 1.5V AAA Batteries
Working Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
EAN 5906083007842

Key Features

  • Measures angles across a full 360° range.
  • Built-in laser works at distances up to 20 metres.
  • Backlit LCD provides clear digital readings.
  • Saves measurements in the device memory.
  • Audible alert confirms common angle positions.
  • Projects a point, straight line, or crossed lines.
  • Two vials support traditional level checking.
  • Aluminium body measures 610 mm in length.

Applications

  • Checking horizontal and vertical surfaces
  • Measuring slopes and angles
  • Installing cabinets and shelves
  • Fitting doors and windows
  • Tiling and flooring work
  • Wall and partition installation
  • Construction and renovation
  • Transferring level marks between surfaces

Benefits

  • Digital display allows quick angle checking.
  • Laser transfers measurements over longer distances.
  • Memory function helps keep selected readings.
  • Sound alert allows easier work without watching the screen.
  • Two vials provide another way to confirm alignment.
  • Long body supports steady measurements on larger surfaces.

Package Contents

  • 1 × YATO Digital Level With Laser L-610mm YT-30400

Safety Note

The YATO YT-30400 uses a Class 2 laser. Do not look directly into the laser beam or point it towards another person’s eyes.
