Yato Digital Battery Tester 12v YT-8311
Couldn't load pickup availability

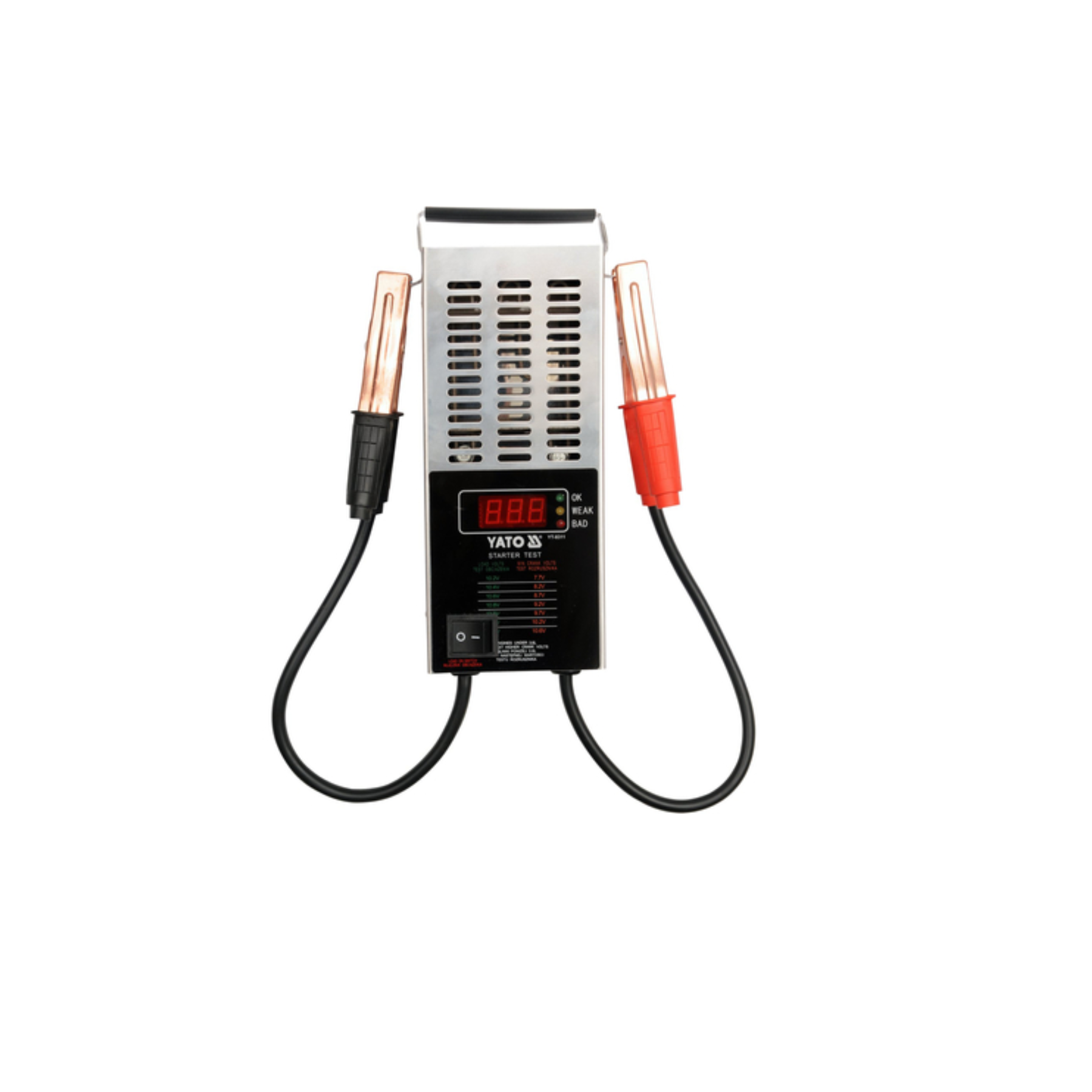

YATO Digital Battery Tester 12V YT-8311 is designed for checking the charge level, wear condition, voltage, and load performance of 12V lead-acid vehicle batteries. It measures battery voltage from 8.5V to 25V DC and supports CCA ratings from 150A to 1400A. The digital LED display shows the voltage reading, while separate LED lights help users understand the battery condition. The tester draws power directly from the connected battery, so no separate battery or external supply is needed. It is suitable for garages, vehicle service centres, workshops, and home car maintenance.
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Model | YT-8311 |
| Product Type | Digital Battery Tester |
| Operating Voltage | 12V DC |
| Voltage Measurement Range | 8.5–25V DC |
| CCA Measurement Range | 150–1400A |
| Load Test Current | 100A |
| Load Test Timing | 10-Second Test / 5-Minute Interval |
| Supported Battery Type | Lead-Acid Battery |
| Voltage Display | Digital LED |
| Battery Status Lights | Yes |
| External Power Required | No |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | 0°C to 55°C |
| Weight | 1 kg |
| EAN | 5906083983115 |
Key Features
- Checks the charge level of 12V batteries.
- Helps show battery wear and general condition.
- Tests battery performance under a 100A load.
- Measures CCA ratings from 150A to 1400A.
- Digital LED display provides clear voltage readings.
- LED lights help show the battery test result.
- Takes its operating power from the connected battery.
- Suitable for common lead-acid vehicle batteries.
Applications
- Testing car batteries
- Checking van and light commercial vehicle batteries
- Vehicle servicing and fault checks
- Battery checks before long journeys
- Garage and workshop maintenance
- Checking stored vehicle batteries
- Used-car battery inspection
- Home vehicle maintenance
Benefits
- Shows whether the battery needs charging or checking.
- Load testing gives a clearer view of battery performance.
- Wide CCA range supports many vehicle battery sizes.
- Digital display makes voltage readings easy to see.
- No separate batteries or electrical supply are required.
- Compact design allows easy carrying and storage.
Package Contents
- 1 × YATO Digital Battery Tester 12V YT-8311
- 1 × User Manual
- 1 × Warranty Card
Important Note
This tester is designed for 12V lead-acid batteries. Connect the red clamp to the positive terminal and the black clamp to the negative terminal. Follow the recommended testing and cooling times during load testing.
