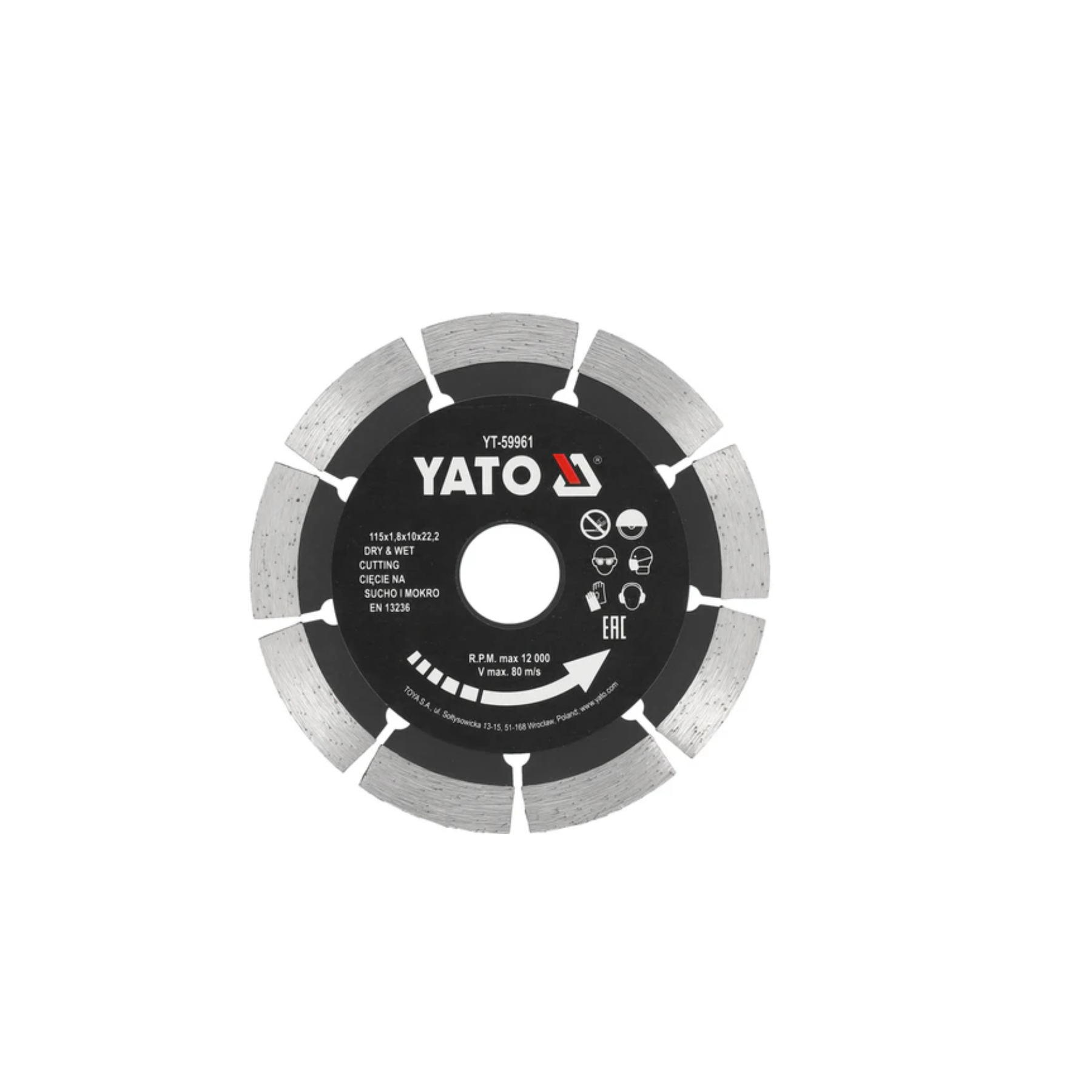

Yato diamond cutting disc on a white background
Yato diamond cutting disc on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Yato Diamond Blade Segmented

SKU: HMT-15783
1.500 KD
In stock
SIZE

YATO Segmented Diamond Blade is designed for cutting concrete, brick, granite, stone, masonry, and other building materials. Its segmented diamond edge supports fast cutting and helps release heat and dust during use. Selected models are suitable for dry cutting, while the GRD models can be used for dry or wet work. Available in sizes from 100 mm to 230 mm for compatible angle grinders.

Specifications

Specification Details
Brand YATO
Product Type Segmented Diamond Cutting Blade
Available Diameters 100–230 mm
Blade Body Material Steel
Cutting Edge Diamond Segments
Mounting Hole 16 mm or 22.2 mm
Maximum Linear Speed Up to 80 m/s
Cutting Method Dry or Dry/Wet, depending on model
Compatible Tool Suitable Angle Grinder
Suitable Materials Concrete, Brick, Granite, Stone and Masonry
Quantity 1 Piece per Selected Size

Available Sizes and Models

Listed Size Blade Diameter Bore Segment Size YATO Model
HS 100 mm 100 mm 16 mm 2.7 × 8 mm YT-60009
115 mm 115 mm 22.2 mm 1.8 × 10 mm YT-59961
HS 230 mm 230 mm 22.2 mm 2.7 × 8 mm YT-6005
4.5″ 110 mm 22.2 mm 1.8 × 8 mm YT-6001
9″ 230 mm 22.2 mm 2.2 × 10 mm YT-59965

Key Features

  • Segmented diamond edge supports fast cutting.
  • Open spaces between segments help reduce heat.
  • Suitable for hard construction materials.
  • Steel body provides stable operation.
  • Different sizes are available for small and large grinders.
  • Selected GRD models support dry and wet cutting.
  • Suitable for construction, renovation, and masonry work.
  • Helps make controlled cuts with less edge damage.

Applications

  • Cutting concrete blocks
  • Cutting bricks and silicate blocks
  • Cutting granite and natural stone
  • Masonry and wall cutting
  • Construction and renovation work
  • Cutting paving stones
  • Creating openings in building materials
  • General site and workshop jobs

Package Contents

  • 1 × YATO Segmented Diamond Blade in the selected size

Safety Note

Wear safety glasses, hearing protection, and a suitable dust mask. Make sure the blade diameter, bore, and maximum speed match the angle grinder. Use the grinder guard and never use a damaged or cracked blade.
