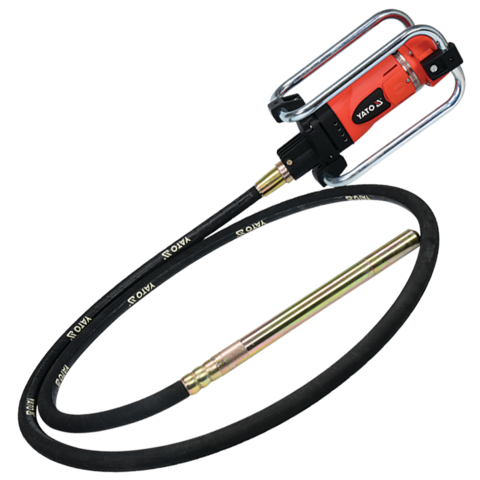

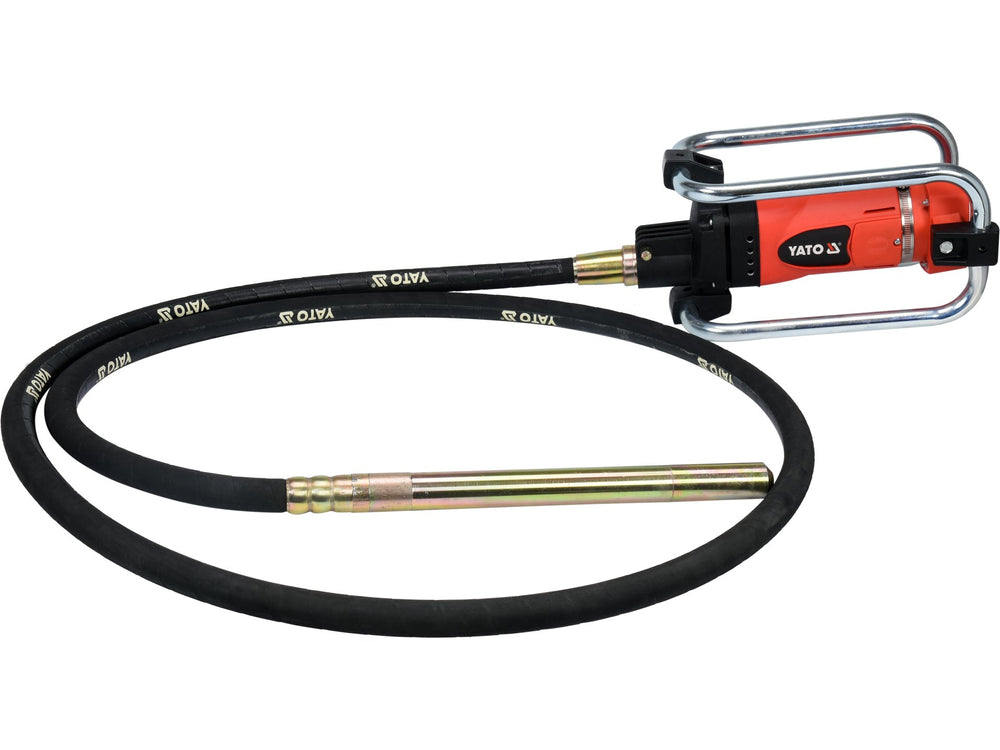

Yato Concrete Vibrator 2300w + Poker 4mtr YT-82601Bs
Couldn't load pickup availability
YATO Concrete Vibrator 2300W with 4m Poker YT-82601BS is designed for compacting fresh concrete in columns, foundations, slabs, beams, and precast elements. Its high-frequency vibration removes trapped air and helps create smooth, even, and stronger concrete. The lightweight, shock-resistant body offers easier handling, while overload protection supports safer operation.
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Model | YT-82601BS |
| Official Symbol | YT-82601 |
| Product Type | Electric Concrete Vibrator Set |
| Power | 2300W |
| Voltage | 230V AC |
| Frequency | 50Hz |
| Speed | 4,000 rpm |
| Flexible Shaft Length | 4m |
| Poker Diameter | 35mm |
| Weight | 6.6kg |
| Protection Rating | IP20 |
| Insulation Class | Class I |
| Sound Pressure | Below 70 dB(A) |
| Sound Power | Below 85 dB(A) |
| Vibration Level | Below 2.5 m/s² |
| Compatible Replacement Shaft | YT-82596 |
| Main Use | Compacting Fresh Concrete |
Key Features
- 2300W motor supports demanding concrete work.
- High-frequency vibration removes trapped air bubbles.
- Helps create smooth and evenly compacted concrete.
- 4m flexible shaft reaches deep and tall concrete sections.
- 35mm poker suits columns, foundations, beams, and slabs.
- Shock-resistant construction supports regular site use.
- Lightweight design makes handling and movement easier.
- Overload protection helps protect the machine and operator.
Applications
- Compacting concrete foundations
- Vibrating columns and beams
- Concrete floor and slab work
- Reinforced concrete construction
- Precast concrete production
- Wall and formwork filling
- Removing air pockets from fresh concrete
- General construction projects
Benefits
- Helps improve concrete strength and structure.
- Reduces air pockets and surface holes.
- Supports proper concrete flow around reinforcement.
- Long shaft reaches concrete sections up to 3–4m high.
- Helps produce a smoother finished surface.
- Easy to carry between different work areas.
Package Contents

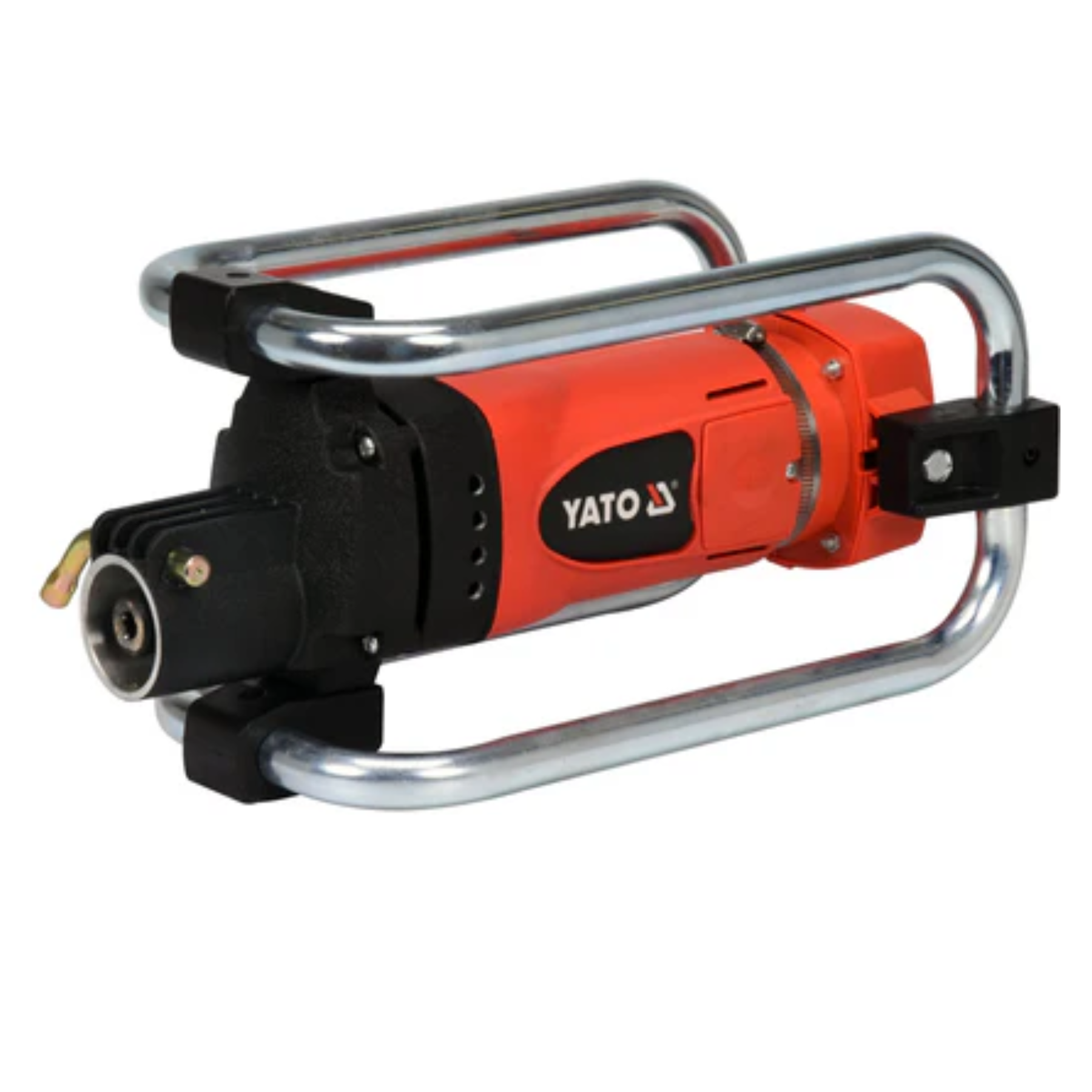

- 1 × YATO Concrete Vibrator Drive Unit
- 1 × 4m Flexible Shaft
- 1 × 35mm Vibrating Poker
Safety Note
Wear safety glasses, gloves, safety shoes, and hearing protection during use. Keep the drive unit away from water, inspect the cable and shaft before starting, and disconnect the power before cleaning or changing parts.
