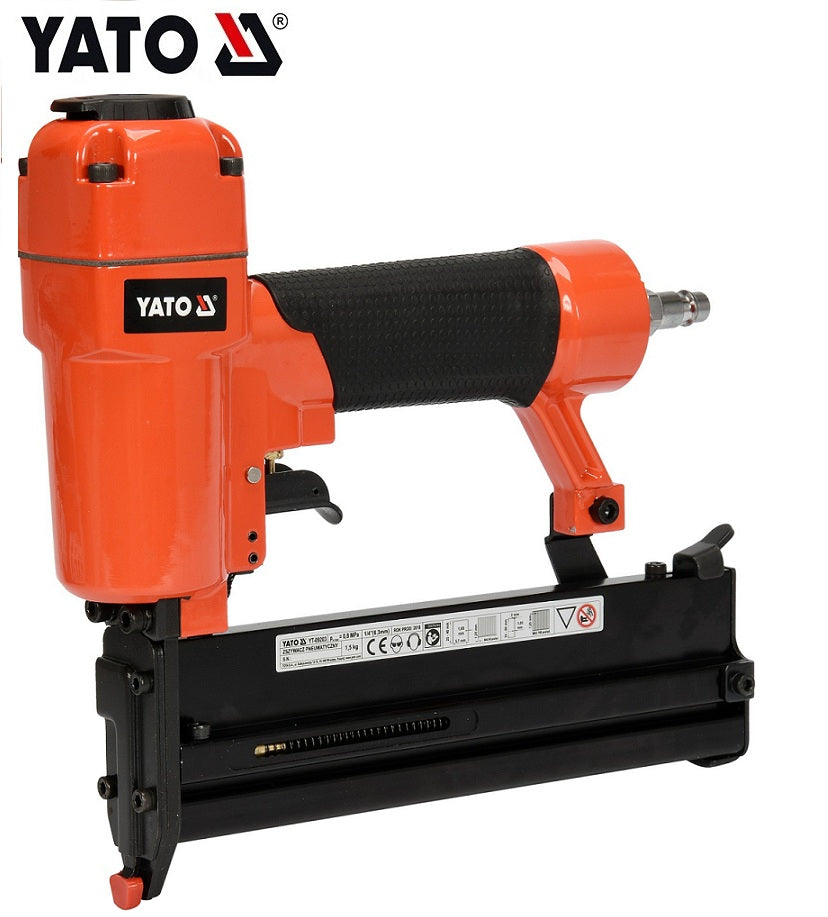

Yato Brad Nailer And Stapler YT-09203
Couldn't load pickup availability
Yato Brad Nailer And Stapler YT-09203 is a two-in-one air tool made for woodworking, furniture assembly, upholstery and finishing work. It supports staples from 25–40mm and brad nails from 10–50mm, allowing users to complete different fixing jobs with one tool. The safety nose helps prevent accidental firing, while the rubber-covered handle provides a steady and comfortable grip. Its aluminium body keeps the tool strong while remaining easy to handle during longer jobs.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Model | YT-09203 |
| Product Type | Pneumatic Brad Nailer and Stapler |
| Staple Size | 25–40 × 1.25 × 5.7mm |
| Brad Nail Size | 10–50 × 1.25 × 2mm |
| Recommended Air Pressure | 0.4–0.8MPa |
| Maximum Air Pressure | 0.8MPa |
| Air Connection | 1/4" BSP |
| Recommended Hose Size | 3/8" / 9.5mm |
| Staple Magazine Capacity | 80 Pieces |
| Nail Magazine Capacity | 100 Pieces |
| Body Material | Die-Cast Aluminium |
| Handle Material | Rubber-Covered |
| Operating Mode | Sequential |
| Dimensions | 250 × 55 × 240mm |
| Weight | 1.5kg |
| EAN | 5906083034381 |
Key Features
- Works with both staples and brad nails
- Supports staple lengths from 25–40mm
- Supports brad nail lengths from 10–50mm
- Safety nose helps prevent accidental firing
- 360° rotating air outlet directs air away
- Rubber-covered handle provides a better grip
- Aluminium body offers strength without extra weight
- Magazine allows quick and easy fastener loading
Applications
Suitable for furniture assembly, upholstery, carpentry, wooden panels, trim fitting, cabinet work, decorative pieces and other indoor finishing jobs.
Package Contents
- Yato Brad Nailer And Stapler YT-09203
Safety Note
Wear safety glasses and hearing protection during use. Disconnect the air hose before loading nails, clearing a jam or cleaning the tool. Never point the nailer at yourself or another person.
LENGTH OF STAPLES: 25- 40MM,
LENGTH OF NAILS: 10-50MM;
OPERATING PRESSURE: 75-100PSI (5-7KG/CM2);
WEIGHT: 1,46KG;
DIMENSIONS: 250x55x240MM;
LOAD CAPACITY: 80 STAPLES OR 100 NAILS;
GERMAN TYPE CONNECTION- 1/4 BSP;
360 DEGREES EXHAUST DIRECTION;
LIGHT DIE CAST BODY OF ALUMINIUM ALLOY;
