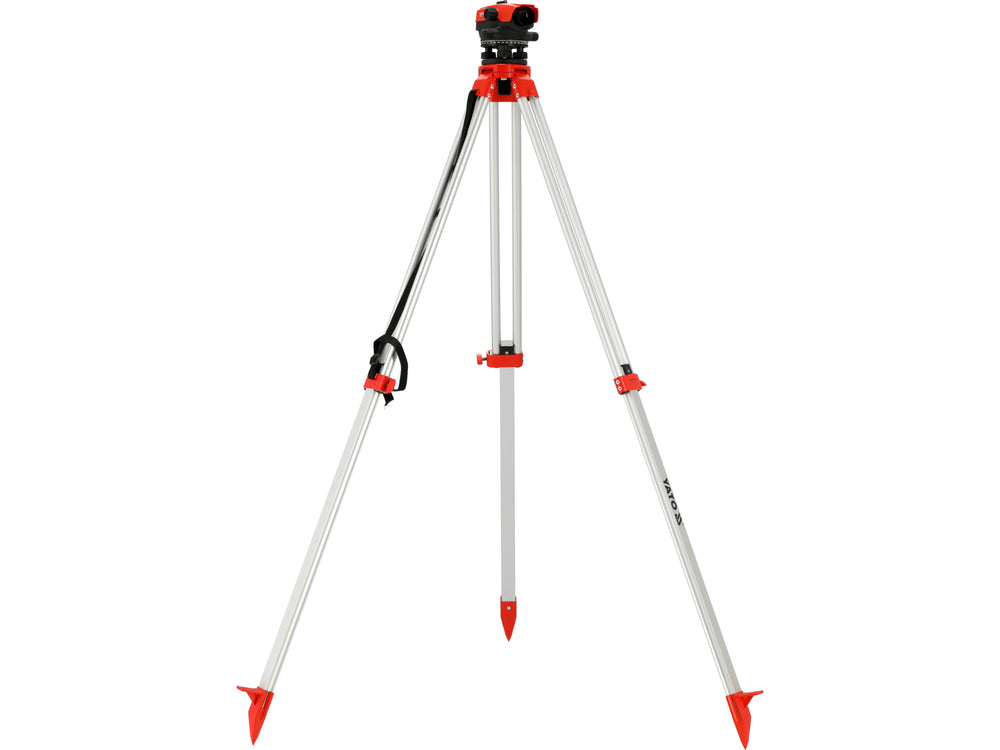

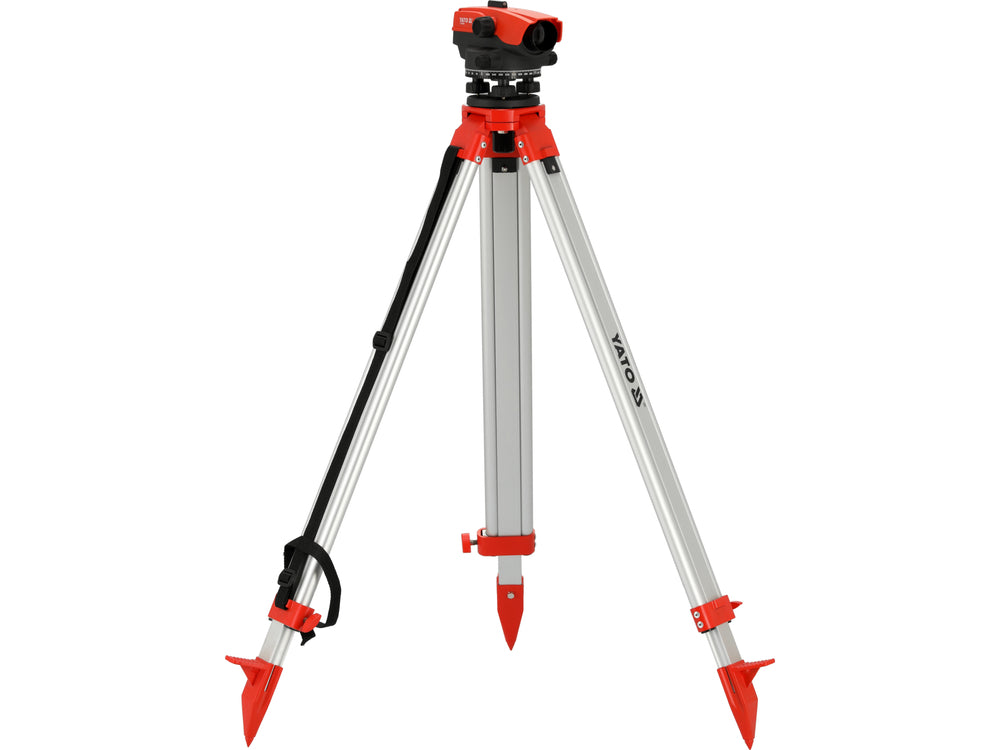

Yato Auto Level 32xip66 + Rod + Tripod YT-30551
Couldn't load pickup availability
YATO Auto Level 32x IP66 with Rod and Tripod YT-30551 is a complete optical measuring set for checking height, level, and ground differences. It offers a measuring range of up to 110m and an accuracy of 1mm at 30m. The pneumatic compensator helps keep readings stable, while the IP66 body protects the unit from dust and heavy rain. The set includes a 5m measuring rod, tripod, transport case, and setup accessories.
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Model | YT-30551 |
| Product Type | Automatic Optical Level Set |
| Telescope Magnification | 32x |
| Measuring Range | Up to 110m |
| Minimum Measuring Distance | 1m |
| Accuracy at 30m | 1mm |
| Double Levelling Accuracy | ±1mm per 1km |
| Lens Diameter | 38mm |
| Compensator Type | Pneumatic |
| Compensator Range | ±15′ |
| Compensator Accuracy | ±0.5″ |
| Horizontal Circle Division | 360° / 1° |
| Tripod Connection | 5/8" |
| Protection Grade | IP66 |
| Working Temperature | -20°C to +50°C |
| Unit Dimensions | 210 × 135 × 140mm |
| Unit Weight | 1.4kg |
| Measuring Rod Length | 5m |
| EAN | 5906083112164 |
Key Features
- 32x magnification provides clear distance readings.
- Measures across a range of up to 110m.
- Provides 1mm accuracy at a distance of 30m.
- Pneumatic compensator helps keep measurements stable.
- IP66 housing protects against dust and heavy rain.
- Factory-calibrated and ready for setup.
- Standard 5/8" connection fits the included tripod.
- Complete set includes a 5m rod and carrying case.
Applications
- Checking ground and floor levels
- Measuring height differences
- Foundation and concrete work
- Road and drainage installation
- Landscaping and land preparation
- Building construction
- Surveying work
- Outdoor site measurements

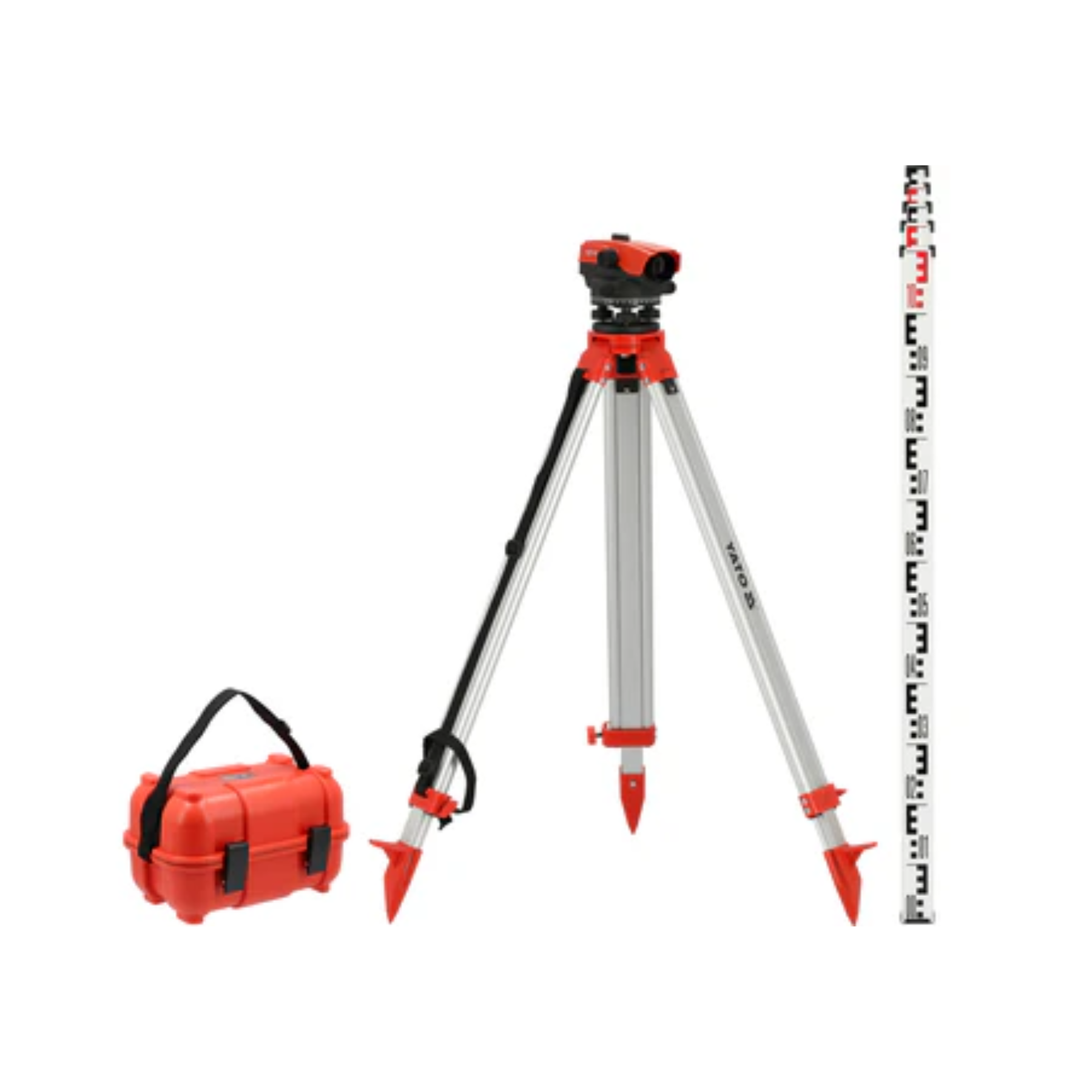

Package Contents

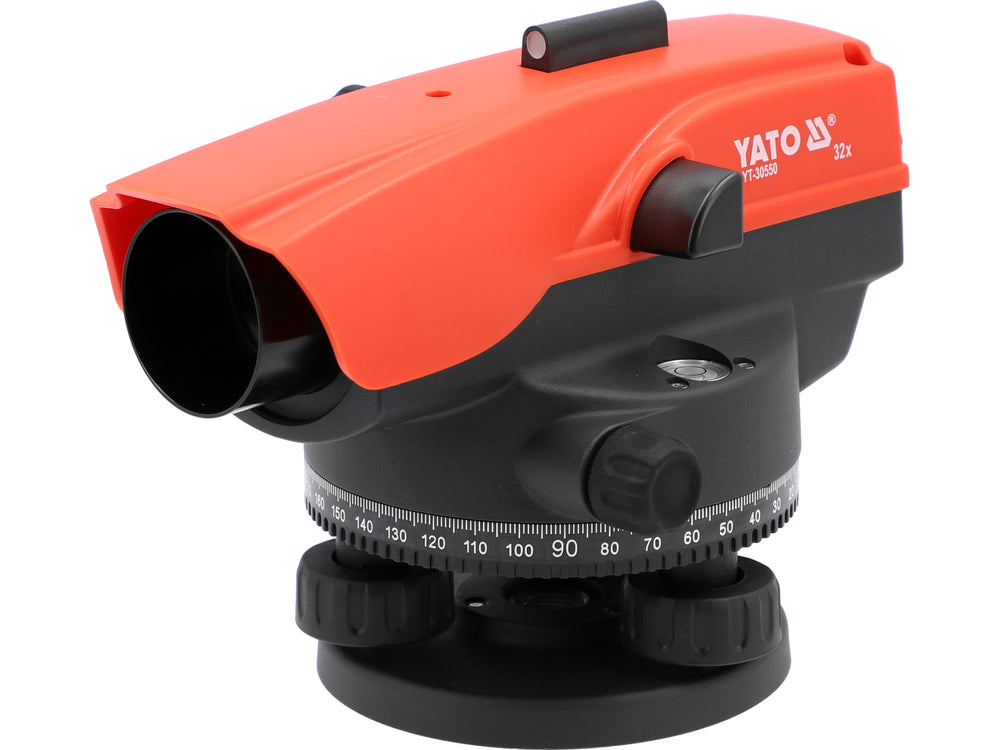

- 1 × YATO Auto Level 32x IP66
- 1 × Surveying tripod

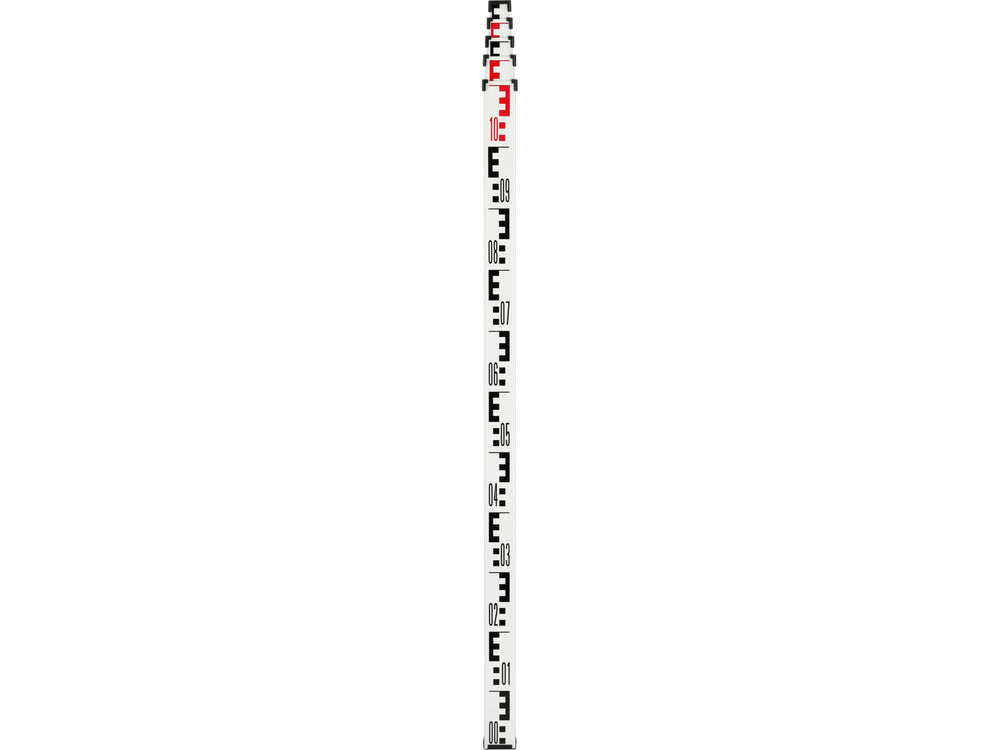

- 1 × 5m measuring rod

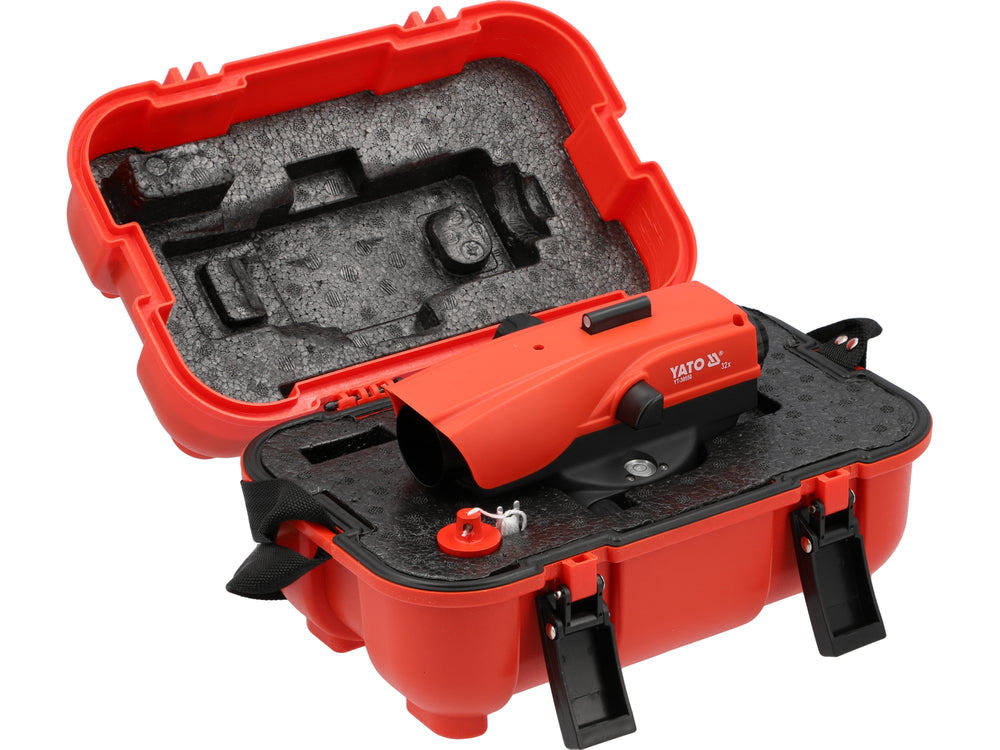

- 1 × Transport case with padded interior
- 1 × Plumb bob
- 1 × Hex key
- 1 × Adjustment pin
- 1 × Calibration certificate
- 1 × User manual
Safety Note
Set the tripod on firm and level ground before use. Secure the auto level correctly and avoid looking directly at the sun through the telescope. Keep the unit inside its case during transport and storage.
