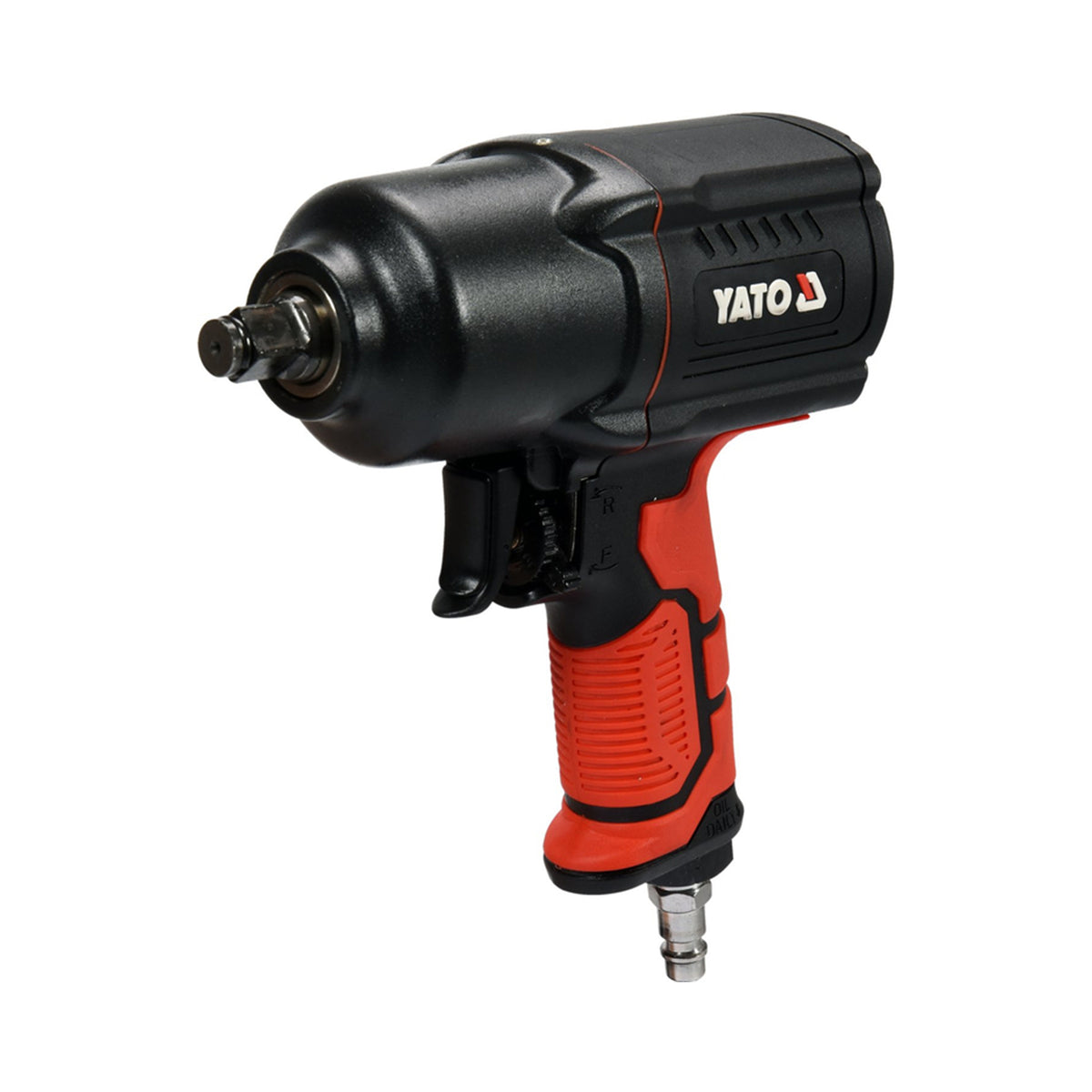

Yato impact wrench on a white background

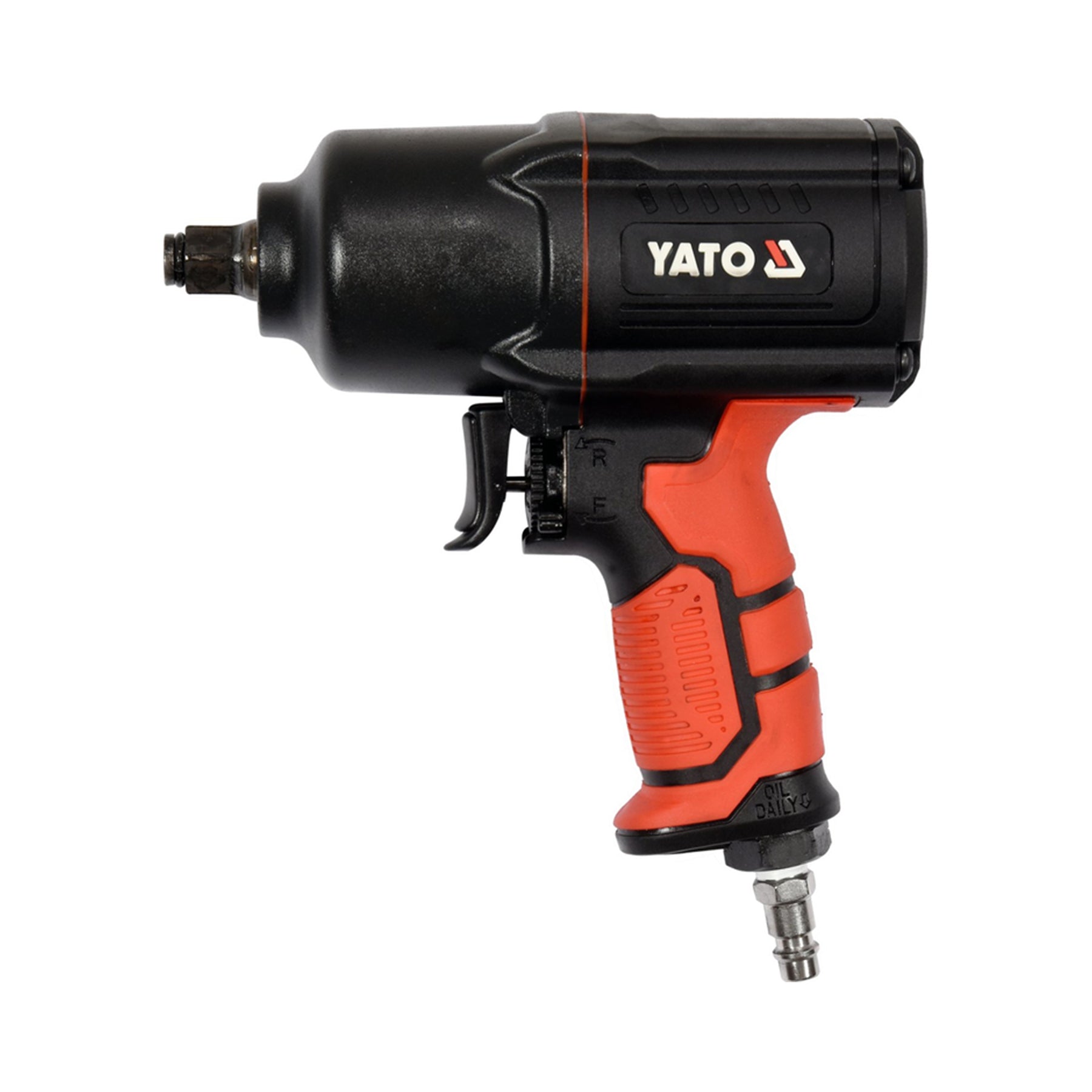

Black and red impact wrench with YATO branding on a white background

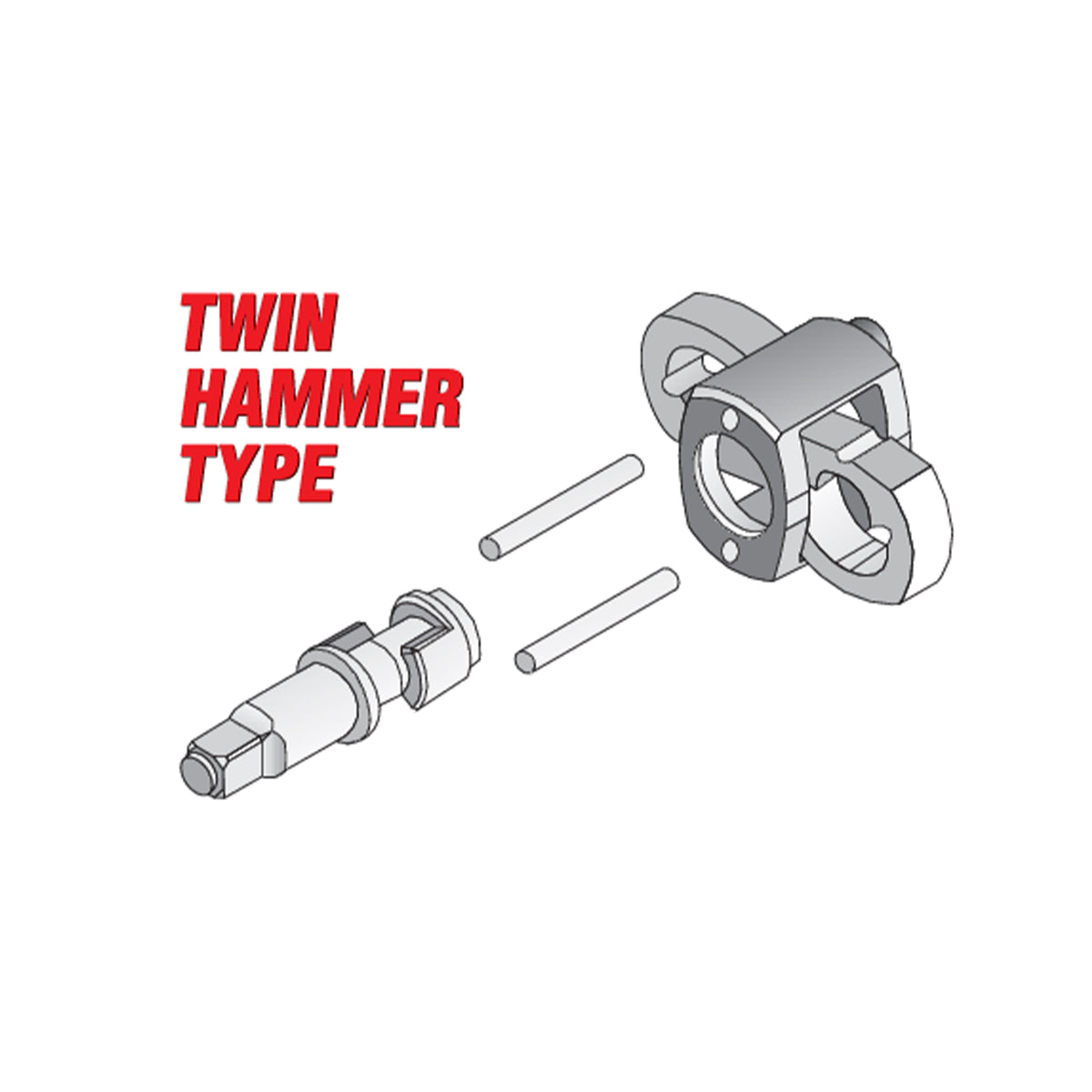

Technical drawing of a 'Twin Hammer Type' mechanical component on a white background
Yato impact wrench on a white background
Black and red impact wrench with YATO branding on a white background
Technical drawing of a 'Twin Hammer Type' mechanical component on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Yato Air Impact Wrench 1/2" 1700nm Composite YT-09544

SKU: HMT-11512
60.000 KD
In stock

Yato Air Impact Wrench 1/2" 1700nm Composite YT-09544 is designed for quickly tightening and loosening wheel nuts, bolts and other threaded parts. Its Twin Hammer impact system delivers a maximum torque of 1700Nm and runs at up to 7000 RPM. The composite and duralumin body keeps the tool strong while limiting its weight to 2kg. A forward and reverse switch makes it easy to change the turning direction during automotive and workshop jobs.

Specifications

Specification Details
Brand Yato
Model YT-09544
Product Type Pneumatic Impact Wrench
Drive Size 1/2" / 12.7mm
Maximum Torque 1700Nm
No-Load Speed 7000 RPM
Impact Mechanism Twin Hammer
Maximum Working Pressure 0.63MPa / 6.3 Bar
Required Airflow 198L/min
Recommended Hose Inner Diameter 3/8" / 9.5mm
Rotation Direction Forward and Reverse
Housing Material Composite and Duralumin
Length 190mm
Weight 2kg
EAN 5906083071133

Key Features

  • Maximum torque of 1700Nm
  • Standard 1/2-inch square drive
  • Twin Hammer impact mechanism
  • Maximum speed of 7000 RPM
  • Forward and reverse rotation
  • Composite and duralumin housing
  • Compact 190mm body
  • Suitable for automotive and workshop use

Applications

Suitable for removing and fitting vehicle wheels, working on suspension parts, repairing machines and completing other workshop or industrial jobs that use large nuts and bolts.

Package Contents

  • Yato Air Impact Wrench YT-09544
  • Air hose connector
  • User manual

Safety Note

Wear eye and hearing protection during use. Use only impact-rated sockets and connect the tool to a suitable air compressor with the correct pressure and airflow. Disconnect the air hose before changing sockets or performing maintenance.
