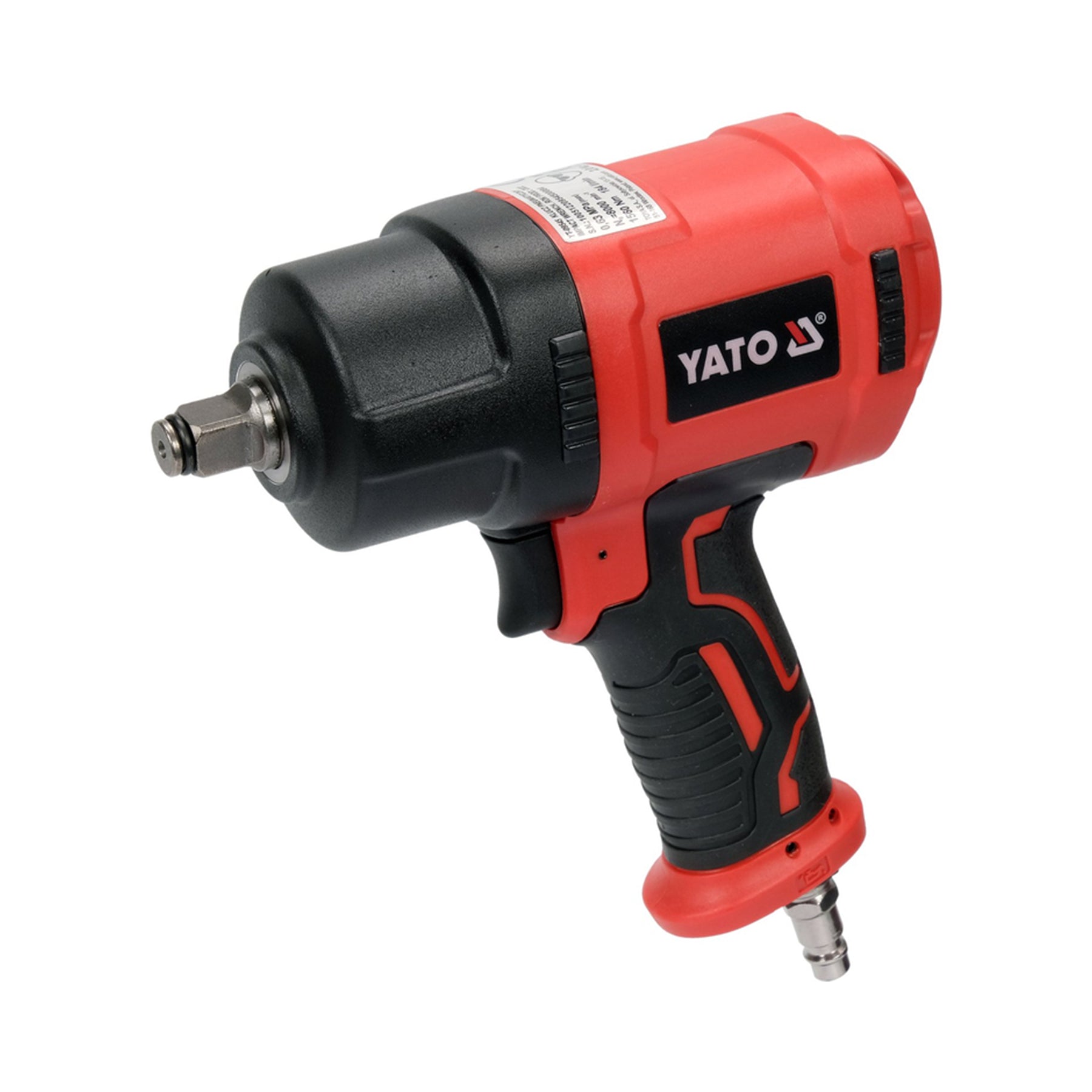

Red and black Yato impact wrench on a white background

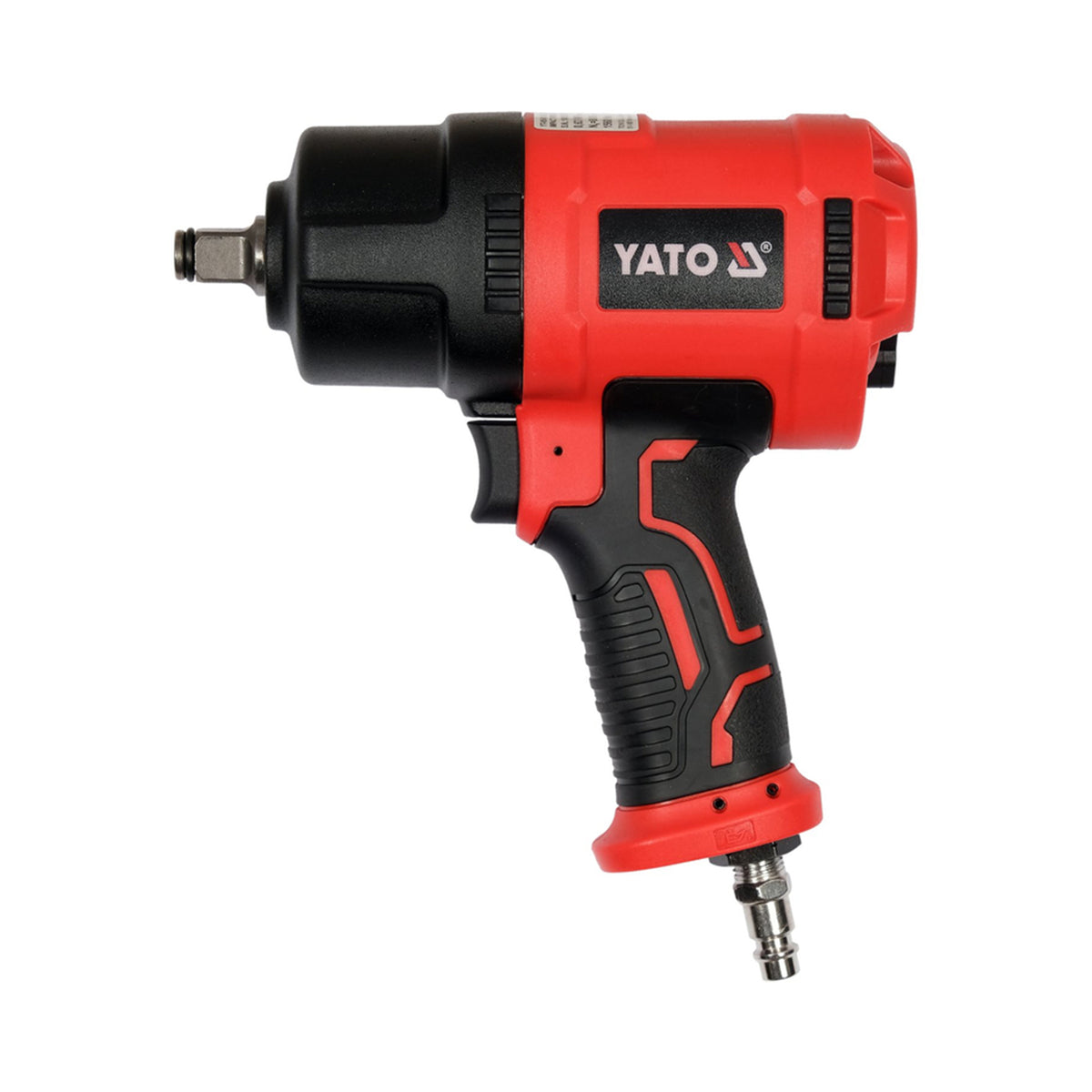

Red and black Yato impact wrench on a white background
Red and black spray gun nozzle on a white background

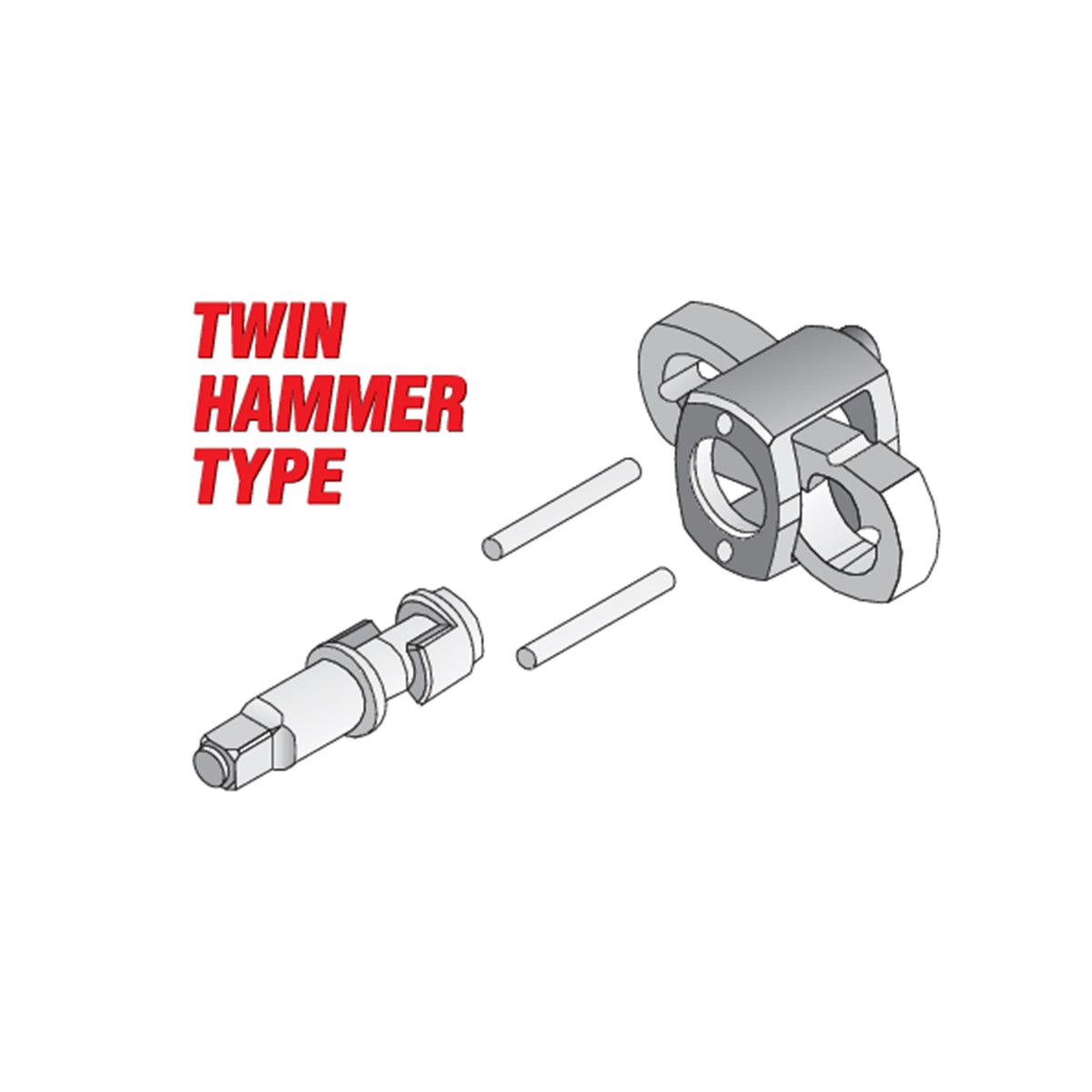

Technical drawing of a 'Twin Hammer Type' mechanical component on a white background
Red and black Yato impact wrench on a white background
Red and black Yato impact wrench on a white background
Red and black spray gun nozzle on a white background
Technical drawing of a 'Twin Hammer Type' mechanical component on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Yato Air Impact Wrench 1/2" 1560nm Composite Body YT-09545

SKU: HMT-11511
50.000 KD
In stock

Yato Air Impact Wrench 1/2" 1560nm Composite Body YT-09545 is designed for loosening tight wheel nuts, bolts and other threaded parts. Its Twin Hammer system provides up to 1560Nm of torque, while the motor reaches a maximum speed of 8000 RPM. Adjustable torque allows users to match the output to different jobs, and the forward and reverse switch makes direction changes simple. Its compact composite and duralumin body is 179mm long, making it easier to use in limited spaces.

Specifications

Specification Details
Brand Yato
Model YT-09545
Product Type Pneumatic Impact Wrench
Drive Size 1/2" / 12.7mm
Maximum Torque 1560Nm
No-Load Speed 8000 RPM
Impact Mechanism Twin Hammer
Torque Adjustment Yes
Maximum Working Pressure 0.63MPa / 6.3 Bar
Required Airflow 184L/min
Recommended Hose Inner Diameter 3/8" / 9.5mm
Rotation Direction Forward and Reverse
Housing Material Composite and Duralumin
Length 179mm
Weight 2kg
EAN 5906083084393

Key Features

  • Maximum torque of 1560Nm
  • Standard 1/2-inch square drive
  • Twin Hammer impact mechanism
  • Maximum speed of 8000 RPM
  • Adjustable torque control
  • Forward and reverse rotation
  • Compact 179mm body
  • Composite and duralumin housing

Applications

Suitable for changing vehicle wheels, loosening tight or rusted bolts, repairing suspension parts and completing mechanical, automotive and industrial maintenance jobs.

Package Contents

  • Yato Air Impact Wrench YT-09545
  • Air hose connector
  • User manual

Safety Note

Wear eye and hearing protection while using the wrench. Use only impact-rated sockets and connect it to an air compressor that provides the correct pressure and airflow. Disconnect the air hose before changing sockets or servicing the tool.
