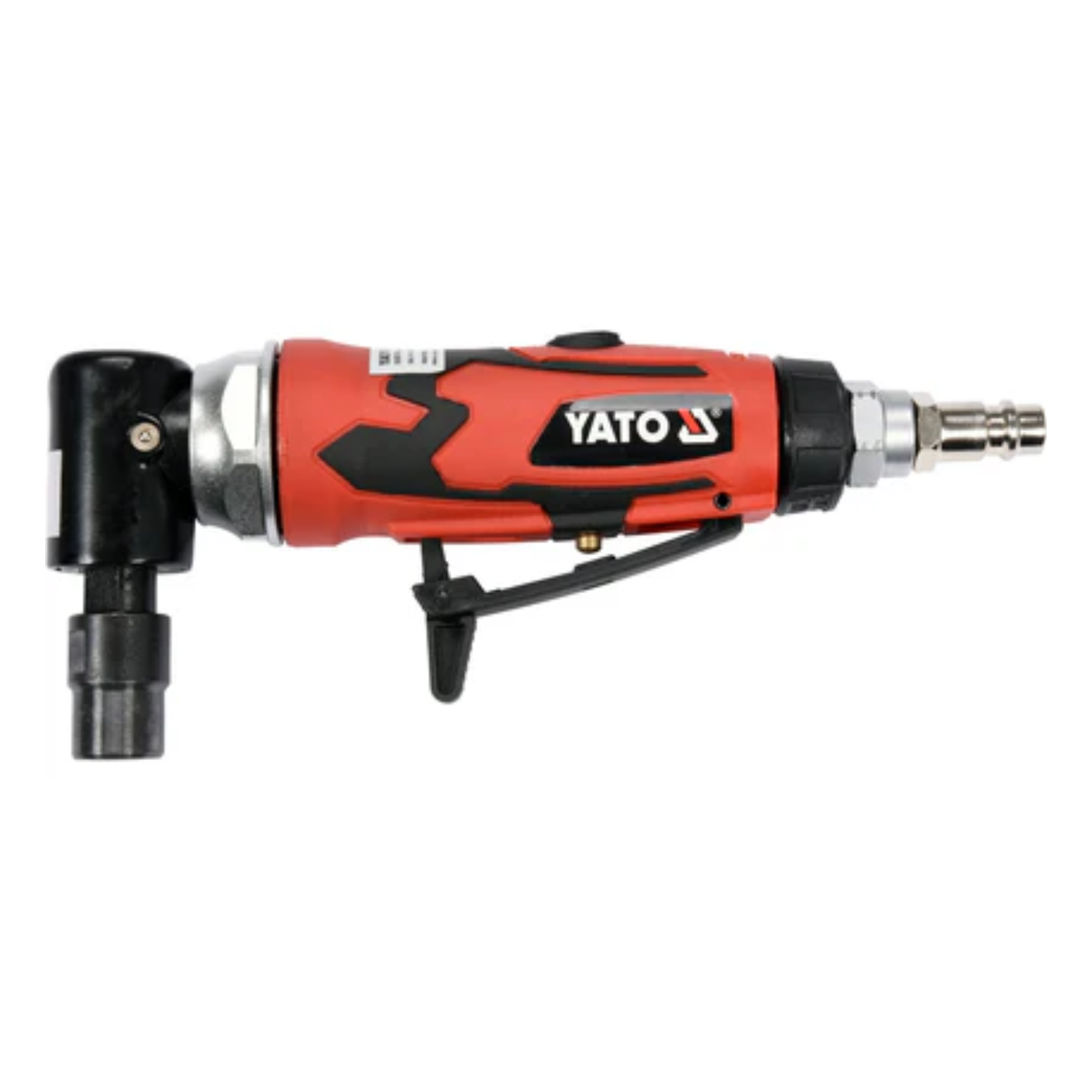

Yato Air Angle Die Grinder Composite Body YT-09676
Couldn't load pickup availability
YATO Air Angle Die Grinder with Composite Body YT-09676 is a pneumatic tool for cutting, grinding, smoothing, and finishing with suitable accessories. Its angled head and compact composite body help users reach tight work areas. The adjustable speed reaches 20,000 rpm, while the 360° rotating air exhaust directs airflow away from the working area.
Specifications
| Specification | Details |
|---|---|
| Brand | YATO |
| Model | YT-09676 |
| Product Type | Pneumatic Angle Die Grinder |
| Holder Size | 1/4″ / 6.3 mm |
| Maximum Accessory Diameter | 50 mm |
| Maximum Speed | 20,000 rpm |
| Maximum Working Pressure | 0.63 MPa / 6.3 bar |
| Required Airflow | 113 L/min |
| Air Connection | Standard PT connection |
| Recommended Hose Inner Diameter | 3/8″ / 9.5 mm |
| Body Material | Composite |
| Speed Control | Adjustable |
| Air Exhaust | 360° rotating |
| Sound Pressure | 92 ± 3 dB(A) |
| Sound Power | 103 ± 3 dB(A) |
| Vibration | 1.4 ± 1.5 m/s² |
| Weight | 0.48 kg |
| EAN | 5906083044427 |
Key Features
- Compact angled-head design
- Lightweight composite body
- Speed up to 20,000 rpm
- Adjustable speed control
- 1/4″ accessory holder
- 360° rotating air exhaust
- Safety lock helps prevent accidental starting
- Supports accessories up to 50 mm
Applications
- Grinding metal surfaces
- Smoothing edges
- Removing surface rust
- Cleaning welded areas
- Cutting with suitable discs
- Finishing small components
- Automotive service work
- Industrial maintenance
Package Contents
- 1 × YATO Air Angle Die Grinder YT-09676
- 1 × Air hose connector
- 2 × Tool holder keys
Grinding and cutting accessories, air hose, and compressor are not included.
Safety Note
Wear safety glasses, hearing protection, gloves, and a dust mask. Use accessories rated for 20,000 rpm, keep the pressure within 0.63 MPa, and disconnect the air before changing accessories.
