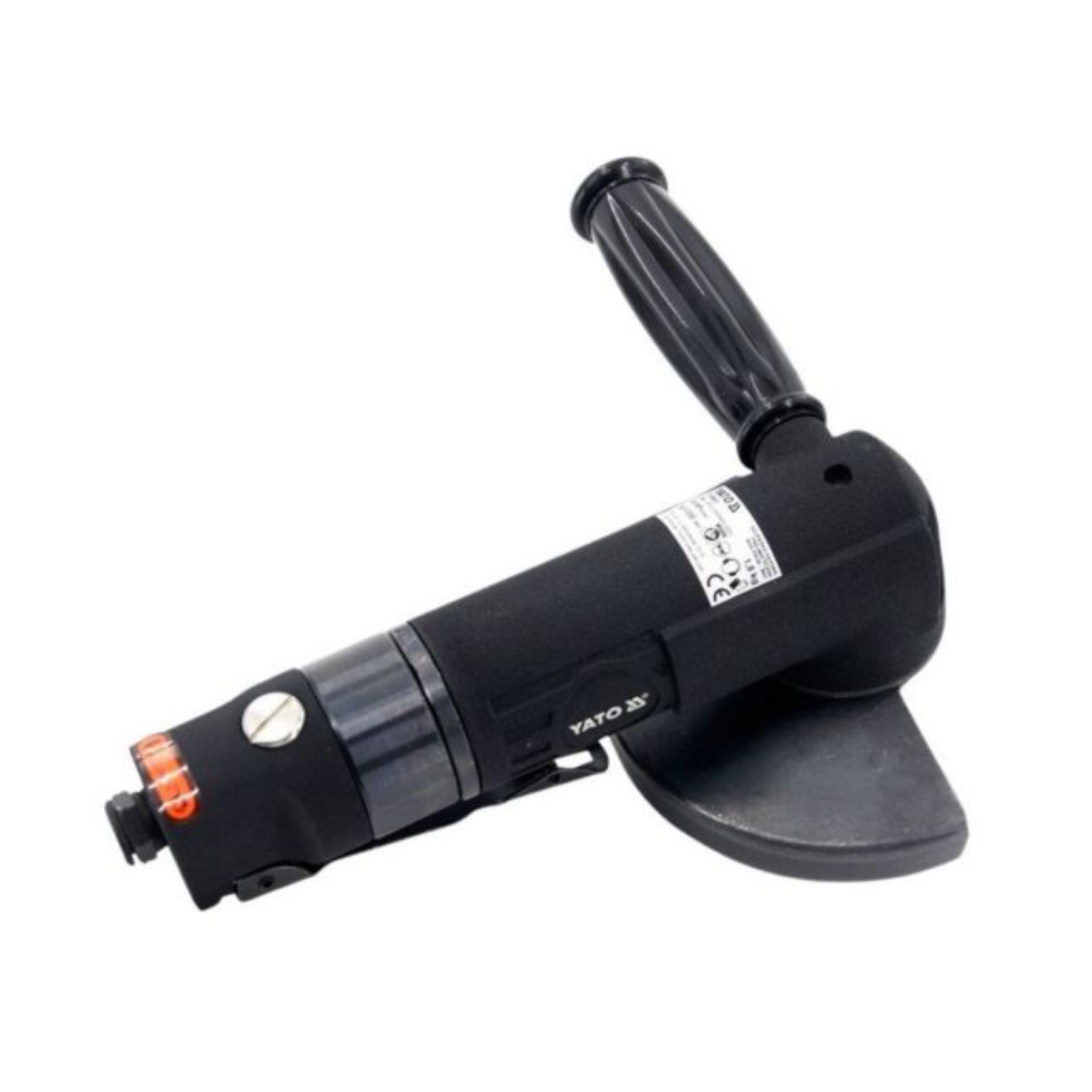

Yato 4" Air Angle Grinder YT-09680

Yato 4" Air Angle Grinder YT-09680 is a pneumatic tool for cutting, grinding, surface cleaning, and edge finishing on metal parts. Its 0.75 kW air motor reaches 12,000 rpm and works with 100 mm discs on an M10 × 1.5 spindle. The compact metal housing, removable side handle, wheel guard, and rear exhaust support controlled two-handed operation. It suits fabrication shops, vehicle repair centres, construction work, and industrial maintenance with a suitable air compressor.

Key Features

• Uses standard 100 mm grinding discs.
• Free speed of 12,000 rpm.
• Pneumatic motor output of 0.75 kW.
• M10 × 1.5 spindle thread.
• Side handle mounts on either side.
• Protective wheel guard controls debris.
• Rear exhaust directs air away from the work area.
• Compact metal housing weighs 1.7 kg.

Specifications

• Brand: YATO
• Model: YT-09680
• Product Type: Pneumatic Angle Grinder
• Housing Material: Metal
• Motor Output: 0.75 kW
• Disc Diameter: 100 mm / 4 inches
• Disc Bore: 16 mm
• Compatible Disc Thickness: 3.5–6 mm
• Spindle Thread: M10 × 1.5
• Free Speed: 12,000 rpm
• Recommended Air Pressure: Approximately 5.9 bar / 6 kg/cm²
• Air Consumption: 9.44 L/s
• Air Inlet: 1/4 inch
• Recommended Air Hose: 3/8 inch
• Dimensions: 229 × 195 × 82 mm
• Weight: 1.7 kg

Applications

• Cutting metal sheets
• Grinding weld seams
• Removing rust from metal
• Smoothing sharp edges
• Automotive body repairs
• Metal fabrication work
• Industrial equipment maintenance
• Construction site grinding

Benefits

• High rotational speed supports faster material removal.
• Compact body is easier to control.
• Side handle suits left- and right-handed use.
• Wheel guard helps contain sparks and debris.
• Rear exhaust keeps airflow away from the operator.
• Pneumatic operation supports regular workshop tasks.

Package Contents

• 1 × YATO Air Angle Grinder YT-09680
• 1 × Auxiliary Side Handle
• 1 × Protective Wheel Guard
• Grinding Disc Not Included
