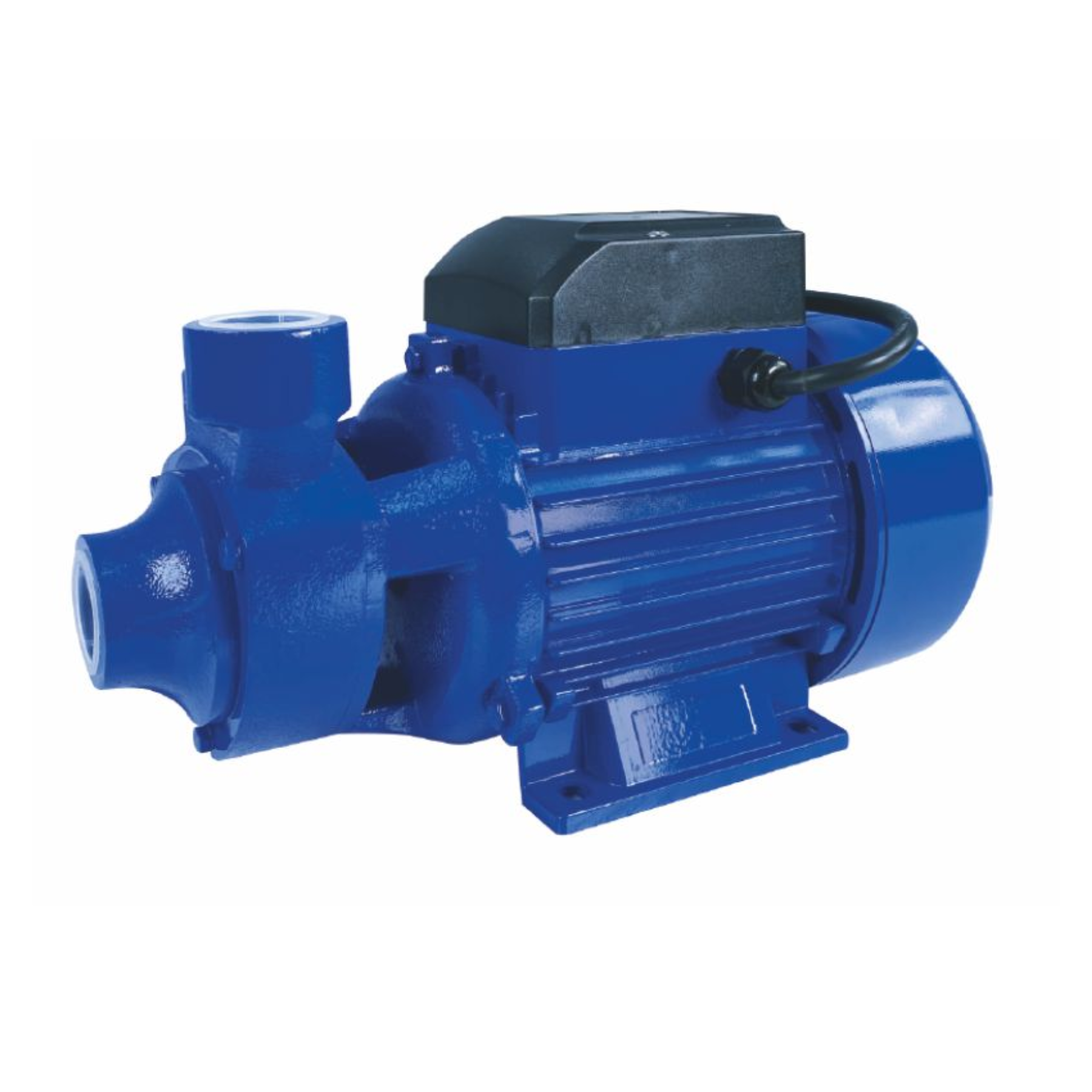

Water Pump QB60 MD-HWP1001-QB60
Regular price
0.000 KD
Couldn't load pickup availability
| Specification Category | Technical Detail & Measurement |
|---|---|
| Product Model | MD-HWP1001-QB60 |
| Brand Line | MODI (VMAX Series) |
| Pump Typology | Peripheral Volumetric Vortex Water Pump |
| Rated Motor Power | 0.5 HP / 360 Watts |
| Operating Voltage | Single-Phase 220V–240V |
| System Frequency | 50 Hz / 60 Hz Compatibility |
| Maximum Water Head | 35 Meters (Max Vertical Delivery Lift) |
| Maximum Water Flow Rate | 35 to 40 Liters/minute (Max Volume Capacity) |
| Maximum Suction Lift | Up to 8 to 9 Meters (with Foot Valve setup) |
| Inlet / Outlet Port Size | 1 Inch × 1 Inch Female Gas Threaded (Standard G 1") |
| Impeller Insert Composition | Heavy-Duty Stamped Radial Brass Impeller Insert |
| Motor Shaft Core | Premium AISI 304 Welded Stainless Steel Shaft |
| Pump Body Shell Construction | Rugged Cast Iron Housing with internal anti-rust coating & ventilated motor casing |
| Included Power Setup | 20-centimeter lead out connection cable |
| Thermal Security Assembly | Built-in automatic thermal protector cutout switch to safeguard against motor overheating |
| Liquid Suitability | Clean non-aggressive domestic water setups free from abrasive sediments or sand particle wear |
