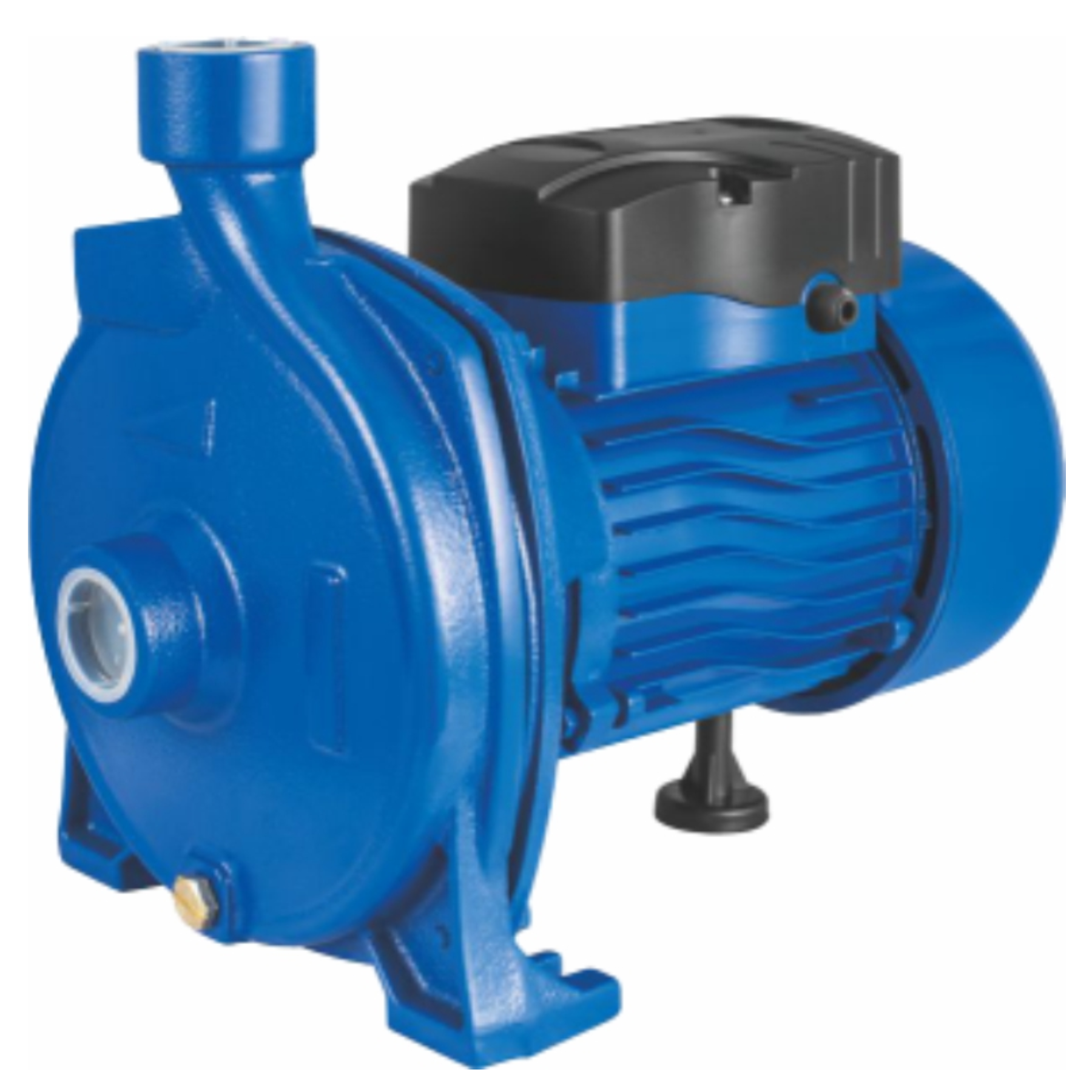

Water Pump CPM158 MD-HWP1003-CPM158

0.000 KD

In stock

Specification Category	Technical Detail & Measurement
Product Model	MD-HWP1003-CPM158
Brand Line	MODI (VMAX Series)
Pump Typology	Single-Impeller Centrifugal Surface Water Pump
Rated Motor Power	1.0 HP / 0.75 kW (980W Power Input max)
Operating Voltage	Single-Phase 220V–240V
System Frequency	50 Hz
Maximum Dynamic Head	32 Meters (Max Vertical Delivery Lift)
Maximum Water Flow Rate	110 to 120 Liters/minute (Max Volume Output)
Maximum Suction Lift	7 to 8 Meters
Inlet / Outlet Connection Size	1 Inch × 1 Inch Female Gas Threaded (Standard G 1")
Impeller Structure Material	Heavy-Duty Stamped Brass / Stainless Steel AISI 304 Insert
Motor Shaft Core	Premium AISI 304 Stainless Steel Shaft
Motor Windings	100% Pure Industrial Copper Wire Windings
Pump Body Shell Construction	Rugged Cast Iron Pump Housing & Motor Bracket with Low-Noise Bearings
Thermal Safety Feature	Built-in automatic thermal overload protector switch cutout
Liquid Handling Domain	Clean non-aggressive household water systems without abrasive sand/debris
