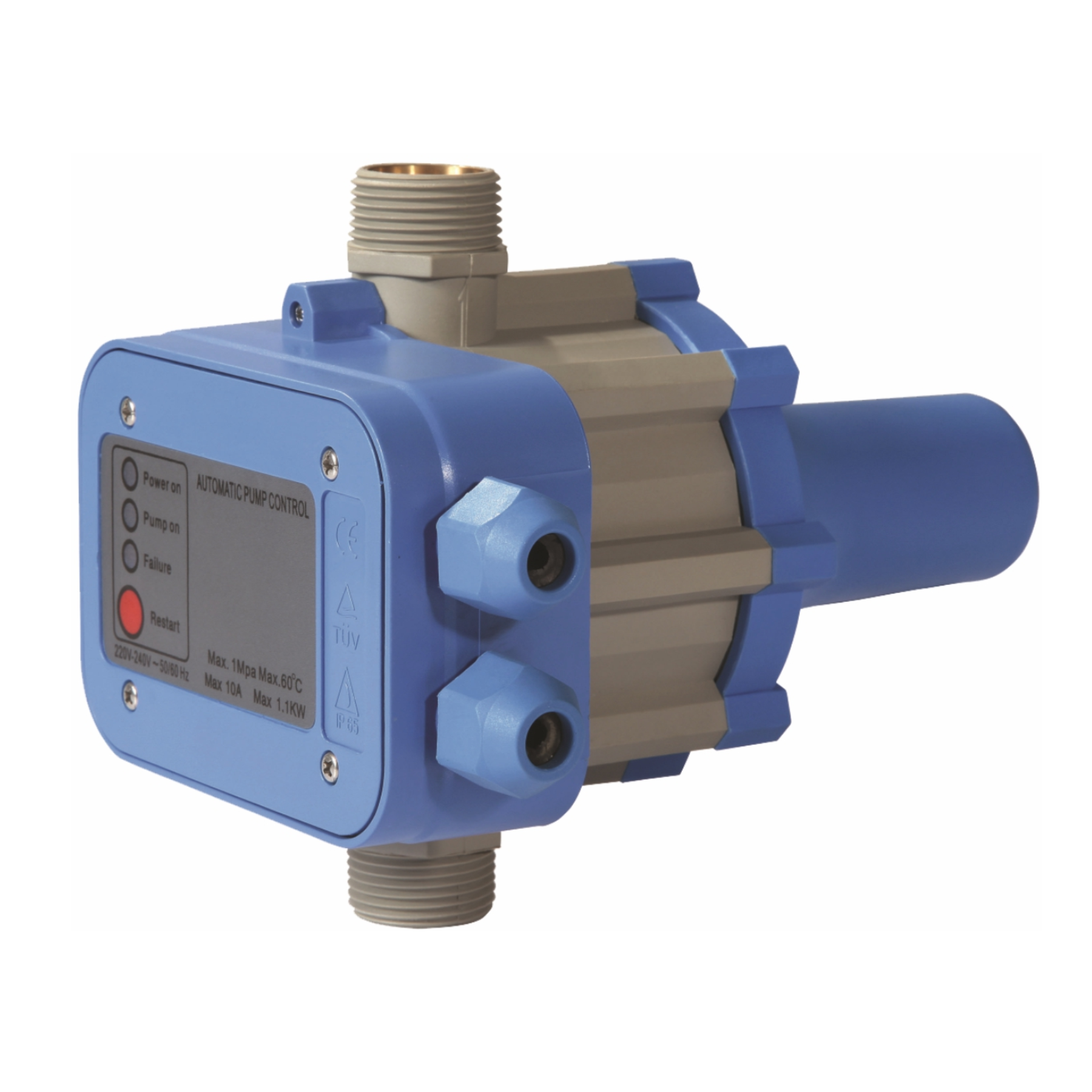

Pressure Kit Horizontal MD-HWP2002-H

8.000 KD

In stock

Specification Category	Technical Detail & Measurement
Model Number	MD-HWP2002-H
Brand	MODI (V.MAX Series)
Device Typology	Horizontal Electronic Water Pump Pressure Controller / Switch
Rated Power Compatibility	Optimized for pumps up to 1100W (1.5 HP)
Rated Operating Voltage	Single-Phase 220V–240V
Frequency Range	50 Hz / 60 Hz Dual Compatible
Electronic Cut-In Pressure	1.5 Bar to 3.0 Bar (Standard factory preset automatic start)
Housing Shell Material	Moisture-resistant, high-impact ABS thermoplastic case
Color Configuration	Industrial Blue / Grey / Blue layout
Built-In Indicators	Integrated analog visual pressure gauge and diagnostic LED state indicators
Physical Frame Size	234 mm x 170 mm x 173 mm
Inlet / Outlet Thread Connections	1 Inch Male/Female Standard fittings (G 1") with built-in check valve
Core Safety Features	Automatic dry-run protection, anti-jam restart, and surge prevention controls
