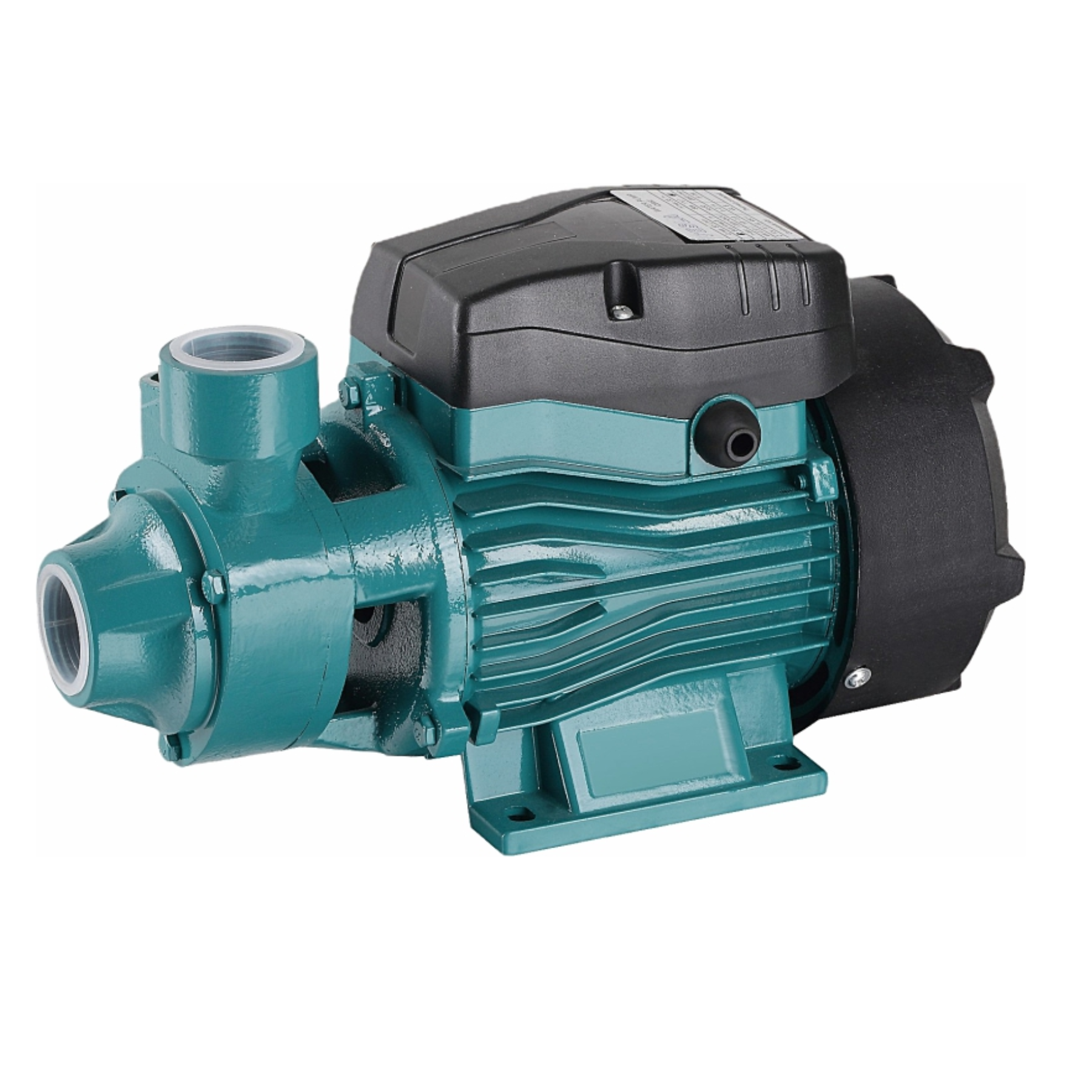

Optonica Water Pump QB60 OP-HWP1009-QB60

0.000 KD

In stock

Specification Category	Technical Detail & Measurement
Product Model	OP-HWP1009-QB60
Brand Series	OPTONICA Water Systems
Pump Typology	Peripheral Volumetric Vortex Pump
Rated Motor Power	0.37 kW / 0.5 HP (1/2 Horsepower)
Operating Voltage	Single-Phase 220V–240V ~ 50Hz
Maximum Water Flow Rate	35 to 40 Liters/minute (Max)
Maximum Dynamic Head	35 to 40 Meters (Max Vertical Delivery)
Maximum Suction Lift	7 to 8 Meters (with Foot Valve)
Inlet / Outlet Thread Size	1 Inch Female Threaded (G 1" x 1")
Impeller Core Material	Stamped Radial Brass (Vortex Resistance)
Pump Body Construction	Heavy-Duty Cast Iron with Anti-Seize Treatment
Motor Shaft Material	Stainless Steel AISI 304 / Carbon Steel
Mechanical Shaft Seal	Ceramic / Graphite / NBR Rubber
Thermal Amperometric Protection	Built-in automatic thermal protector cutout
Liquid Suitability	Clean, non-aggressive fluids free of abrasive particles/sand
