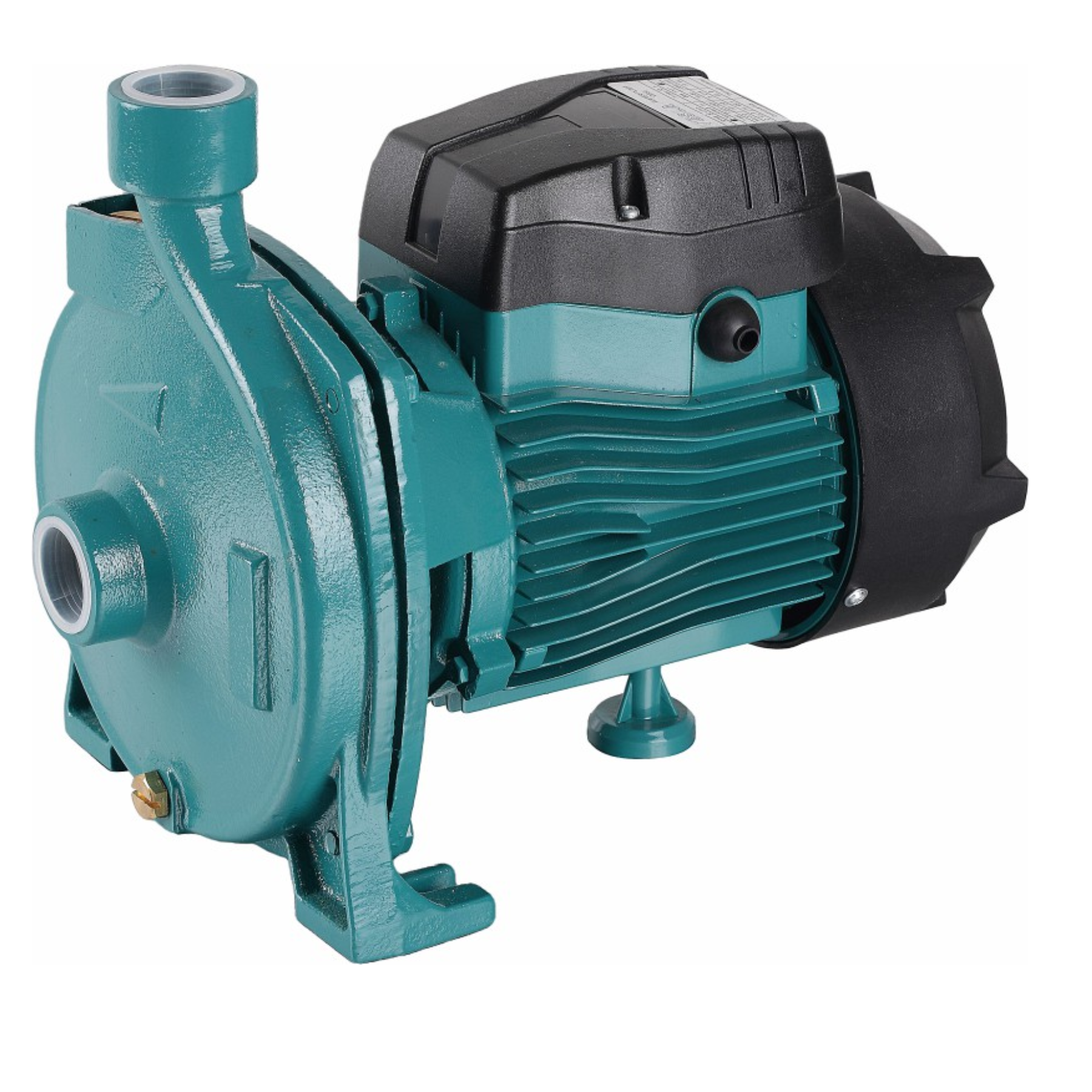

Optonica Water Pump CPM158 OP-HWP1010-CPM158

0.000 KD

In stock

Specification Category	Technical Detail & Measurement
Product Model	OP-HWP1010-CPM158
Brand Series	OPTONICA Water Systems
Pump Typology	Single-Impeller Centrifugal Surface Pump
Rated Engine Power	0.75 kW / 1.0 HP
Operating Voltage	Single-Phase 220V–240V ~ 50Hz
Maximum Water Flow Rate	100 to 120 Liters/min (Max)
Maximum Dynamic Head	32 Meters (Max Vertical Lift)
Maximum Suction Lift	7 to 8 Meters
Inlet / Outlet Connection Size	1 Inch Female Threaded (G 1")
Internal Motor Windings	100% Pure Industrial Copper
Impeller Structure Material	Heavy-Duty Cast Brass or Stainless Steel AISI 304
Pump Outer Shell Construction	Rugged Cast Iron Pump Body & Motor Bracket
Shaft Sealing Assembly	Premium Ceramic / Graphite / NBR Mechanical Seal
Thermal Safety Integration	Built-in automatic thermal overload protector cutout
Liquid Handling Domain	Clean non-potable water distribution without abrasive sand/debris
