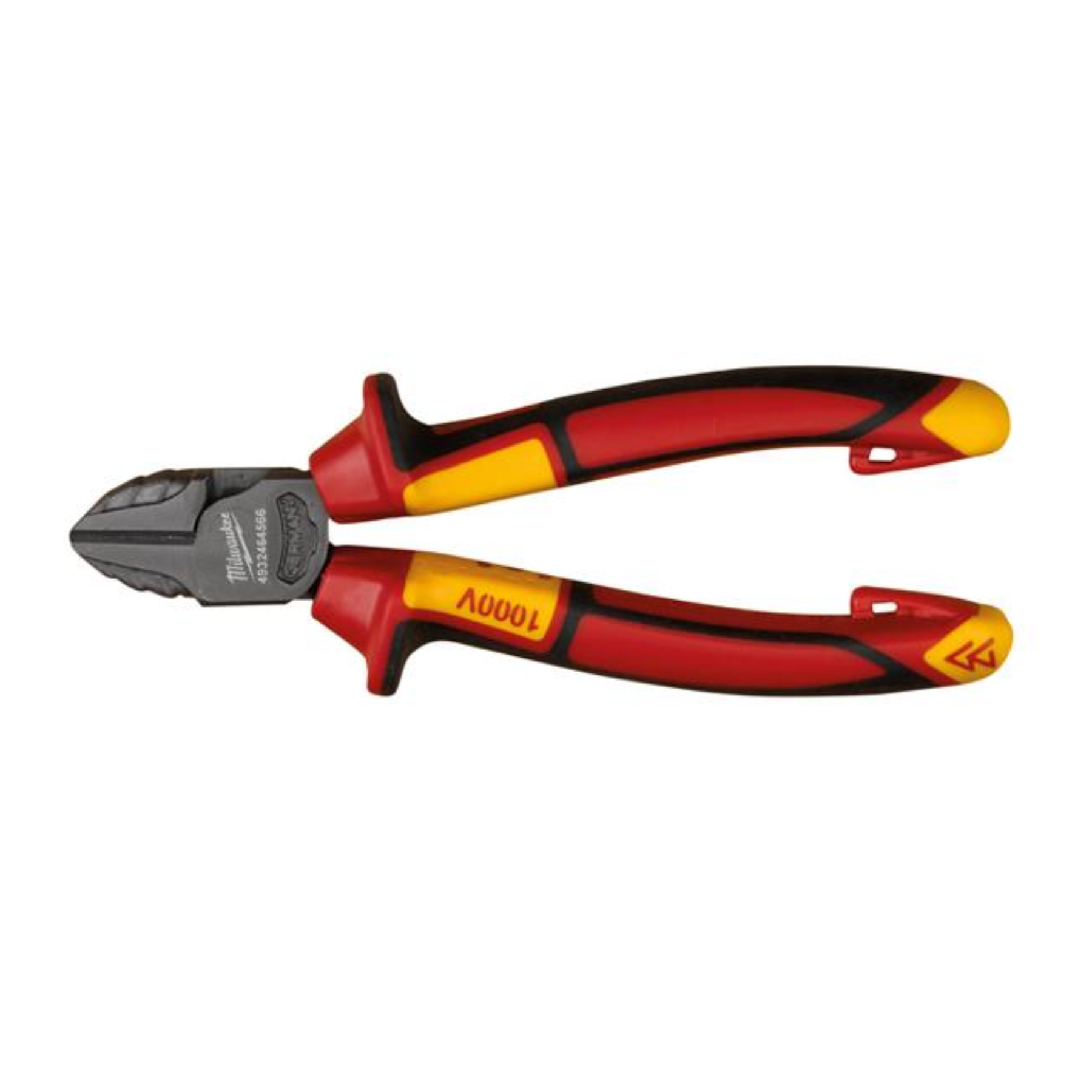

Milwaukee Vde Diagonal Cutter 145mm
Couldn't load pickup availability
Milwaukee Vde Diagonal Cutter 145mm is designed for cutting copper, aluminium, soft and hard electrical wires. Its compact size makes it easy to control and useful when working in tight spaces. The forged steel jaws and hardened cutting edges provide clean and reliable cuts. It is VDE certified, tested at 10,000V and approved for work up to 1,000V.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Product Type | VDE Diagonal Cutter |
| Article Number | 4932464566 |
| Overall Length | 145mm |
| Aluminium and Copper Cable Capacity | Maximum Ø 8mm |
| Soft-Wire Cutting Capacity | Maximum Ø 5mm at 220N/mm² |
| Hard-Wire Cutting Capacity | Maximum Ø 1.7mm at 1800N/mm² |
| Working Voltage Rating | Up to 1,000V |
| Test Voltage | 10,000V |
| Certification | VDE, DIN EN/IEC 60900 |
| Cold-Test Temperature | Down to −40°C |
| Jaw Material | Forged, Hardened and Tempered Steel |
| Cutting Edges | Induction Hardened |
| Surface Finish | Grey Titanium |
| Handle Type | Insulated Soft-Grip |
| Weight | 160g |
| EAN | 4058546225117 |
Key Features
- Cuts copper and aluminium cables up to 8mm
- Cuts soft wire up to 5mm
- Cuts hard wire up to 1.7mm
- VDE certified for electrical work
- Tested at 10,000V and approved up to 1,000V
- Induction-hardened cutting edges
- Strong forged steel jaws
- Precision-made joint improves cutting force
- Insulated soft-grip handles
- Compact 145mm design
Applications
Suitable for cutting electrical cables, copper wire, aluminium wire and other suitable soft or hard wires. It is useful for electrical installation, repairs, maintenance and control-panel work.
Package Contents
- One Milwaukee Vde Diagonal Cutter 145mm
Safety Note
Always switch off and test the electrical supply before cutting wires. Check the insulated handles before every use and do not use the cutter if the insulation or cutting edges are damaged.
