Milwaukee MXF DCD150-601c Mx Fuel Diamond Drill Gb2
Couldn't load pickup availability

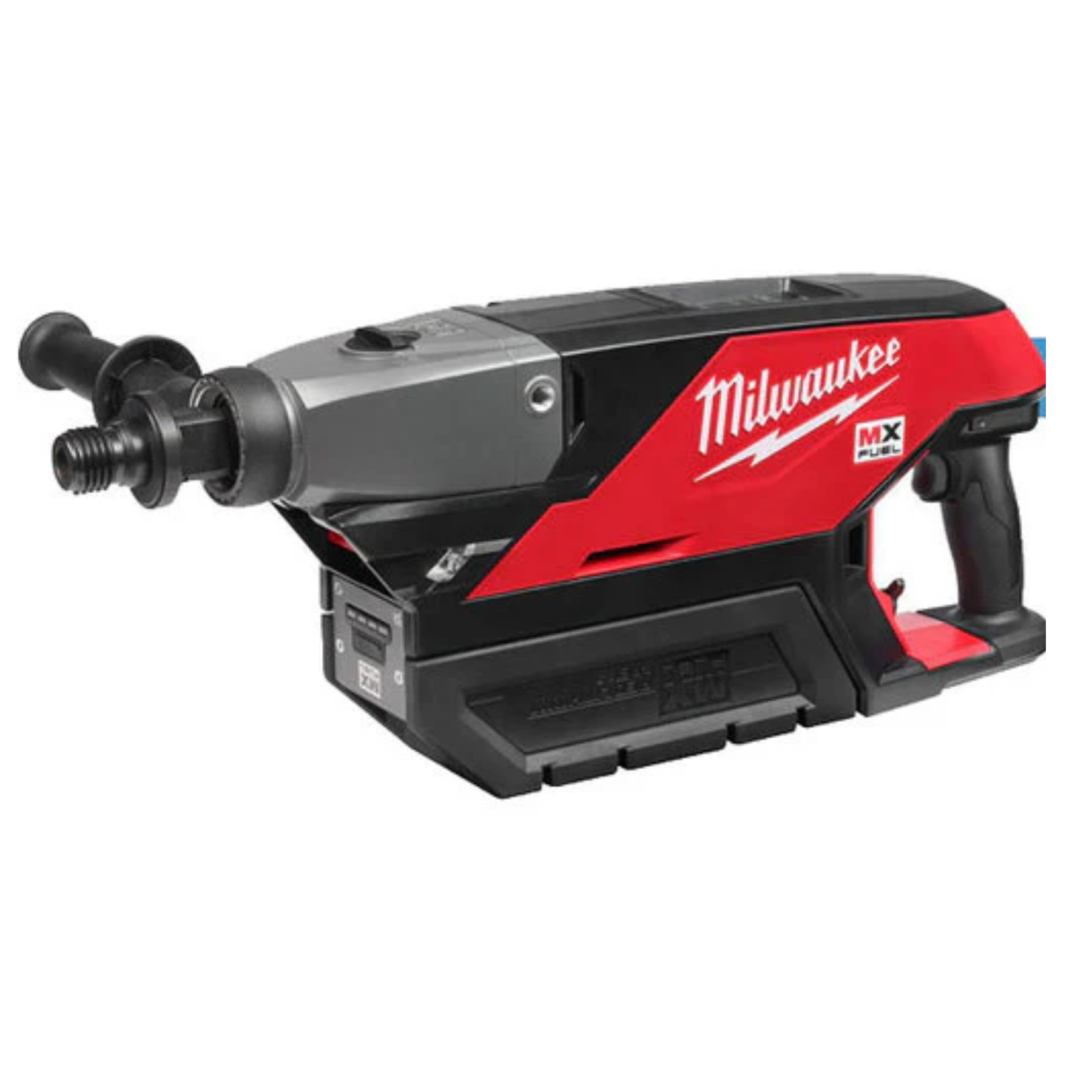

Milwaukee MXF DCD150-601C MX FUEL Diamond Drill GB2 is a cordless diamond core drill for wet and dry drilling in concrete and reinforced concrete. Its two-speed gearbox supports core diameters up to 152mm, while the built-in level and pressure indicators help users drill accurately. AUTOSTOP™ technology reduces dangerous over-rotation if the core becomes stuck. This set includes one 6.0Ah MX FUEL battery and charger but does not include the drilling stand.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | MXF DCD150-601C |
| Product Type | Cordless Diamond Core Drill |
| Battery Platform | MX FUEL™ |
| Battery Type | REDLITHIUM™ |
| Battery Capacity | 6.0Ah |
| Number of Batteries | 1 |
| No-Load Speed | 0–800 / 0–1600 RPM |
| Number of Gears | 2 |
| Maximum Core Diameter | 152mm |
| Drilling Capacity, Low Speed | 76–152mm |
| Drilling Capacity, High Speed | 25–76mm |
| Core Connection | 1¼″ UNC and ½″ G |
| Wet Drilling | Yes |
| Dry Drilling | Yes |
| Stand Mounting Diameter | 60mm |
| Safety System | AUTOSTOP™ |
| Tool Tracking | ONE-KEY™ |
| Weight with Battery | 12.4kg |
| Battery Charging Time | Approximately 90 Minutes |
Key Features
- Cordless diamond drilling performance
- Drills cores up to 152mm in diameter
- Two-speed gearbox for different core sizes
- Suitable for wet and dry drilling
- AUTOSTOP™ helps prevent dangerous over-rotation
- Built-in level sensor supports straight horizontal drilling
- Pressure indicator helps users maintain an efficient drilling rate
- Integrated water connection for wet drilling
- Battery-level indicator
- ONE-KEY™ tracking and remote-locking support
- Compatible with suitable 60mm universal drilling stands
Applications
Suitable for making service openings in concrete and reinforced concrete for plumbing, ventilation, electrical cables, drainage pipes and other construction installations. It can be operated by hand or fitted to a compatible drilling stand.
Package Contents
- Milwaukee MXF DCD150 Diamond Core Drill
- One MXF XC406 6.0Ah REDLITHIUM™ battery
- MXF C battery charger
- Side handle
- Trigger lock
- Carrying case
- Drilling stand not included
Safety Note
Wear eye, hearing, respiratory and hand protection during drilling. Check walls and floors for hidden electrical cables, gas pipes and water lines before starting. Hold the drill securely and allow AUTOSTOP™ to stop the machine if the core binds. Use a suitable drilling stand for applications where handheld operation is unsafe.
