Milwaukee MXF DCD150-601c Kit Mx Fuel Diam kit Gb2
Couldn't load pickup availability

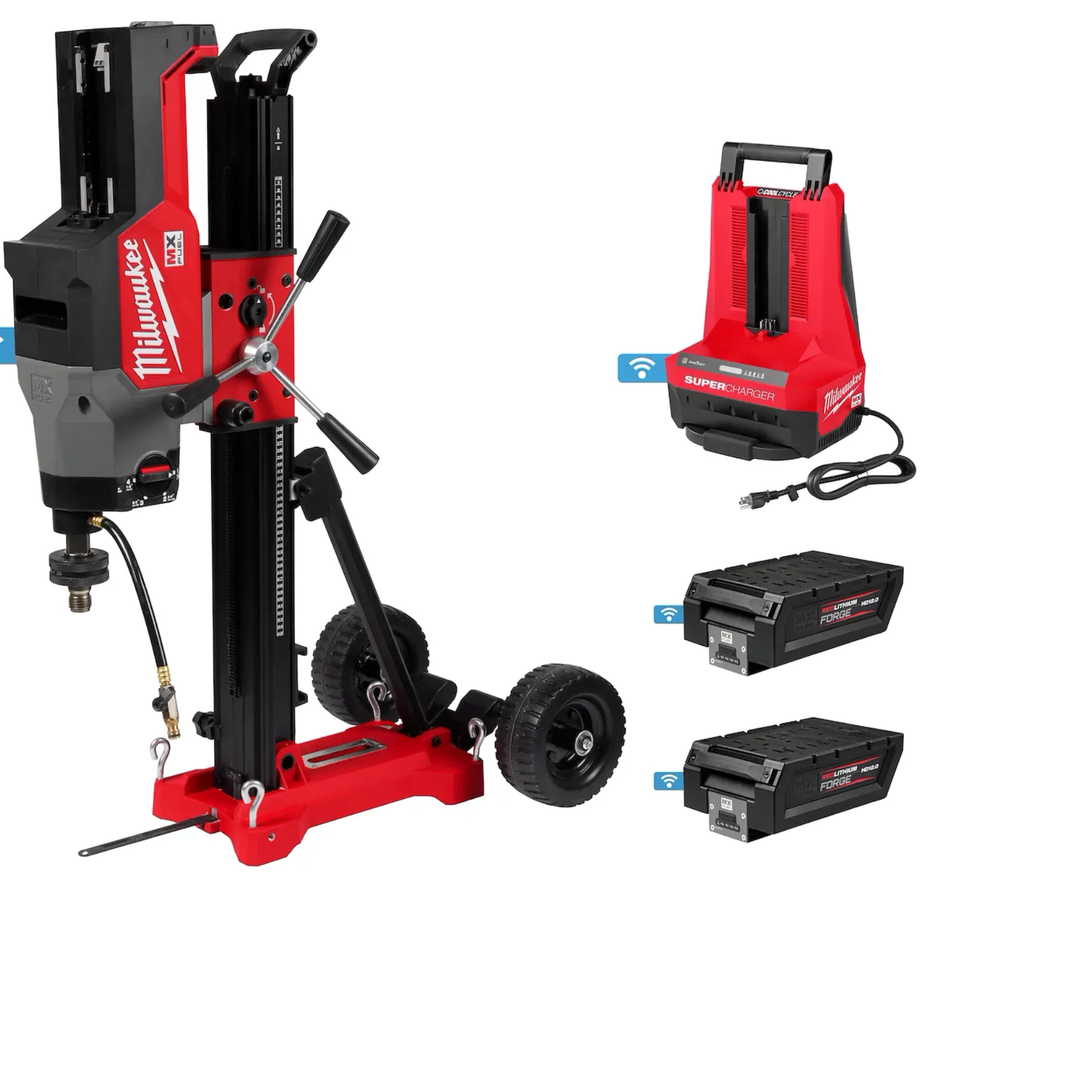

Milwaukee MXF DCD150-601c Kit Mx Fuel Diam kit Gb2 is a cordless diamond core drill set for making large holes in concrete and other suitable building materials. Its two-speed gearbox supports wet and dry drilling with core bits up to 152mm. The AUTOSTOP™ clutch helps prevent dangerous over-rotation if the core becomes stuck. This complete kit includes a 6.0Ah MX FUEL™ battery, charger and MXF DR255TV drilling stand.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | MXF DCD150-601C KIT |
| Product Type | Cordless Diamond Core Drill Kit |
| Battery System | MX FUEL™ |
| Drilling Method | Wet and Dry |
| Maximum Core Diameter | 152mm |
| Speed Settings | 2 |
| No-Load Speed | 0–800 / 0–1600 RPM |
| High-Speed Core Range | Up to 75mm |
| Low-Speed Core Range | 76–152mm |
| Core Connection | 1¼" UNC and ½" G |
| Stand Mounting Collar | 60mm |
| Safety System | AUTOSTOP™ Clutch |
| Level Sensor | Yes |
| Pressure Gauge | Yes |
| Battery Gauge | Yes |
| Integrated Water Connection | Yes |
| Tool Tracking | ONE-KEY™ |
| Battery Type | MX FUEL™ REDLITHIUM™ |
| Battery Capacity | 6.0Ah |
| Battery Quantity | 1 |
| Charging Time | Approximately 90 Minutes |
| Weight with Battery | 12.4kg |
| Article Number | 4933478167 |
| EAN | 4058546341008 |
The speeds, core capacity, fitting size, weight and included battery are confirmed by Milwaukee.
Key Features
- Maximum wet and dry drilling capacity of 152mm
- Cordless MX FUEL™ power system
- Two speed settings for different core sizes
- AUTOSTOP™ clutch helps prevent over-rotation
- Level sensor helps users drill straight holes
- Pressure gauge helps guide drilling pressure
- Battery gauge shows the remaining charge
- Integrated water line supports wet drilling
- Friction plate makes core removal easier
- ONE-KEY™ supports tool tracking and remote locking
- Supplied with a drilling stand for steady operation
- Includes a 6.0Ah battery and charger
Applications
Suitable for drilling holes in concrete, reinforced concrete, brick and other compatible building materials. It can be used for fitting pipes, ventilation systems, electrical cables and other construction services.
Package Contents
- Milwaukee MXF DCD150 diamond core drill
- MXF DR255TV diamond drilling stand
- One MXF XC406 6.0Ah REDLITHIUM™ battery
- MXF C battery charger
- Side handle
- Trigger lock
- Carrying case
- Diamond core bits not included
Safety Note
Wear eye, hearing, respiratory and hand protection during drilling. Fix the stand firmly before use and check the work area for hidden electrical cables, water pipes or gas lines. Remove the battery before changing a core bit, cleaning the machine or making adjustments.
