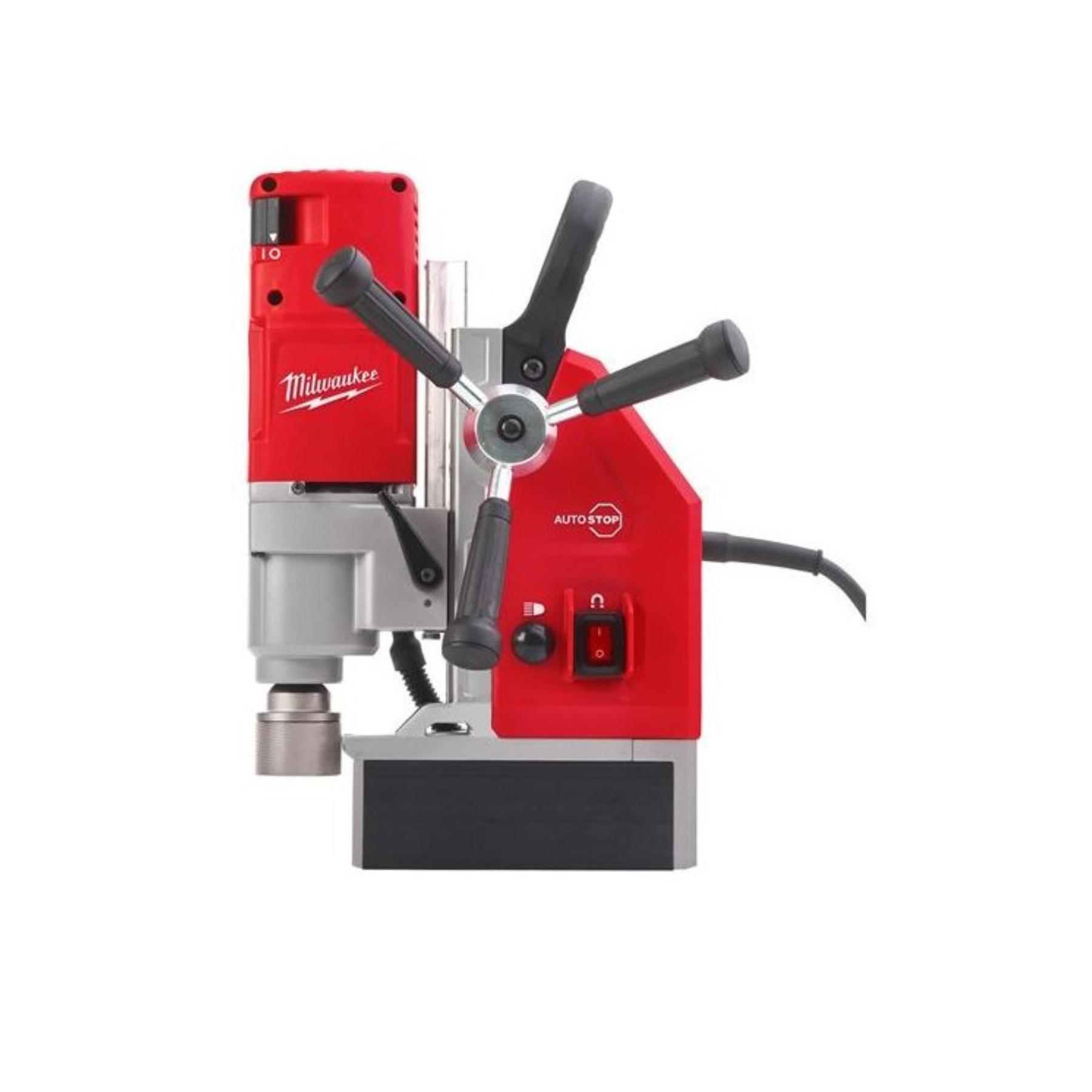

Milwaukee MDP41 41mm Magnetic Drill Stand
Couldn't load pickup availability
Milwaukee MDP41 41mm Magnetic Drill Stand is a powerful and portable drilling machine made for working on steel. Its 1200W motor and two-speed gearbox can drill holes up to 41mm wide and 50mm deep with a suitable annular cutter. The permanent magnetic base provides 8,890N of holding force and cannot be switched off by accident. AUTOSTOP™ protection stops the motor if the machine detects sudden movement during drilling.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | MDP41 |
| Product Type | Magnetic Drill Press with Permanent Magnet |
| Power | 1200W |
| Speed Settings | 2 |
| No-Load Speed | 475 / 730 RPM |
| Maximum Annular-Cutter Diameter | 41mm |
| Maximum Annular-Cutter Depth | 50mm |
| Maximum Solid Drill-Bit Diameter | 13mm |
| Magnetic Holding Force | 8,890N |
| Tool Holder | Keyless 19mm Weldon |
| Stroke Length | 146mm |
| Safety System | AUTOSTOP™ |
| Work Light | LED |
| Handle | Tool-Free Detachable |
| Weight | 14kg |
| Supplied In | Carrying Case |
| Article Number | 4933451014 |
| EAN | 4002395136674 |
The power, drilling capacity, speeds, stroke length, magnetic force and weight are confirmed for the MDP41 model.
Key Features
- Powerful 1200W electric motor
- Two operating speeds of 475 and 730 RPM
- Drills holes up to 41mm with annular cutters
- Maximum annular cutting depth of 50mm
- Permanent magnet helps prevent accidental release
- Strong magnetic holding force of 8,890N
- AUTOSTOP™ protection detects sudden movement
- Keyless 19mm Weldon holder allows quick cutter changes
- Built-in LED light improves work-area visibility
- Detachable handle can be fitted on either side
- Long 146mm stroke supports different accessories
Applications
Suitable for drilling steel beams, metal plates, structural frames and other suitable steel surfaces. It is useful for metal fabrication, construction, equipment installation and workshop repair work.
Package Contents
- Milwaukee MDP41 magnetic drill press
- Permanent magnetic stand
- Spray can
- 13mm drill chuck
- Weldon adaptor
- Chuck key
- Ejector pin
- Safety strap
- Carrying case
The listed standard equipment is confirmed on Milwaukee’s official product page.
Safety Note
Always secure the drill with the supplied safety strap before starting work. Place the magnetic base on a clean, flat steel surface and check that it holds firmly. Wear eye and hearing protection, and disconnect the power before changing cutters or making adjustments.
