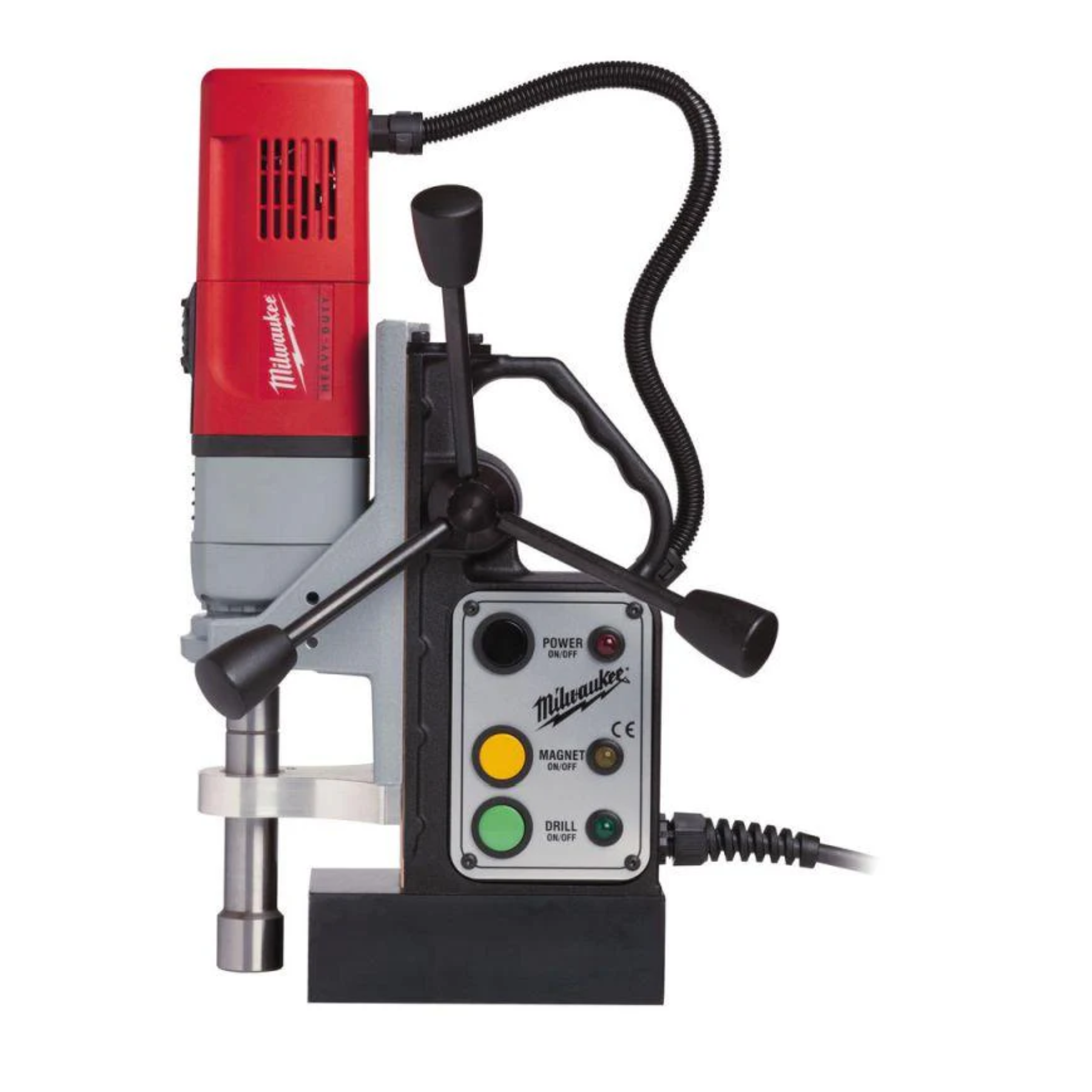

Milwaukee MDE42 42mm Magnetic Drill + Stand
Couldn't load pickup availability
Milwaukee MDE42 42mm Magnetic Drill + Stand is a strong and portable machine made for drilling large holes in steel. Its 1200W motor can drill holes up to 42mm wide and 50mm deep when used with a suitable core cutter. The magnetic base provides 10,000N of holding force to keep the machine steady during work. Adjustable speed helps users select the right setting for different cutters and materials.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | MDE42 |
| Product Type | Magnetic Drill with Stand |
| Power | 1200W |
| No-Load Speed | 300–640 RPM |
| Speed Under Load | 170–330 RPM |
| Maximum Core-Cutter Diameter | 42mm |
| Maximum Core-Cutter Depth | 50mm |
| Maximum Solid Drill-Bit Diameter | 16mm |
| Maximum Torque | 85Nm |
| Magnetic Holding Force | 10,000N |
| Cutter Connection | 19mm Weldon |
| Spindle Thread | 1/2" × 20 UNF |
| Speed Control | Adjustable |
| Weight | 11.5kg |
| Supplied In | Carrying Case |
| Article Number | 4933380832 |
| EAN | 4002395228881 |
The operating speeds, drilling capacities, torque, weight and magnetic force are confirmed in Milwaukee product documents.
Key Features
- Strong 1200W electric motor
- Drills holes up to 42mm with core cutters
- Maximum cutting depth of 50mm
- Adjustable speed from 300–640 RPM
- Powerful 10,000N magnetic holding force
- Three-stage reduction gear system
- Electronic control panel for simple operation
- Compact design makes transport easier
- Magnetic stand keeps the drill steady on steel
- Supplied in a protective carrying case
Applications
Suitable for drilling holes in steel beams, metal plates, structural frames and other flat steel surfaces. It is useful for steel fabrication, construction, equipment installation and workshop repair jobs.
Package Contents
- Milwaukee MDE42 magnetic drill
- Magnetic drill stand
- Core-cutter adaptor
- Adjustable safety guard
- Safety chain with hook
- Cutting oil
- 2.5mm, 4mm and 5mm hex keys
- Carrying case
The manufacturer information confirms the included safety equipment, cutting oil and hex keys.
Safety Note
Always attach the safety chain before drilling, even when the magnetic base is switched on. Place the machine on a clean, flat steel surface and check that the magnet holds firmly. Wear eye and hearing protection, and disconnect the power before changing cutters or adjusting the machine.
