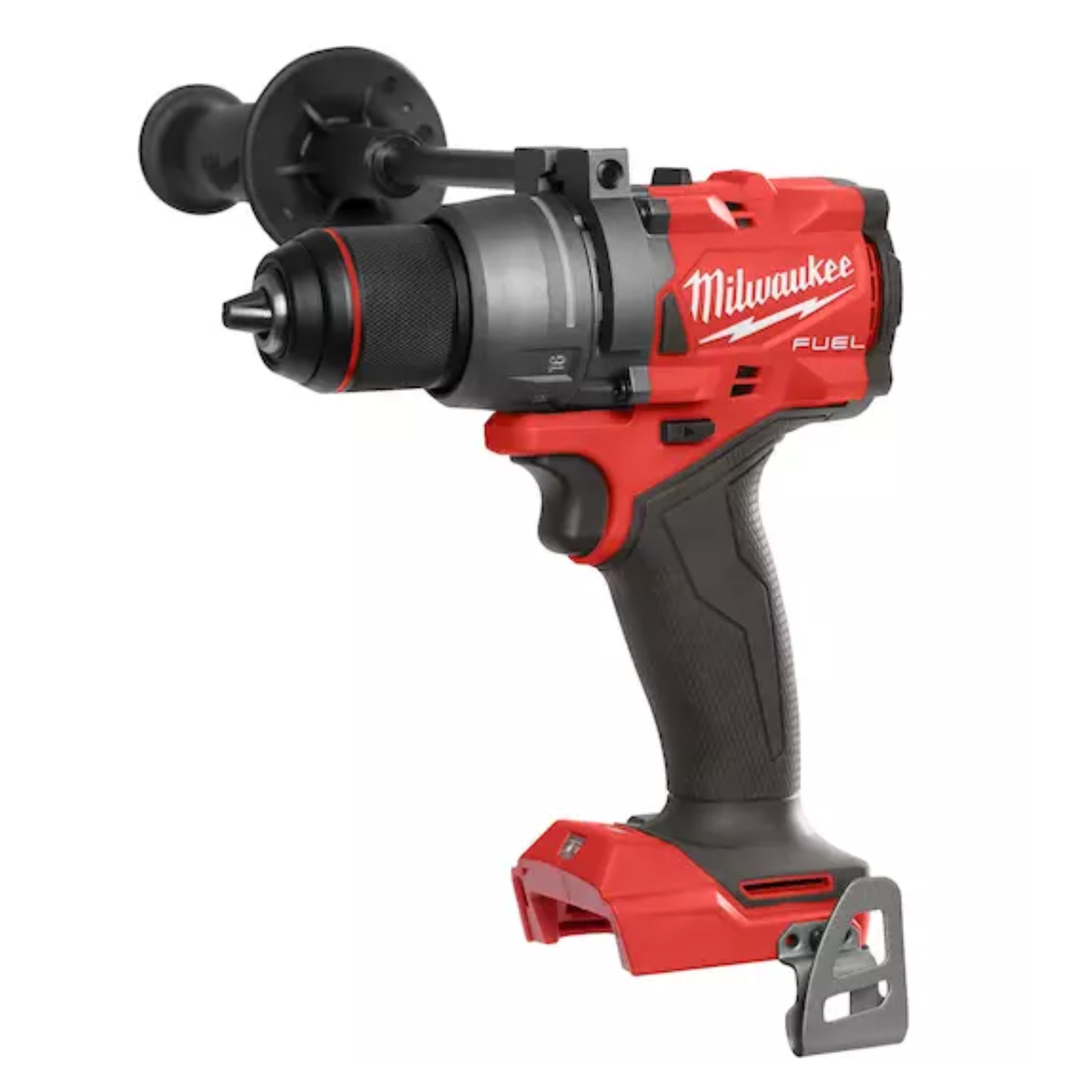

Milwaukee M18FPD3-0X M18 Percussion Drill Gen 4 (Bare Tool)
Couldn't load pickup availability
Milwaukee M18FPD3-0X M18 Percussion Drill Gen 4 (Bare Tool) is made for drilling, hammer drilling and screwdriving. Its POWERSTATE™ brushless motor delivers up to 158Nm of torque, while the two-speed gearbox reaches 2100 RPM. AUTOSTOP™ turns the tool off if the drill suddenly jams, helping protect the user. Its compact 175mm body makes it easier to work in narrow spaces.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | M18FPD3-0X |
| Product Type | Cordless Percussion Drill |
| Platform | M18 FUEL™ |
| Voltage | 18V |
| Motor Type | POWERSTATE™ Brushless |
| Maximum Torque | 158Nm |
| No-Load Speed | 0–500 / 0–2100 RPM |
| Maximum Impact Rate | 33,000 BPM |
| Chuck Capacity | 13mm |
| Maximum Drilling in Wood | 89mm |
| Maximum Drilling in Steel | 16mm |
| Maximum Drilling in Masonry | 16mm |
| Tool Length | 175mm |
| Safety System | AUTOSTOP™ |
| Work Light | LED |
| Battery Compatibility | All Milwaukee M18™ Batteries |
| Article Number | 4933479859 |
| Battery and Charger | Not Included |
| Supplied Case | HD Box |
The official specifications confirm the 158Nm torque, 33,000 BPM impact rate and maximum drilling capacities of 89mm in wood and 16mm in steel or masonry.
Key Features
- High torque of up to 158Nm
- Three modes for drilling, hammer drilling and screwdriving
- POWERSTATE™ brushless motor
- Two-speed metal gearbox
- AUTOSTOP™ protection during sudden bit jams
- Strong 13mm metal chuck
- Compact 175mm body
- Bright LED work light
- Battery charge indicator
- Works with all Milwaukee M18™ batteries
- Supplied inside a strong HD Box
Applications
Suitable for drilling into wood, steel and masonry. It can also be used for fitting screws, installing fixtures and completing construction, carpentry, electrical, plumbing and maintenance work.
Package Contents
- Milwaukee M18FPD3-0X Percussion Drill
- Side handle
- Reversible belt clip
- Milwaukee HD Box
- Battery and charger not included
The official Milwaukee page lists the side handle, belt clip and HD Box with this tool version.
Safety Note
Wear eye and hearing protection while drilling. Hold the tool firmly with both hands during demanding work and use the side handle. Remove the battery before changing drill bits, adjusting the chuck or cleaning the tool.
