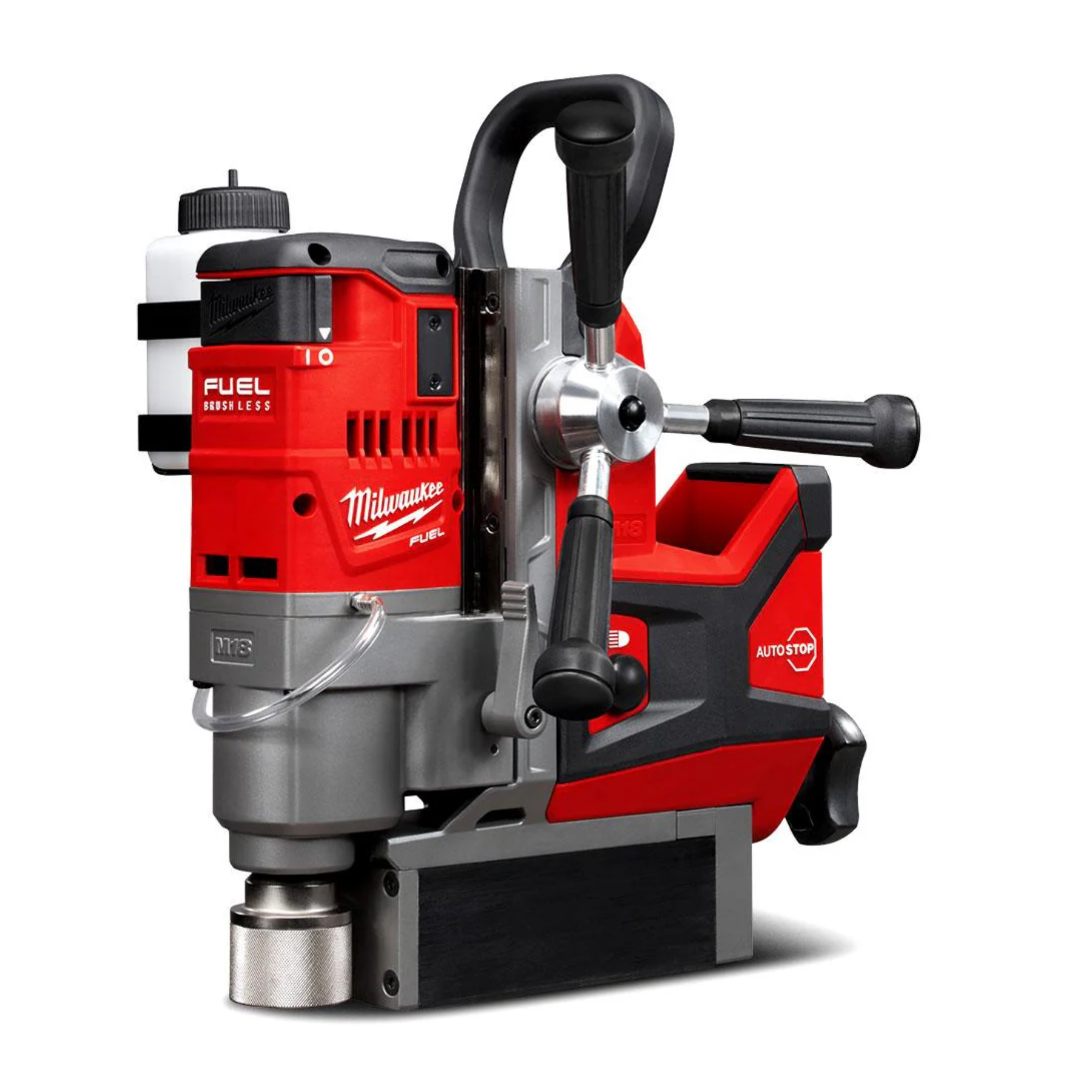

Red and gray Milwaukee power tool on a white background

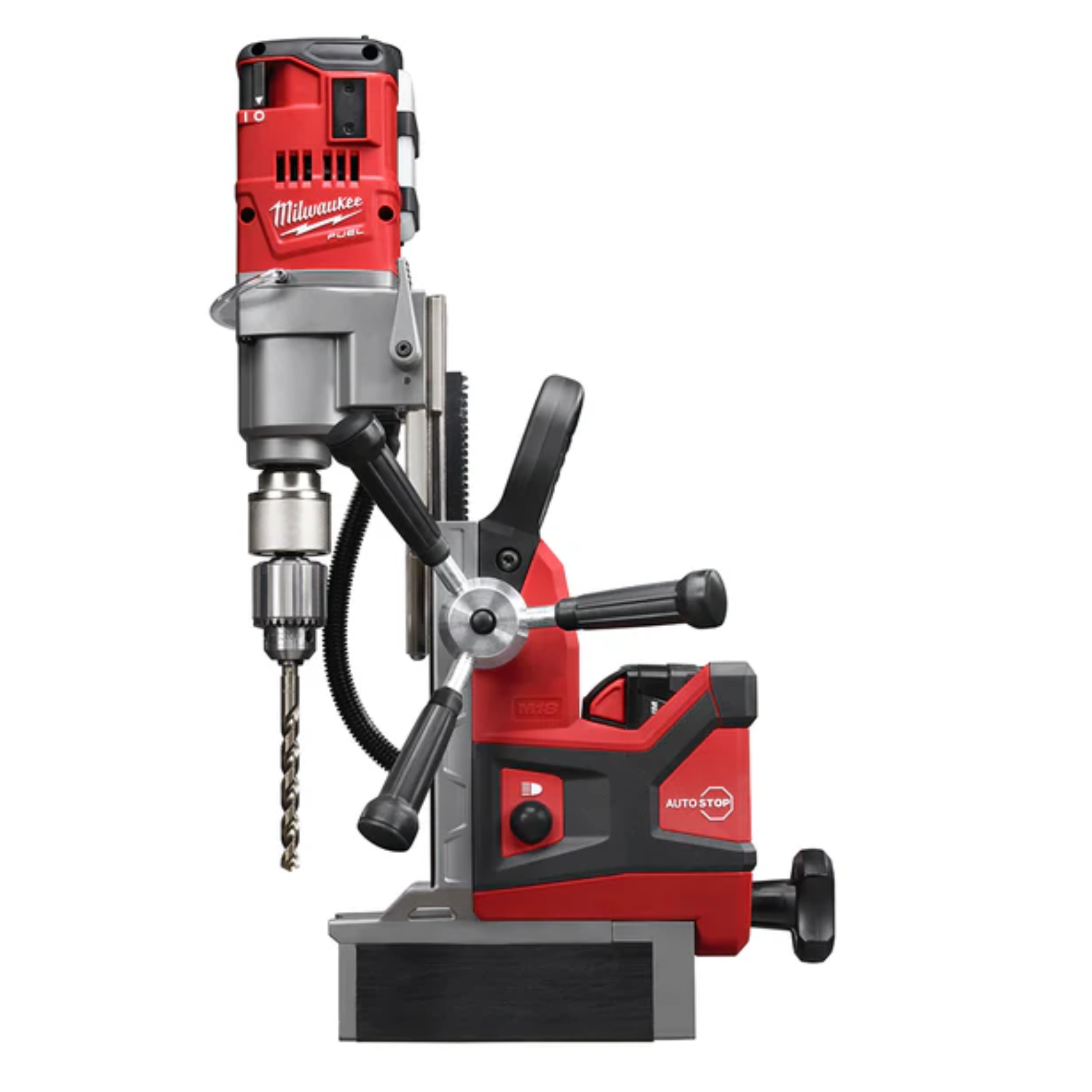

Red and black Milwaukee drill press on a white background
Red and gray Milwaukee power tool on a white background
Red and black Milwaukee drill press on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Milwaukee M18FMDP-0c 38mm Magnetic Drill Stand Zero

SKU: M18FMDP-0C
525.000 KD
In stock

Milwaukee M18FMDP-0C M18 FUEL Brushless 38mm Magnetic Drilling Press is designed for drilling accurate holes in steel. Its permanent magnet provides 8890N of holding force, while the two-speed gearbox offers 400 and 690 RPM settings. It supports annular cutters up to 38mm and standard drill bits up to 13mm. The AUTOSTOP system turns off the drill if it detects too much movement, helping provide safer operation.

Specifications

Specification Details
Brand Milwaukee
Model M18FMDP-0C
Article Number 4933451636
EAN 4002395142330
Product Type Cordless Magnetic Drilling Press
Voltage 18V
Motor Type POWERSTATE Brushless
No-Load Speed 400 / 690 RPM
Speed Settings 2
Maximum Annular Cutter Diameter 38mm
Maximum Annular Cutter Depth 50mm
Maximum Standard Drill Bit Diameter 13mm
Tool Holder Keyless 19mm Weldon
Magnetic Holding Force 8890N
Stroke Length 146mm
Safety System AUTOSTOP Lift-Off Detection
Work Light LED
Weight with M18 B5 Battery 13kg
Battery Compatibility All Milwaukee M18 Batteries
Battery Included No
Charger Included No
Storage Kitbox

Key Features

  • Maximum drilling capacity of 38mm
  • Strong permanent magnetic base
  • Magnetic holding force of 8890N
  • Two drilling speeds: 400 and 690 RPM
  • AUTOSTOP turns off the drill if too much movement is detected
  • Keyless 19mm Weldon holder
  • Tool-free handle fits on the left or right side
  • 146mm stroke supports different accessories
  • Built-in LED light improves visibility
  • On-board lubrication tank
  • POWERSTATE brushless motor
  • Compatible with all Milwaukee M18 batteries

Applications

Suitable for drilling holes in steel beams, metal plates, frames and other magnetic steel surfaces. It is useful for steelwork, construction, fabrication, machinery repair and industrial maintenance.

Package Contents

  • Milwaukee M18FMDP-0C Magnetic Drilling Press
  • Lubrication tank with hose
  • Magnetic lubrication tank holder
  • 13mm drill chuck with Weldon adapter
  • Chuck key
  • Ejector pin
  • Safety strap
  • Kitbox
  • Battery not included
  • Charger not included

Safety Note

Always secure the drill with the supplied safety strap before starting. Clean the steel surface so the magnet can hold properly, and never use it on thin or non-magnetic material. Wear eye, hearing and hand protection, and remove the battery before changing cutters or drill bits.
