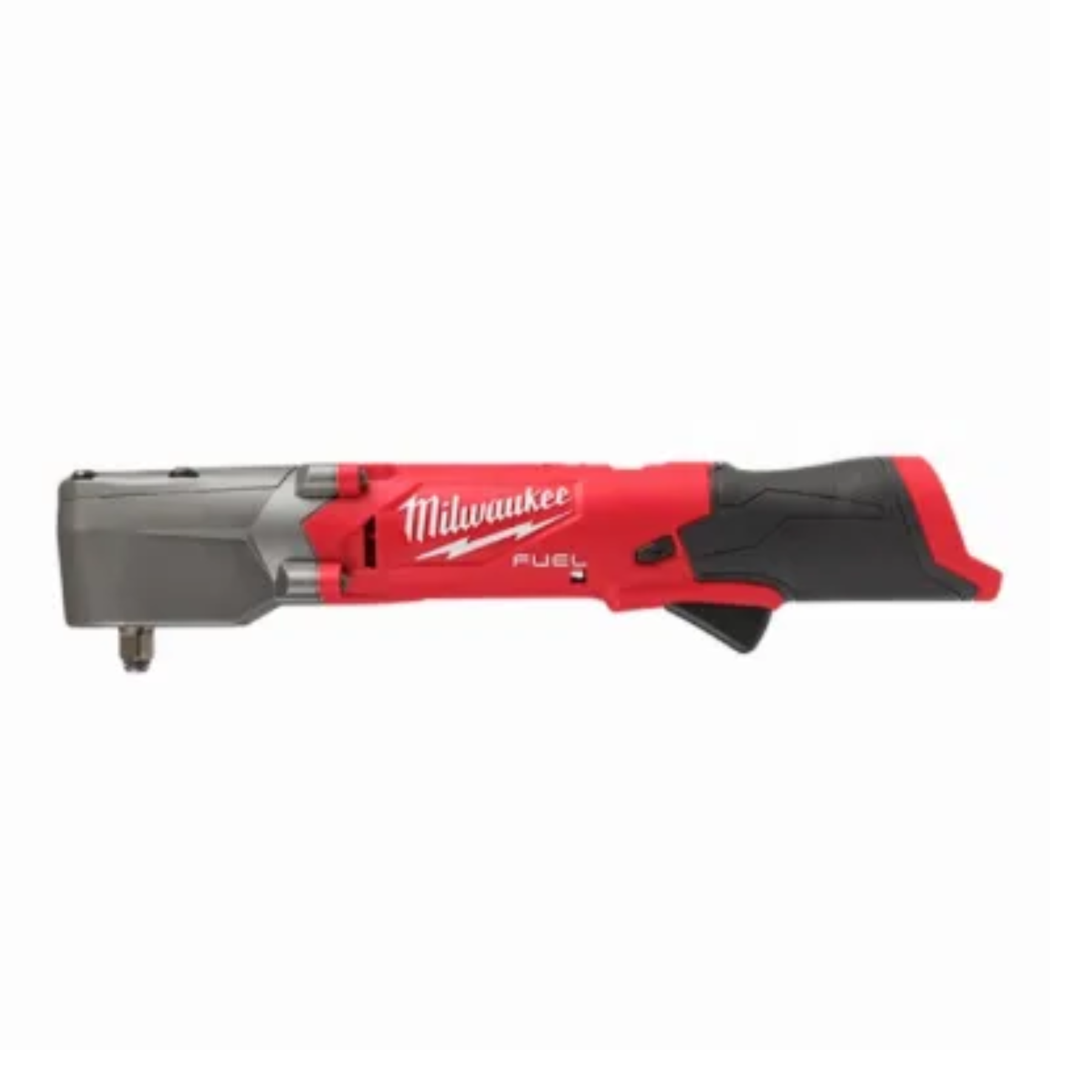

Milwaukee M12FRAIWF38-0 M12 FUEL Brushless Right Angle Impact Wrench 270nm (Bare Tool)
Couldn't load pickup availability
Milwaukee M12FRAIWF38-0 M12 FUEL Brushless Right-Angle Impact Wrench 270Nm (Bare Tool) is designed for tightening and removing fasteners in deep or narrow spaces. Its POWERSTATE™ brushless motor delivers 270Nm fastening torque and up to 300Nm nut-removal torque. The long body and compact 71mm head provide easier access around engines, machines and pipework. Four DRIVE CONTROL modes help users manage the tool’s speed and power.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | M12 FRAIWF38-0 |
| Product Number | 4933471700 |
| Product Type | Cordless Right-Angle Impact Wrench |
| Battery Platform | Milwaukee M12™ |
| Voltage | 12V |
| Motor Type | POWERSTATE™ Brushless |
| Drive Size | 3/8" Square |
| Anvil Type | Friction Ring |
| Maximum Fastening Torque | 270Nm |
| Nut-Removal Torque | 300Nm |
| Operating Modes | 4 |
| No-Load Speed | 0–1550 / 0–2300 / 0–3000 / 0–3000 RPM |
| Impact Rate | 0–1350 / 0–2700 / 0–3600 IPM |
| Maximum Bolt Size | M16 |
| Head Width | 71mm |
| Tool Length | Approximately 338mm |
| Tool Weight Without Battery | Approximately 1.3kg |
| Weight With Battery | Approximately 1.7kg |
| Work Light | LED |
| Battery Compatibility | All Milwaukee M12™ Batteries |
| EAN | 4058546295998 |
Key Features
- Delivers 270Nm of fastening torque
- Provides up to 300Nm of nut-removal torque
- Right-angle head reaches difficult fasteners
- Compact 71mm head design
- Four-mode DRIVE CONTROL system
- Auto shut-off mode helps prevent overtightening
- Bolt-removal mode slows down after releasing a bolt
- POWERSTATE™ brushless motor
- 3/8" friction-ring anvil for quick socket changes
- LED light improves visibility
- Rubber-covered handle provides a comfortable grip
- Compatible with all Milwaukee M12™ batteries
Applications
Suitable for working on vehicle engines, suspension parts, machinery, pipe systems and other equipment with limited access. It is useful for automotive repair, maintenance, assembly and mechanical work.
Package Contents
- Milwaukee M12FRAIWF38-0 Right-Angle Impact Wrench
- Battery not included
- Charger not included
- Carrying case not included
- Impact sockets not included
Safety Note
Wear safety glasses and hearing protection during use. Use only impact-rated sockets made for a 3/8" square drive. Remove the battery before changing sockets or cleaning the tool. Use a torque wrench when a fastener requires an exact final torque.
