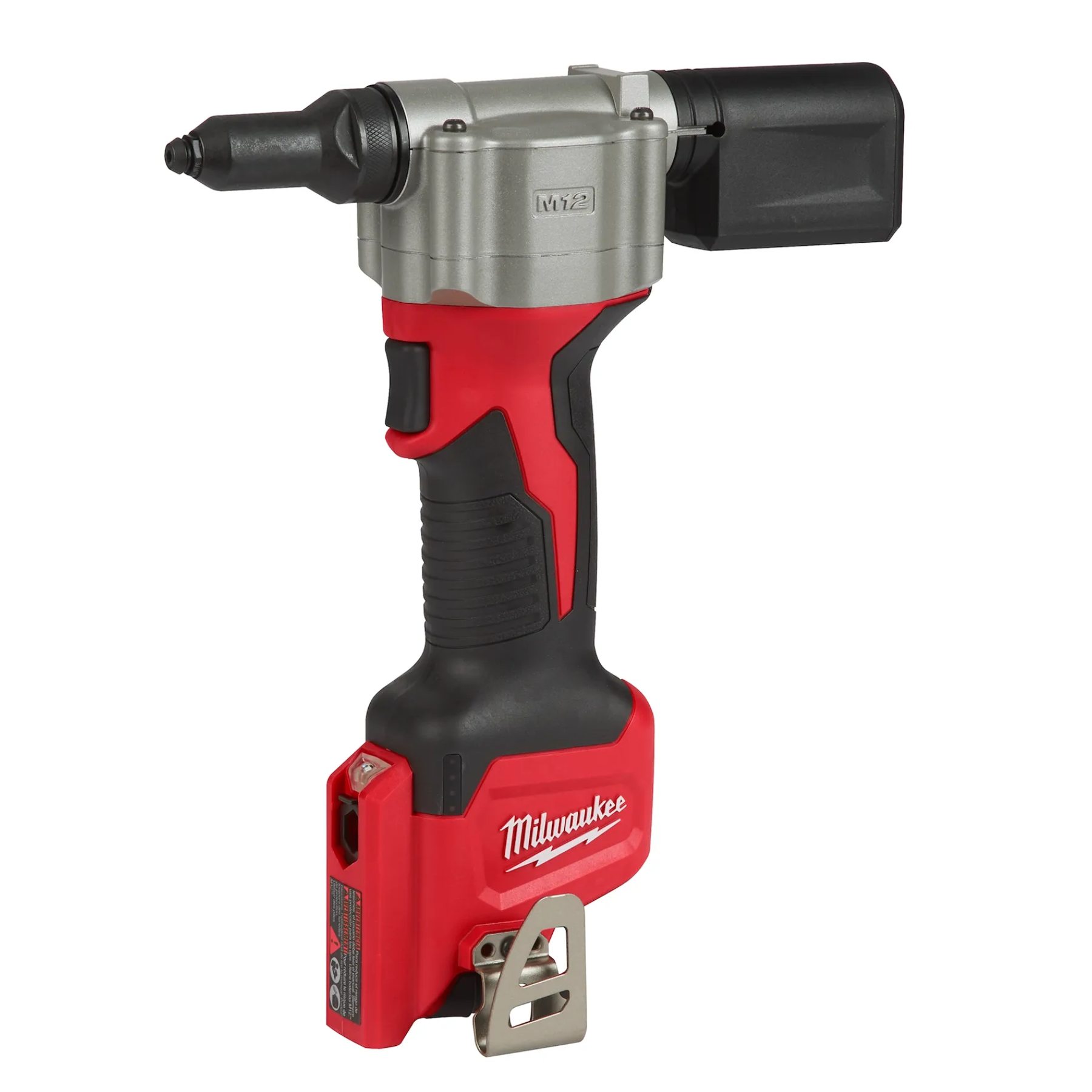

Milwaukee M12BPRT-0 Brushed Sub Compact Rivet Tool
Couldn't load pickup availability
Milwaukee M12BPRT-0 Brushed Sub Compact Rivet Tool is a cordless tool made for quickly fitting blind rivets. It works with aluminium, steel, stainless-steel and copper rivets from 2.4–4.8mm. Its 9000N pulling force and 20.32mm stroke allow many rivets to be fitted in one pull. This bare tool works with Milwaukee M12 batteries, which are sold separately.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | M12 BPRT-0 |
| Product Number | 4933464404 |
| Product Type | Cordless Blind Rivet Tool |
| Battery System | Milwaukee M12 |
| Voltage | 12V |
| Motor Type | Brushed |
| Maximum Pulling Force | 9000N |
| Rivet Diameter Range | 2.4–4.8mm |
| Stroke Length | 20.32mm |
| Suitable Rivet Materials | Aluminium, Steel, Stainless Steel and Copper |
| Maximum Rivets per Charge | Up to 325 × 4.8mm Stainless-Steel Rivets with an M12 B2 Battery |
| Nose-Piece Sizes | 2.4, 3.2, 4.0 and 4.8mm |
| Work Light | LED |
| Battery-Level Indicator | Yes |
| Tool-Free Jaw Access | Yes |
| Weight Without Battery | Approximately 1.88kg |
| Weight With M12 B2 Battery | Approximately 2.1kg |
| Battery Included | No |
| Charger Included | No |
| Carry Case Included | No |
| EAN | 4058546223496 |
Key Features
- Pulling force of up to 9000N
- Fits rivets from 2.4–4.8mm
- Suitable for four common rivet materials
- 20.32mm stroke supports one-pull riveting
- Nose pieces hold rivets in different working positions
- Tool-free jaw access makes cleaning easier
- Built-in storage for spare nose pieces
- Collection box catches used rivet pins
- LED light improves visibility
- Belt hook and lanyard connection point
- Compatible with all Milwaukee M12 batteries
Applications
Suitable for metal fabrication, vehicle body repairs, ventilation work, roofing, signs, gutters, sheet-metal fitting and other jobs that use blind rivets.
Package Contents
- Milwaukee M12BPRT-0 rivet tool
- Four nose pieces: 2.4, 3.2, 4.0 and 4.8mm
- Rivet-pin collection box
- Nose-piece removal tool
- Allen key
- Belt hook
- Battery not included
- Charger not included
- Carry case not included
Safety Note
Wear eye and hand protection while fitting rivets. Select the correct nose piece for the rivet size and keep fingers away from the tool head. Remove the battery before cleaning the jaws or changing a nose piece.
