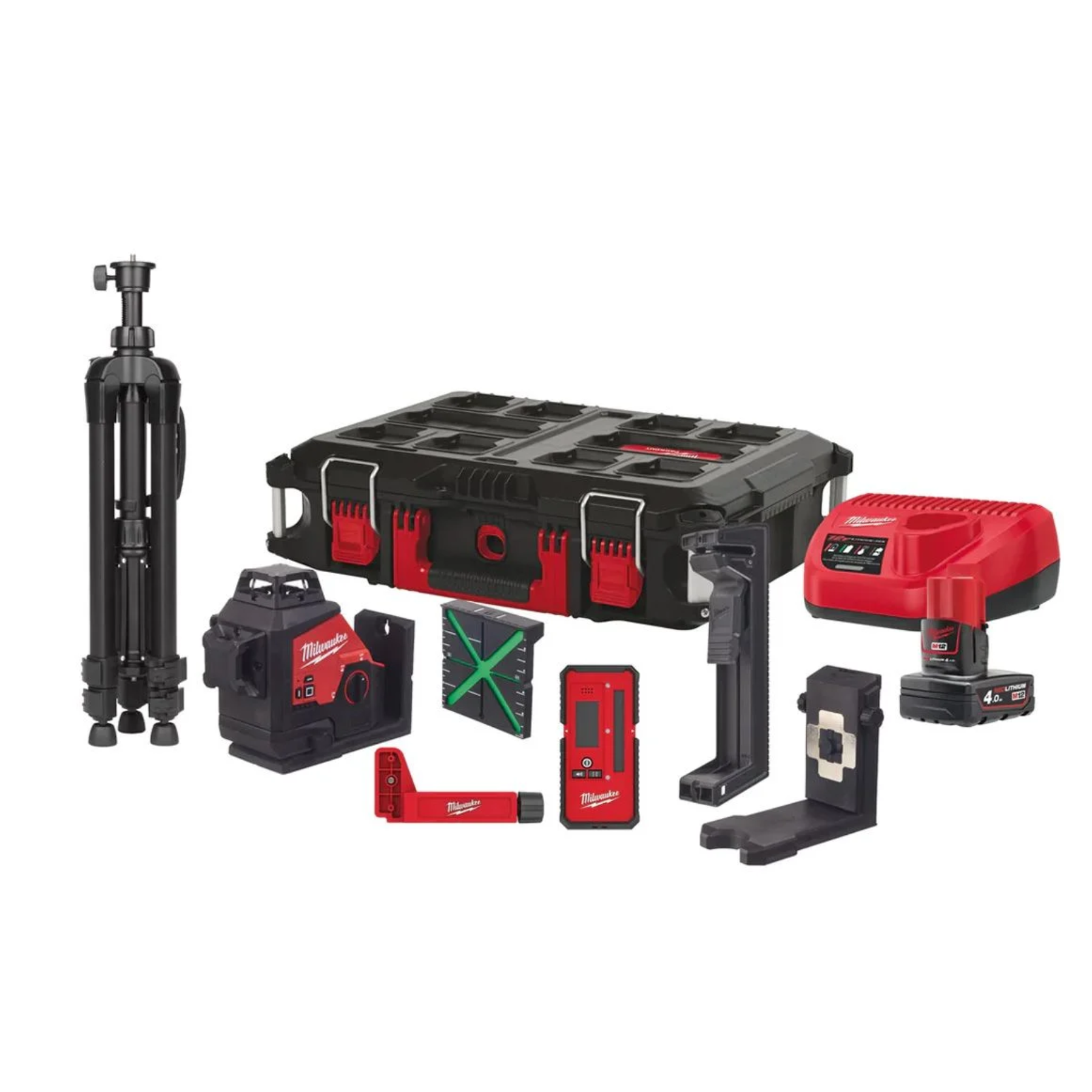

Collection of Milwaukee tools and equipment on a white background

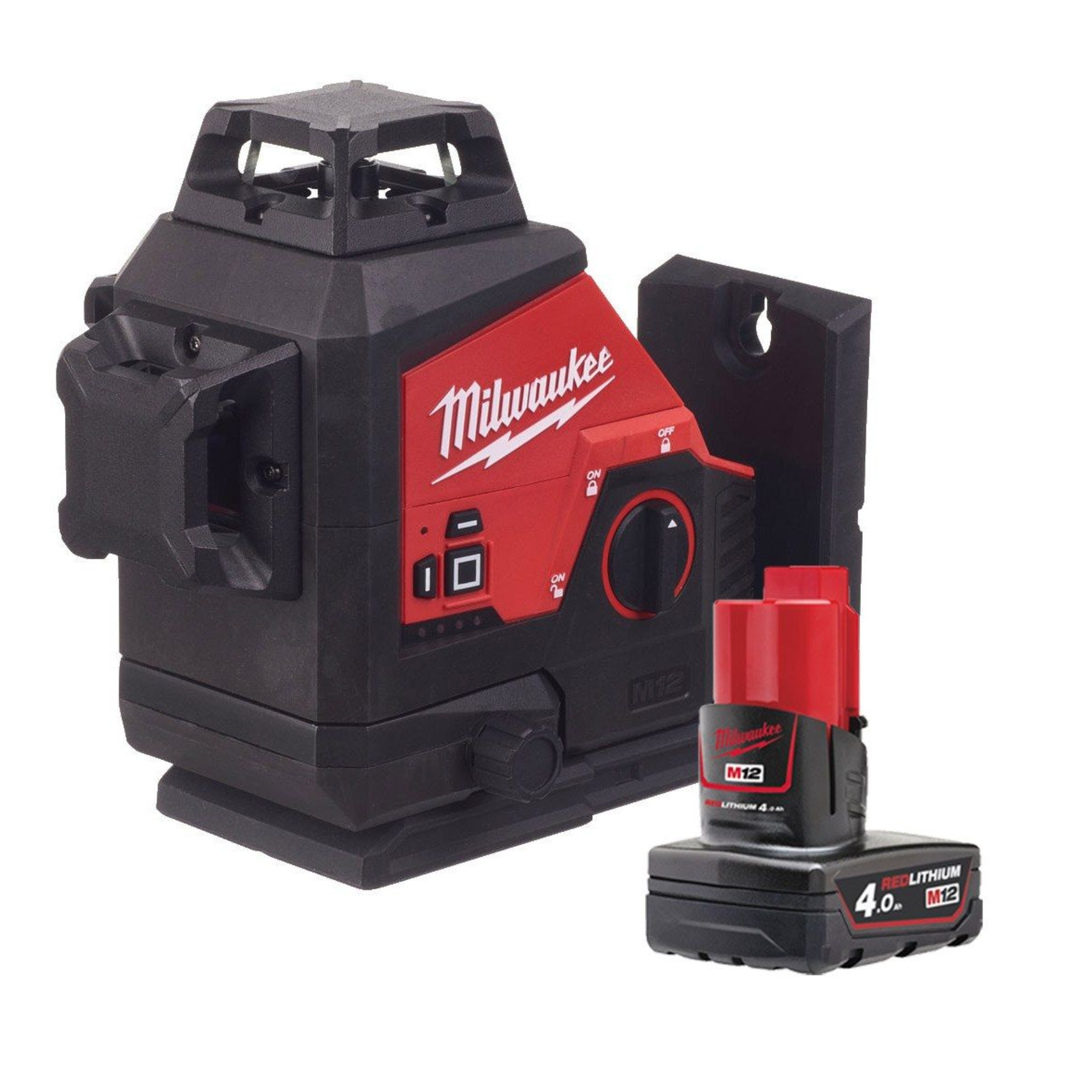

Milwaukee laser level with battery on a white background
Collection of Milwaukee tools and equipment on a white background
Milwaukee laser level with battery on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Milwaukee M12 3PLKIT-401P Green 360 Degree 3 Plane Laser Kit

SKU: M12 3PLKIT-401P
435.000 KD
In stock

Milwaukee M12 3PLKIT-401P Green 360 Degree 3 Plane Laser Kit projects one horizontal and two vertical 360° green laser lines. It helps with fast levelling, alignment, square layouts and point transfers across large rooms. The bright green lines have a visible working range of up to 38m, while the supplied detector extends the range. This complete kit includes a 4.0Ah battery, charger, detector, tripod, mounts and a PACKOUT storage box.

Specifications

Specification Details
Brand Milwaukee
Model M12 3PLKIT-401P
Product Type Cordless Three-Plane Laser Level
Article Number 4933478960
Voltage 12V
Laser Colour Green
Laser Projection 3 × 360°
Laser Lines 1 Horizontal and 2 Vertical
Visible Working Range Up to 38m
Range with LLD50 Detector Up to 50m
Maximum Range with Compatible Detector Up to 100m
Accuracy ±0.3mm/m
Self-Levelling Range ±4°
Self-Levelling Time 3 Seconds
Operating Modes Manual, Self-Levelling and Pendulum Lock
Bracket Rotation 330°
Tripod Threads 1/4" and 5/8"
Protection Rating IP54
Drop Resistance Up to 1m
Battery Type Lithium-Ion
Battery Capacity 4.0Ah
Maximum Runtime 15+ Hours
Compatible Batteries All Milwaukee M12 Batteries
Laser Class Class 2
EAN 4058546362423

Key Features

  • Three full 360° green laser lines
  • One horizontal and two vertical lines
  • Bright green beams improve visibility
  • Visible working range of up to 38m
  • Supplied detector extends the working range
  • Accuracy of ±0.3mm per metre
  • Self-levelling completes in around three seconds
  • Manual mode allows angled laser lines
  • Pendulum lock protects the laser during transport
  • Magnetic bracket attaches to metal surfaces
  • Fine adjustment knob supports accurate positioning
  • IP54-rated body resists water and dust
  • Runs for more than 15 hours with the supplied battery

Applications

Suitable for installing cabinets, doors, windows, ceilings, tiles, partitions, pipes and electrical fittings. It can also be used for floor layouts, wall alignment, levelling and square marking in large indoor areas.

Package Contents

  • Milwaukee M12 3PL Green 360° three-plane laser
  • One M12 B4 4.0Ah battery
  • C12 C battery charger
  • LLD50 laser detector
  • LM360 laser mount
  • TRP120 1.2m tripod
  • HI-VIST target plate
  • Track clip
  • PACKOUT storage box

Safety Note

Never look directly into the green laser beam or point it toward another person. Keep the laser away from children and use the pendulum lock before moving or storing it. Remove the battery before cleaning the unit.
