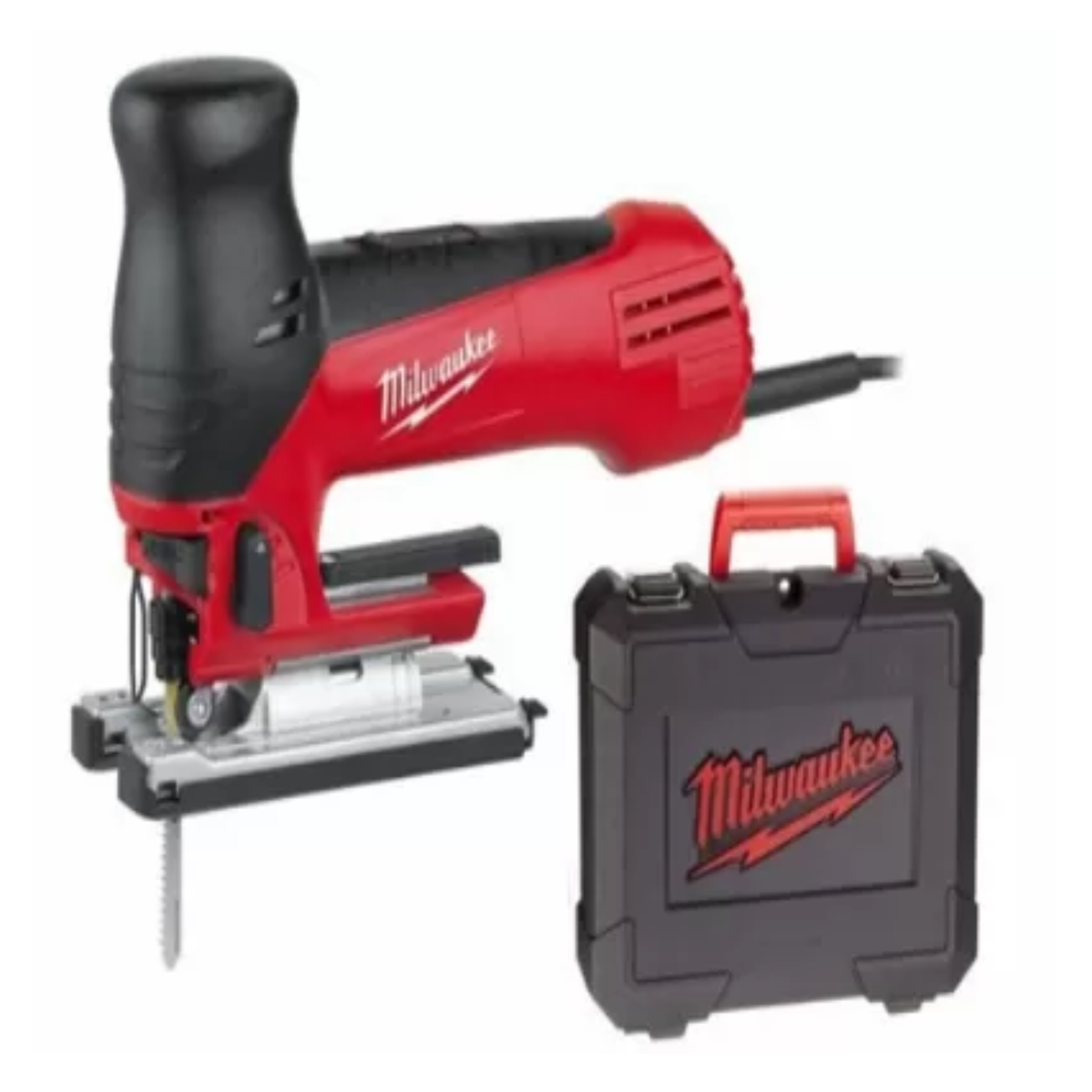

Milwaukee JS120X Jig Saw Barrel Shape Handle 710W
Couldn't load pickup availability
Milwaukee JS120X Jig Saw Barrel Shape Handle 710W is a corded cutting tool made for straight, curved and angled cuts. Its 710W motor and adjustable speed of 500–2800 strokes per minute provide control across wood, steel, aluminium and plastic. The slim barrel-style body allows the user to hold the saw closer to the cutting area. Its FIXTEC system supports quick blade changes and base adjustment without extra tools.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | JS120X |
| Product Code | 4933381680 |
| Product Type | Corded Barrel-Grip Jigsaw |
| Power Input | 710W |
| Power Output | 390W |
| No-Load Stroke Rate | 500–2800 SPM |
| Stroke Length | 26mm |
| Pendulum Settings | 4 |
| Maximum Cutting Depth in Wood | 120mm |
| Maximum Cutting Depth in Aluminium | 30mm |
| Maximum Cutting Depth in Steel | 10mm |
| Maximum Bevel Angle | 45° |
| Speed Control | Adjustable |
| Blade Change | Tool-Free FIXTEC |
| Power Cable Length | 4m |
| Weight | 2.3kg |
| EAN | 4002395234677 |
Key Features
- Powerful 710W motor
- Adjustable speed from 500–2800 SPM
- Cuts wood up to 120mm deep
- Four-stage pendulum action
- Barrel-shaped handle provides close control
- FIXTEC system allows tool-free blade changes
- Base adjusts quickly for bevel cuts
- Supports angled cuts up to 45°
- Soft start provides smoother operation
- Constant-speed control supports steady cutting
- Low-vibration system improves comfort
- Built-in dust extraction connection
- Clear view of the blade and cutting line
- Strong metal parts support long tool life
Applications
Suitable for making straight cuts, curved cuts, internal openings and bevel cuts in wood, plywood, plastic, aluminium and steel. It is useful for carpentry, cabinet making, flooring, kitchen fitting and general construction work.
Package Contents
- Milwaukee JS120X Jigsaw
- Five jigsaw blades
- Anti-splinter guard
- Plastic sliding shoe
- Dust extraction connection
- Carrying case
Safety Note
Wear safety glasses, hearing protection and a dust mask during use. Secure the material firmly and keep your hands away from the moving blade. Disconnect the power before changing the blade or adjusting the base.
