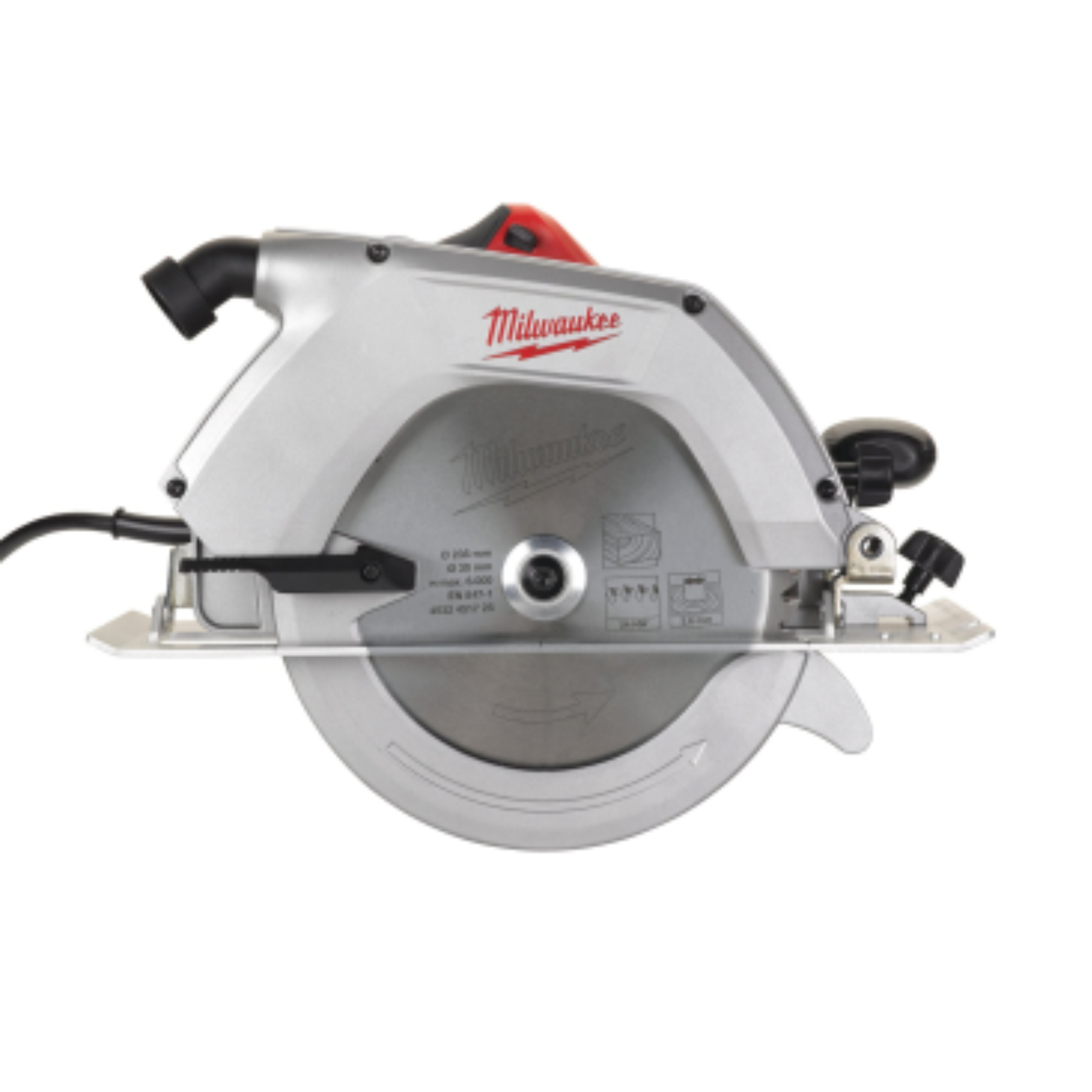

Milwaukee CS85SB 235mm Circular Saw
Couldn't load pickup availability
Milwaukee CS85SB 235mm Circular Saw is a powerful corded tool made for cutting thick wood, boards and building timber. Its 2200W motor turns the 235mm blade at up to 4500 RPM and provides a maximum cutting depth of 85mm. The saw can tilt up to 50° for angled cuts, while soft start provides smoother and safer starting. Its strong aluminium base helps keep the saw steady during use.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | CS85SB |
| EU Product Code | 4933451117 |
| Product Type | Corded Circular Saw |
| Power | 2200W |
| Voltage | 220–240V AC |
| No-Load Speed | 4500 RPM |
| Blade Diameter | 235mm / 9¼″ |
| Blade Bore | 30mm |
| Maximum Cutting Depth at 90° | 85mm |
| Maximum Cutting Depth at 45° | 67mm |
| Maximum Bevel Angle | 50° |
| Soft Start | Yes |
| Spindle Lock | Yes |
| Dust Connection | DEK26 Compatible |
| Base Material | Aluminium |
| Weight | Approximately 6.6kg |
Key Features
- Strong 2200W electric motor
- Large 235mm cutting blade
- Maximum cutting depth of 85mm
- Cuts up to 67mm deep at a 45° angle
- Adjustable bevel angle up to 50°
- No-load speed of 4500 RPM
- Soft start provides smoother operation
- Spindle lock makes blade changing easier
- Aluminium base provides strength and stability
- DEK26 dust connection supports cleaner work
- Side fence helps guide straight cuts
- Easy-access cable cover supports simpler cable replacement
Applications
Suitable for cutting solid timber, thick wooden boards, plywood, MDF, OSB and other suitable wood materials. It can be used for roofing, framing, flooring, carpentry and general construction work with the correct blade.
Package Contents
- Milwaukee CS85SB Circular Saw
- 235mm saw blade
- Parallel side fence
- Blade-changing key
- User manual
- Carrying case not included
Safety Note
Wear eye, hearing and dust protection while cutting. Make sure the material is firmly supported and keep both hands away from the blade. Use only a 235mm blade with the correct bore and speed rating. Disconnect the saw from power before changing the blade, adjusting it or cleaning it.
