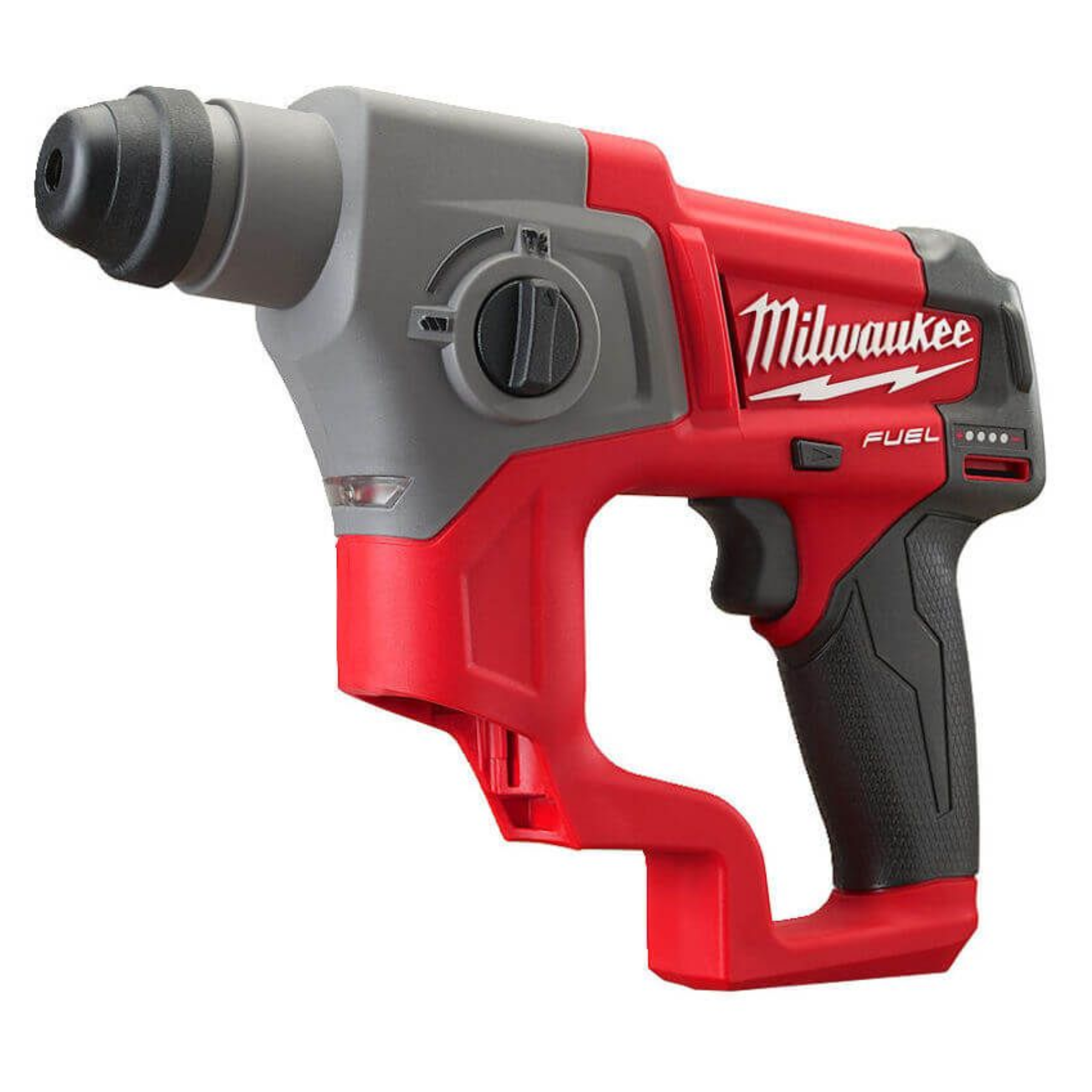

Milwaukee M12CH-0 12V Brushless Rotary Hammer Sds Plus (Bare Tool)
Couldn't load pickup availability
Milwaukee M12CH-0 12V Brushless Rotary Hammer SDS Plus (Bare Tool) is a compact cordless hammer designed for drilling into concrete, brick, wood and steel. Its brushless motor delivers 1.1J of impact energy with up to 6575 blows per minute. Two operating modes allow users to choose hammer drilling or normal rotary drilling. This bare tool works with Milwaukee M12 batteries, which are sold separately.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Model | M12 CH-0 |
| Product Number | 4933441947 |
| Product Type | Cordless Rotary Hammer |
| Battery System | Milwaukee M12 FUEL |
| Voltage | 12V |
| Motor Type | POWERSTATE Brushless |
| Tool Holder | SDS Plus |
| Impact Energy | 1.1J |
| No-Load Speed | 0–900 RPM |
| Maximum Impact Rate | 0–6575 BPM |
| Operating Modes | Rotary Drilling and Hammer Drilling |
| Maximum Drilling in Concrete | 13mm |
| Recommended Drilling in Concrete | 6–10mm |
| Maximum Drilling in Wood | 13mm |
| Maximum Drilling in Steel | 10mm |
| Vibration Level | Approximately 4.4m/s² |
| Work Light | LED |
| Battery-Level Indicator | Yes |
| Tool Length | Approximately 255mm |
| Weight With Battery | Approximately 1.7kg |
| Battery Included | No |
| Charger Included | No |
| Carry Case Included | No |
| EAN | 4002395002719 |
Key Features
- Brushless motor for longer working life
- SDS Plus bit connection
- Impact energy of 1.1J
- Up to 6575 blows per minute
- Maximum drilling capacity of 13mm in concrete
- Two operating modes
- Low vibration for more comfortable use
- Small body for narrow work areas
- REDLINK PLUS overload protection
- Built-in LED work light
- Compatible with all Milwaukee M12 batteries
Applications
Suitable for drilling fixing holes in concrete, brick and masonry. The rotary-only mode can also drill into wood, metal and plastic when used with the correct SDS Plus bit or chuck adapter.
Package Contents
- Milwaukee M12CH-0 rotary hammer
- Battery not included
- Charger not included
- Drill bits not included
- Carry case not included
Safety Note
Wear eye, hearing and dust protection during use. Check walls for hidden wires and water pipes before drilling. Use a suitable SDS Plus bit and remove the battery before changing bits or cleaning the tool.
