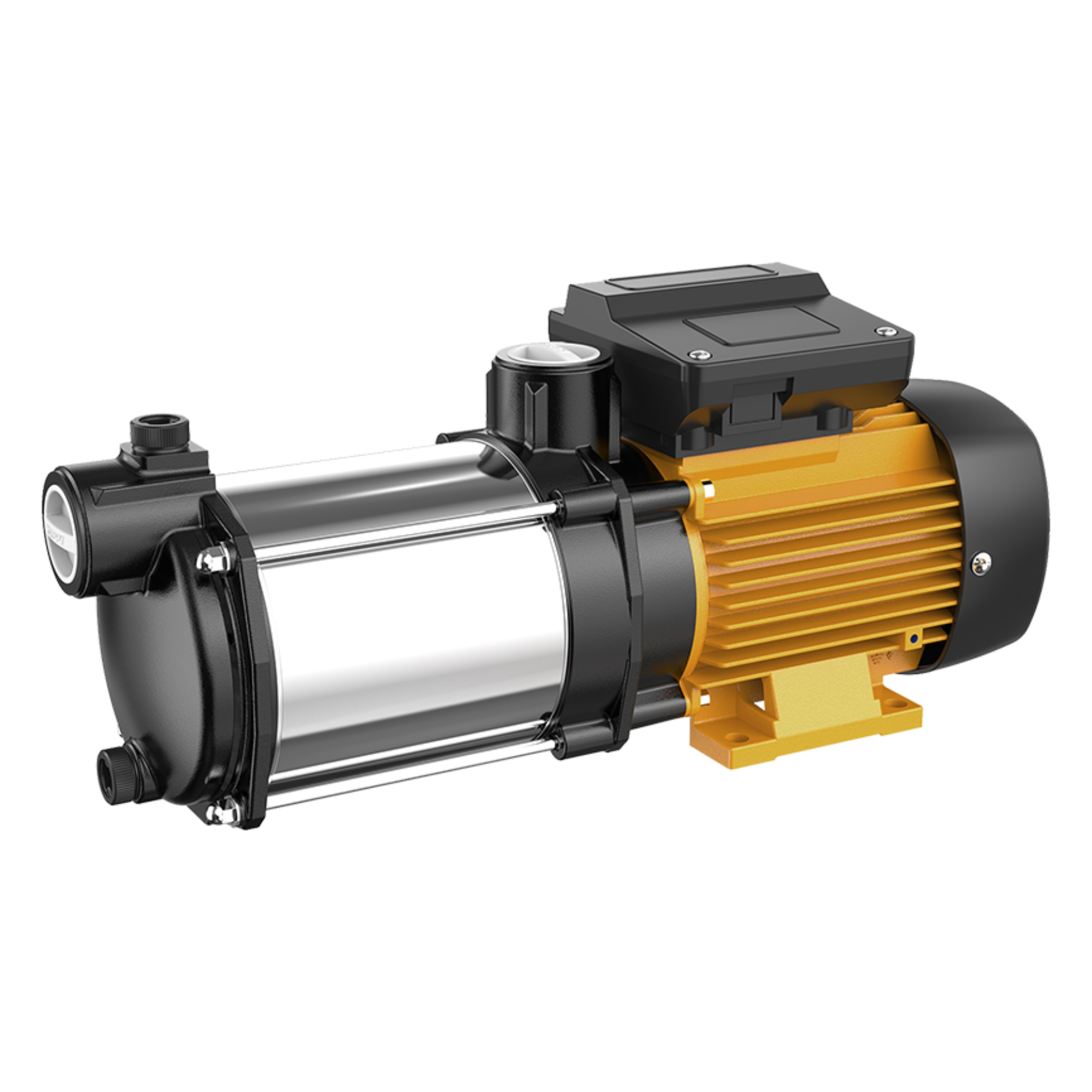

Horizontal Multistage Pump 1HP MD-HWP4001

50.000 KD

In stock

Specification Category	Technical Detail & Measurement
Model Number	MD-HWP4001
Pump Configuration	Horizontal Multistage Centrifugal Pump
Rated Motor Power	1.0 HP (0.75 kW)
Operating Voltage	Single-Phase 220V–240V ~ 50Hz
Inlet / Suction Port Size	1 Inch Female Threaded (G 1")
Outlet / Discharge Port Size	1.25 Inch Female Threaded (G 1-1/4")
Maximum Dynamic Head	38 to 45 Meters (Depending on system setup)
Maximum Flow Velocity	80 to 100 Liters/minute (Max)
Impeller Infrastructure	Multistage Series Connected Stainless Steel AISI 304 or PPO Impellers
Outer Shell Construction	Heavy-Duty Cast Iron Ends with Stainless Steel 304 Central Body Jacket
Thermal Security Assembly	Built-in automatic thermal overload cut-off protection
Acoustic Performance	Super silent, low-vibration continuous operation
Primary Applications	Residential pressure boosting systems, multi-story buildings, domestic irrigation, and HVAC transfer
