Bosch LR6 Receiver
Couldn't load pickup availability

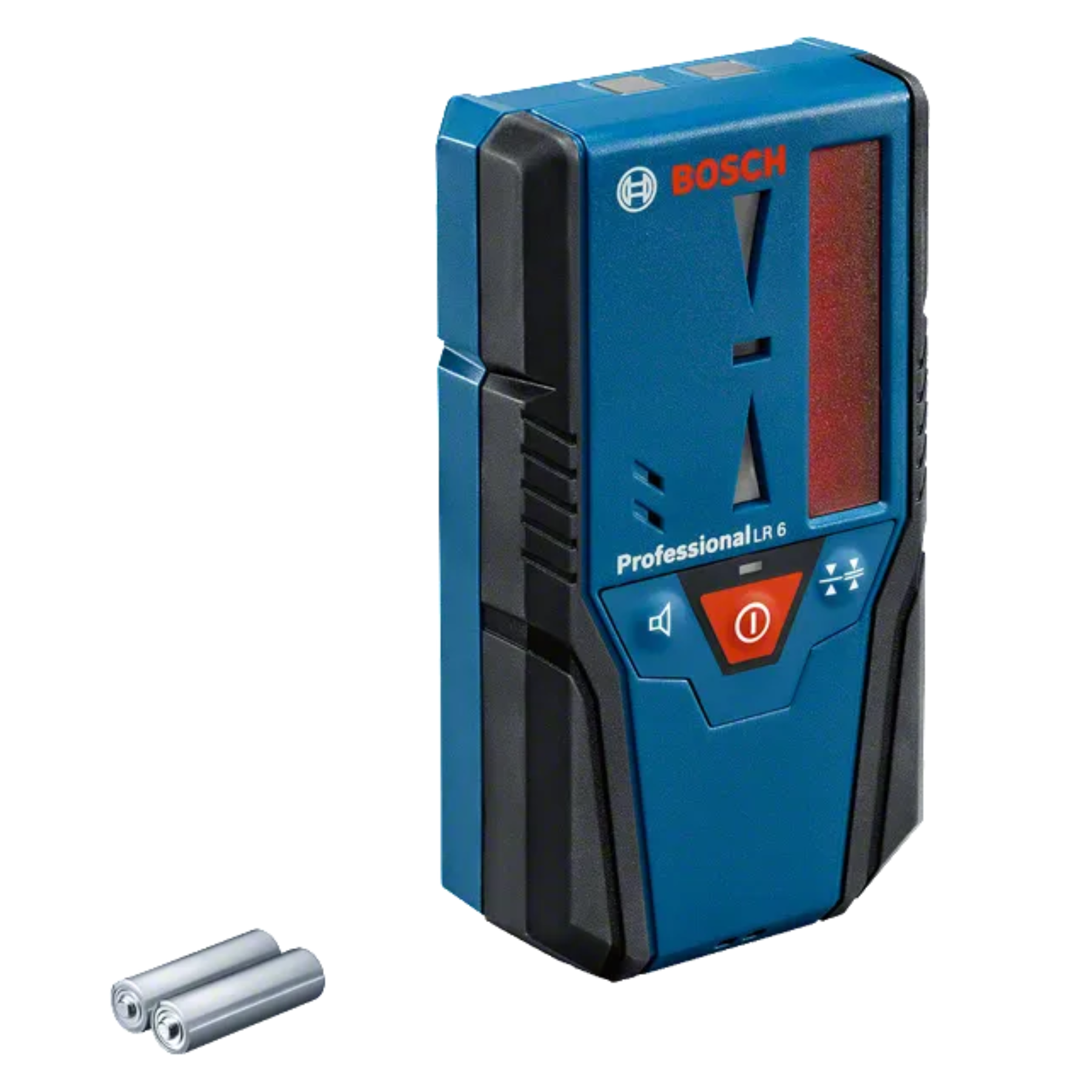

Bosch LR 6 Professional is a compact laser receiver designed to detect the laser lines of compatible Bosch combination and line lasers, extending their usability in bright lighting conditions and over longer distances. It provides visual LED and audible signals for easy alignment and offers fine and coarse measuring accuracy of ±1mm and ±3mm. With IP54 protection and a lightweight 0.12kg design, it is well suited for professional construction and leveling applications.
Specifications
| Specification | Details |
|---|---|
| Model | LR 6 Professional |
| Order Number | 0 601 069 H00 |
| Part Number | 3601K69H00 |
| Type | Laser Receiver |
| Compatible Lasers | Combination and line lasers |
| Reception Range | Up to 50m |
| Measuring Accuracy – Fine | ±1.0mm |
| Measuring Accuracy – Coarse | ±3.0mm |
| Reception Angle | 90° |
| Power Supply | 2 × 1.5V AAA batteries |
| Operating Time | Approx. 30 hours |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 69 × 28 × 123mm |
| Weight | Approx. 0.12kg |
Key Features
- Detects laser lines for extended working distances.
- Suitable for Bosch combination and line lasers.
- Fine and coarse accuracy settings.
- Visual LED and audible signals for easy alignment.
- 90° reception angle.
- IP54 protection against dust and splash water.
- Compact and lightweight design.
- Suitable for use in various lighting conditions.
Applications
- Laser leveling
- Construction alignment
- Interior installation
- Drywall and ceiling installation
- Electrical and plumbing alignment
- Outdoor leveling with compatible line lasers
- General professional measurement work
Package Contents
- Bosch LR 6 Professional Laser Receiver
- 2 × 1.5V AAA batteries
The listed Bosch 0 601 069 H00 variant includes two AAA batteries.
Safety Note
Do not hold the laser receiver close to your ear when the audible signal is active. Use the receiver according to the manufacturer's instructions and protect it from impacts and improper handling.
