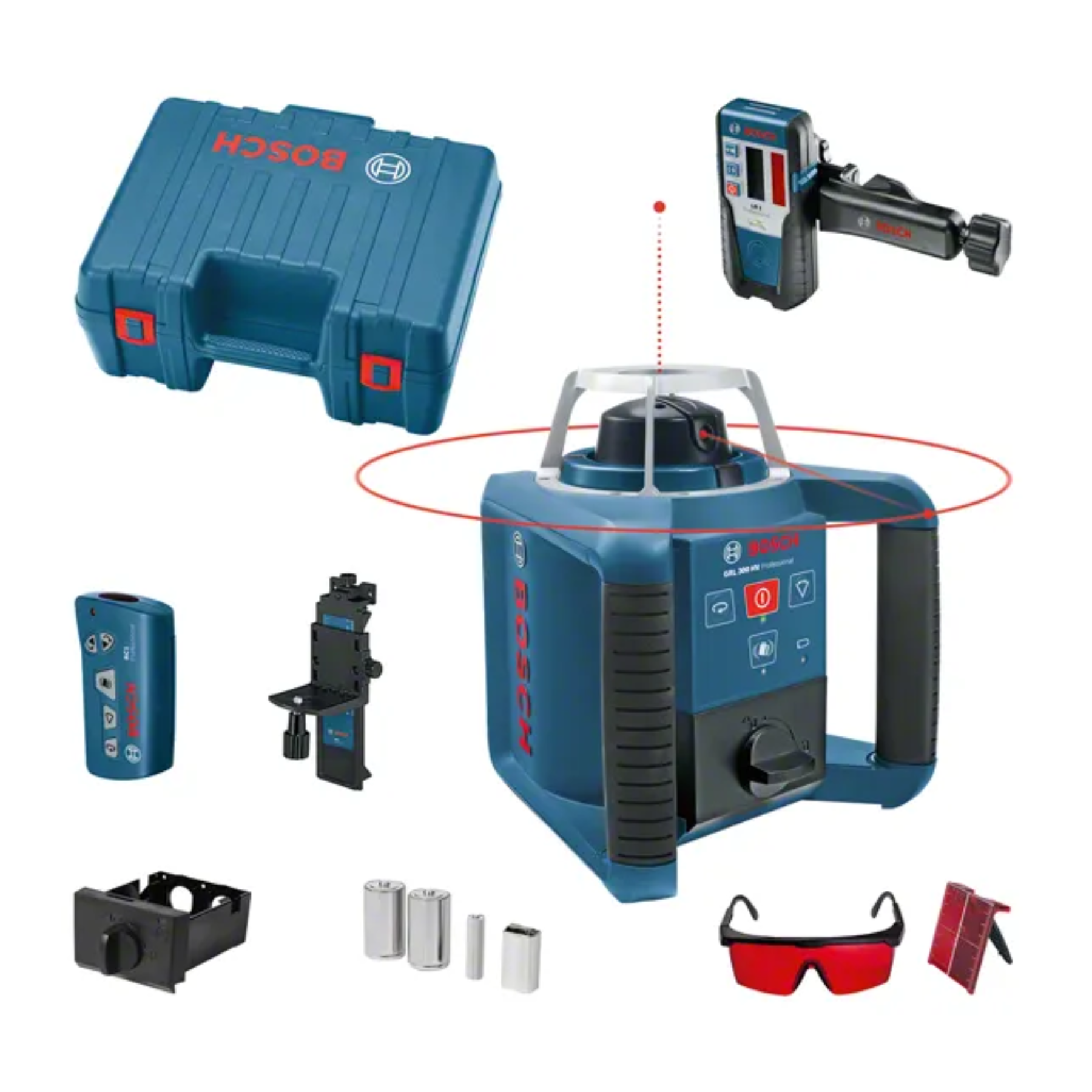

Bosch laser level with accessories on a white background
Bosch laser level with accessories on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Bosch GRL 150 HV Rotary Laser 300Mtr

275.000 KD
In stock

Bosch GRL 300 HV Professional is a robust rotary laser designed for precise horizontal and vertical leveling across construction sites. It provides a working range of up to 60m without a receiver and up to 300m in diameter when used with the LR 1 Professional receiver. The automatic self-leveling system works within ±5°, while selectable rotation speeds of 150, 300 and 600rpm provide flexibility for different applications. Its IP54 protection and shock warning function make it suitable for demanding professional jobsites.

Specifications

Specification Details
Model GRL 300 HV Professional
Order Number 0 601 061 501
Type Rotary Laser
Laser Colour Red
Laser Class Class 3R
Laser Diode 635nm, <5mW
Working Range Without Receiver 60m diameter
Working Range With Receiver 300m diameter
Accuracy ±3.0mm at 30m
Self-Leveling Range ±5° (8%)
Leveling Time Approx. 15 seconds
Rotation Speed 150 / 300 / 600rpm
Protection Rating IP54
Power Supply 2 × 1.5V LR20 (D) batteries
Weight Approx. 1.8kg
Operating Temperature -10°C to +50°C

Key Features

  • 300m diameter working range with the LR 1 Professional receiver.
  • Automatic self-leveling within ±5°.
  • Horizontal and vertical leveling capability.
  • Selectable rotation speeds of 150, 300 and 600rpm.
  • Shock warning function helps prevent leveling errors caused by vibration.
  • IP54 protection against dust and splash water.
  • Simple controls with one button for each main function.
  • Compatible with Bosch professional receivers and accessories.

Applications

  • Construction site leveling
  • Foundation and excavation work
  • Concrete and formwork leveling
  • Ceiling and floor leveling
  • Land and site surveying
  • Horizontal and vertical alignment
  • General professional construction applications

Package Contents

  • Bosch GRL 300 HV Professional Rotary Laser
  • LR 1 Professional Laser Receiver
  • RC 1 Professional Remote Control
  • WM 4 Professional Universal Holder
  • Laser target plate
  • Laser viewing glasses
  • Carrying case
  • Batteries

Safety Note

The Bosch GRL 300 HV uses a Class 3R laser. Do not look directly into the laser beam or direct it toward people or animals. Follow all manufacturer's safety instructions and applicable laser safety regulations.
