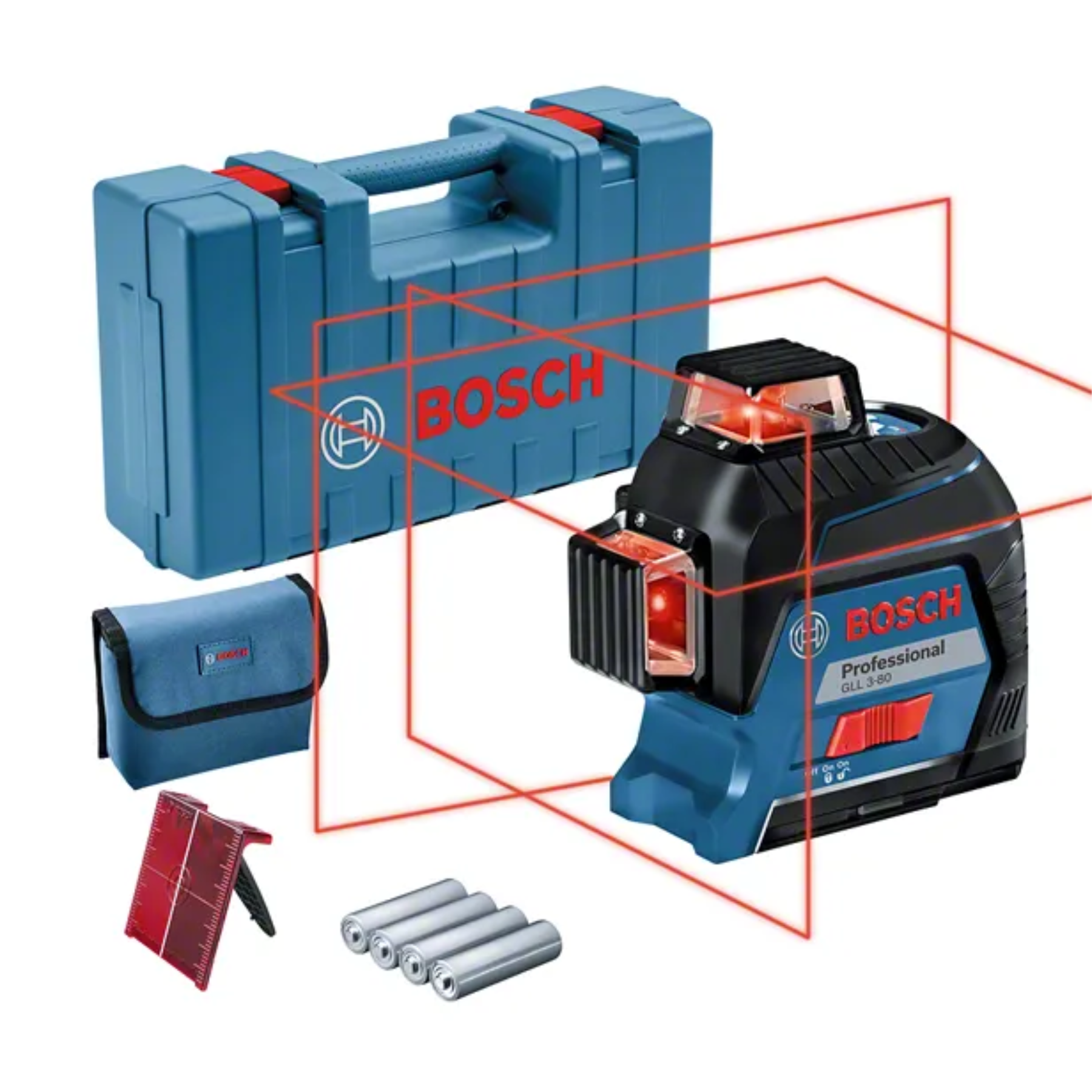

Bosch laser level with accessories and carrying case on a white background
Bosch laser level with accessories and carrying case on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Bosch GLL 3-80

155.000 KD
In stock

Bosch GLL 3-80 Professional is a versatile line laser designed for precise horizontal and vertical leveling in professional construction and installation applications. It projects three 360° red laser lines, allowing simultaneous leveling around an entire room. With a working range of up to 30m and up to 120m with a compatible receiver, it provides ±0.3mm/m accuracy and self-levels within ±4° in approximately 4 seconds. Its compact design and IP54 protection make it suitable for demanding professional jobsites.

Specifications

Specification Details
Model GLL 3-80 Professional
Order Number 0 601 063 S01
Type 3 × 360° Line Laser
Laser Colour Red
Laser Class Class 2
Working Range Up to 30m
Working Range with Receiver Up to 120m
Accuracy ±0.3mm/m
Self-Leveling Range ±4°
Leveling Time Approx. 4 seconds
Protection Rating IP54
Power Supply 4 × 1.5V AA batteries
Operating Time Up to 4 hours in 3-line mode
Tripod Thread 1/4", 5/8"
Compatible Receivers LR 6 / LR 7
Weight Approx. 0.82kg

Key Features

  • Projects three 360° red laser lines.
  • Enables simultaneous horizontal and vertical leveling.
  • Up to 30m working range without a receiver.
  • Up to 120m working range with LR 6 or LR 7 receiver.
  • ±0.3mm/m leveling accuracy.
  • ±4° automatic self-leveling range.
  • Approximately 4-second leveling time.
  • IP54 protection against dust and splash water.
  • Compatible with 1/4" and 5/8" tripods.

Applications

  • Suspended ceiling installation
  • Floor and ceiling leveling
  • Window installation
  • Shelf and cabinet alignment
  • Drainage pipe installation
  • Drywall framework
  • Tile installation
  • General construction and renovation work

Package Contents

  • Bosch GLL 3-80 Professional Line Laser
  • 4 × 1.5V AA batteries
  • Laser target plate
  • Pouch

Safety Note

This is a Class 2 laser product. Do not look directly into the laser beam or intentionally direct the beam toward people or animals. Follow the manufacturer's safety instructions during operation.
