Home » Bosch GLL 18V-120-33 CG Laser Level

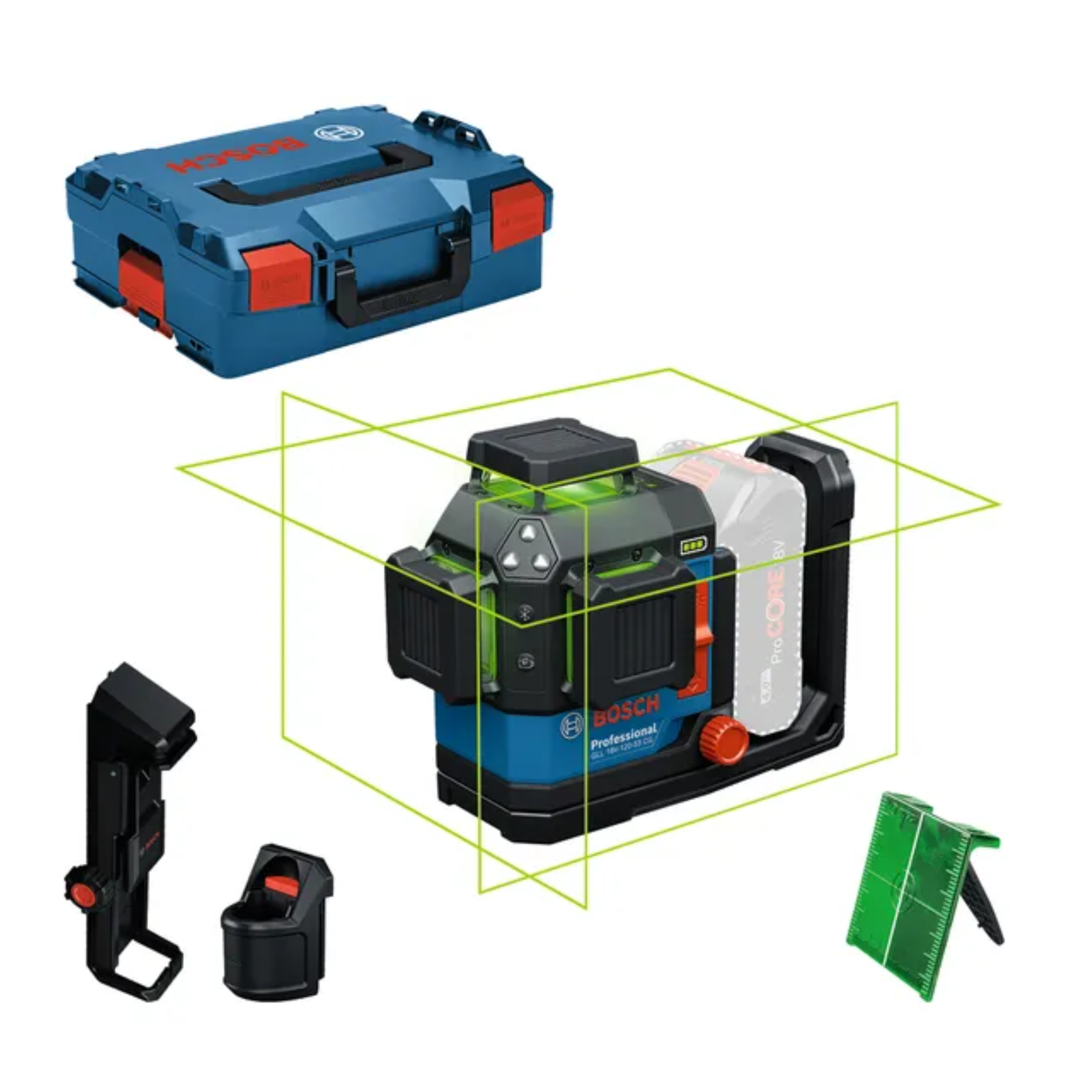

Bosch laser level with accessories on a white background
Bosch laser level with accessories on a white background

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Bosch GLL 18V-120-33 CG Laser Level

341.000 KD
In stock

Bosch GLL 18V-120-33 CG Professional is a robust green line laser designed for precise leveling and alignment on demanding construction sites. It projects three 360° green laser lines for comprehensive horizontal and vertical coverage, with a working range of 35m and up to 120m when used with the LR 7 receiver. The tool offers ±0.3mm/m accuracy, ±4° self-leveling and 3-second leveling time. Its IP65-rated housing, multiple power options and integrated magnetic mount provide reliable performance and flexibility for professional applications.

Specifications

Specification Details
Model GLL 18V-120-33 CG Professional
Order Number 0 601 065 1K0
Laser Colour Green
Laser Class Class 2
Laser Wavelength 500–540nm
Projection 3 × 360° laser lines
Working Range Up to 35m
Working Range with Receiver Up to 120m radius
Accuracy ±0.3mm/m
Self-Leveling Range ±4°
Leveling Time Approx. 3 seconds
Protection Rating IP65
Power Supply 18V Li-ion / 12V Li-ion / 4 × 1.5V C batteries
Operating Time Up to 20 hours with 18V 4.0Ah battery
Tripod Thread 1/4", 5/8"
Compatible Receiver Bosch LR 7
Weight Approx. 1.3kg without battery

Key Features

  • Green laser technology for improved visibility.
  • Projects three 360° laser lines for full-room leveling and alignment.
  • Up to 35m working range, extendable to 120m with LR 7 receiver.
  • ±0.3mm/m accuracy and ±4° self-leveling range.
  • IP65 dust and water protection for demanding jobsites.
  • Supports Bosch Professional 18V, 12V and C-cell power options.
  • Integrated magnetic mount with fine adjustment.
  • Bluetooth connectivity for remote line control through the Bosch Levelling Remote App.
  • Rubber-reinforced housing and laser windows for improved durability.

Applications

  • Drywall and partition installation
  • Ceiling and suspended ceiling installation
  • Door and window frame alignment
  • Electrical socket alignment
  • Pipe installation
  • Cabinet and fixture installation
  • Horizontal and vertical construction alignment
  • General professional leveling work

Package Contents

  • Bosch GLL 18V-120-33 CG Professional Laser Level
  • L-BOXX 136
  • DK 20 Professional ceiling clip
  • Laser target plate
  • BA 18-12 battery adapter

Safety Note

This is a Class 2 laser product. Do not look directly into the laser beam or intentionally direct the beam toward people or animals. Follow the manufacturer's safety instructions during operation.
