Bosch GHO 12V-20 Wood Planner (Bare Tool)
Couldn't load pickup availability

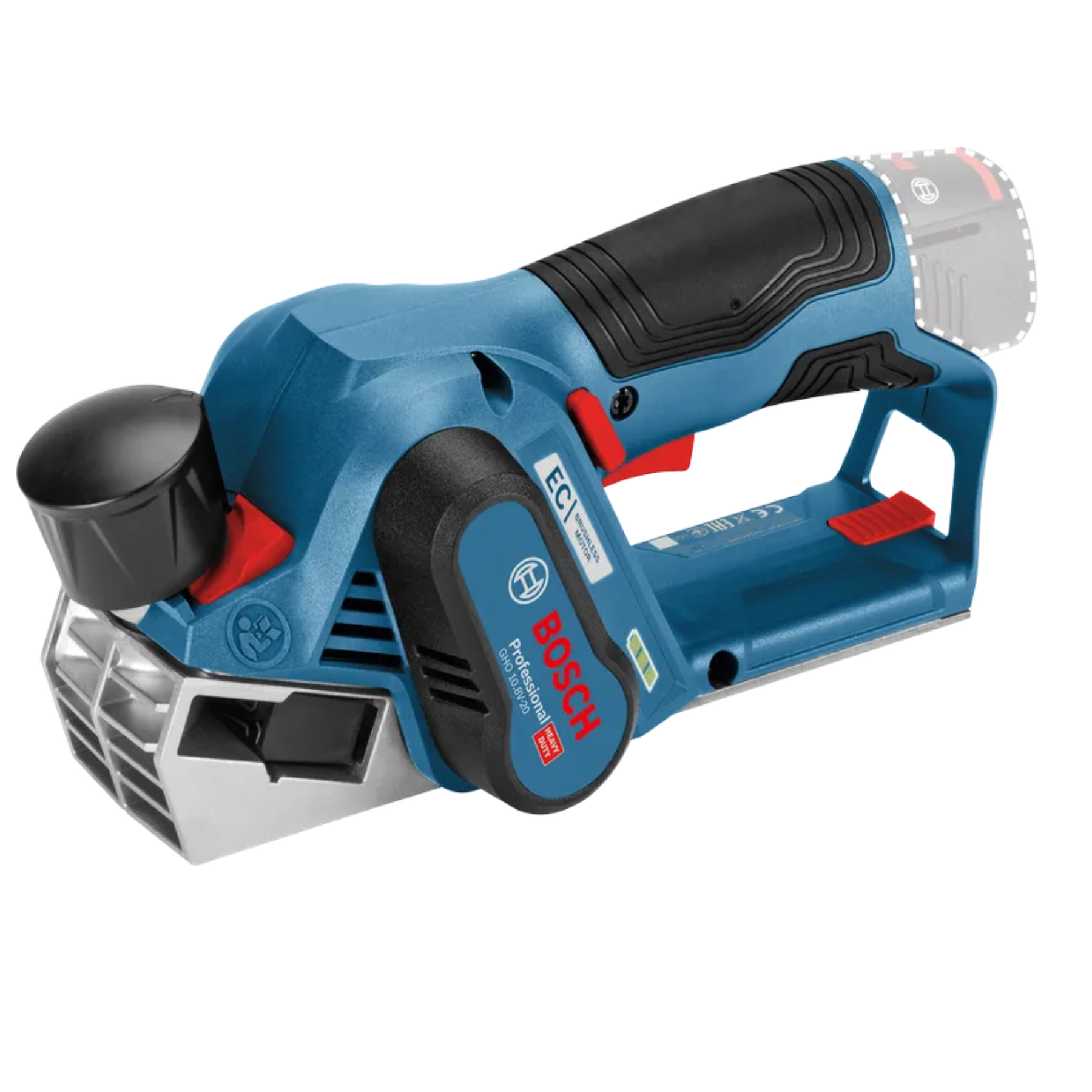

The Bosch GHO 12V-20 Professional Cordless Planer is a compact 12V tool designed for precise wood planing applications. Its EC brushless motor delivers a no-load speed of 14,500 rpm, while the 56 mm maximum planing width and adjustable 0–2 mm planing depth provide flexibility for different woodworking tasks. The optimized balance point and cordless design provide comfortable handling in various working positions. It is compatible with Bosch Professional 12V batteries, dustbags and the Bosch Click & Clean dust extraction system. (Bosch Professional)
Specifications
| Specification | Details |
|---|---|
| Battery Voltage | 12 V |
| Motor | EC Brushless |
| No-Load Speed | 14,500 rpm |
| Maximum Planing Width | 56 mm |
| Planing Depth | 0–2 mm |
| Rebating Depth | 0–17 mm |
| Weight Excl. Battery | 1.5 kg |
| Battery System | Bosch Professional 12V |
| Dust Extraction Compatibility | Bosch Click & Clean |
| Intended Application | Wood planing |
| Order Number | 0 601 5A7 000 |
Specifications are based on the official Bosch Professional 0 601 5A7 000 variant.
Key Features
- Compact 12V cordless planer
- EC brushless motor
- 14,500 rpm no-load speed
- 56 mm maximum planing width
- Adjustable 0–2 mm planing depth
- Rebating depth up to 17 mm
- Optimized balance point for comfortable handling
- Cordless operation for improved mobility
- Compatible with Bosch Professional 12V batteries
- Compatible with Bosch Click & Clean dust extraction system
- Wood Razor blade system
Applications
- Planing wooden surfaces
- Smoothing wood edges
- Levelling wooden surfaces
- Creating rebates
- Woodworking and carpentry
- Installation and renovation work
Package Contents
- 1 × Bosch GHO 12V-20 Wood Planner
- 2 × Planer Blades, 56 × 5.5 × 1.1 mm
- 1 × Cardboard Box
Note: This is the Bare Tool configuration, so the battery and charger are not included.
Safety Note
Always wear appropriate eye and hearing protection when required. Secure the workpiece properly, keep hands away from the cutting area and remove the battery before changing blades or performing maintenance. Follow Bosch operating and safety instructions.
