Bosch GDB-350 Diamond Core Drill
Couldn't load pickup availability

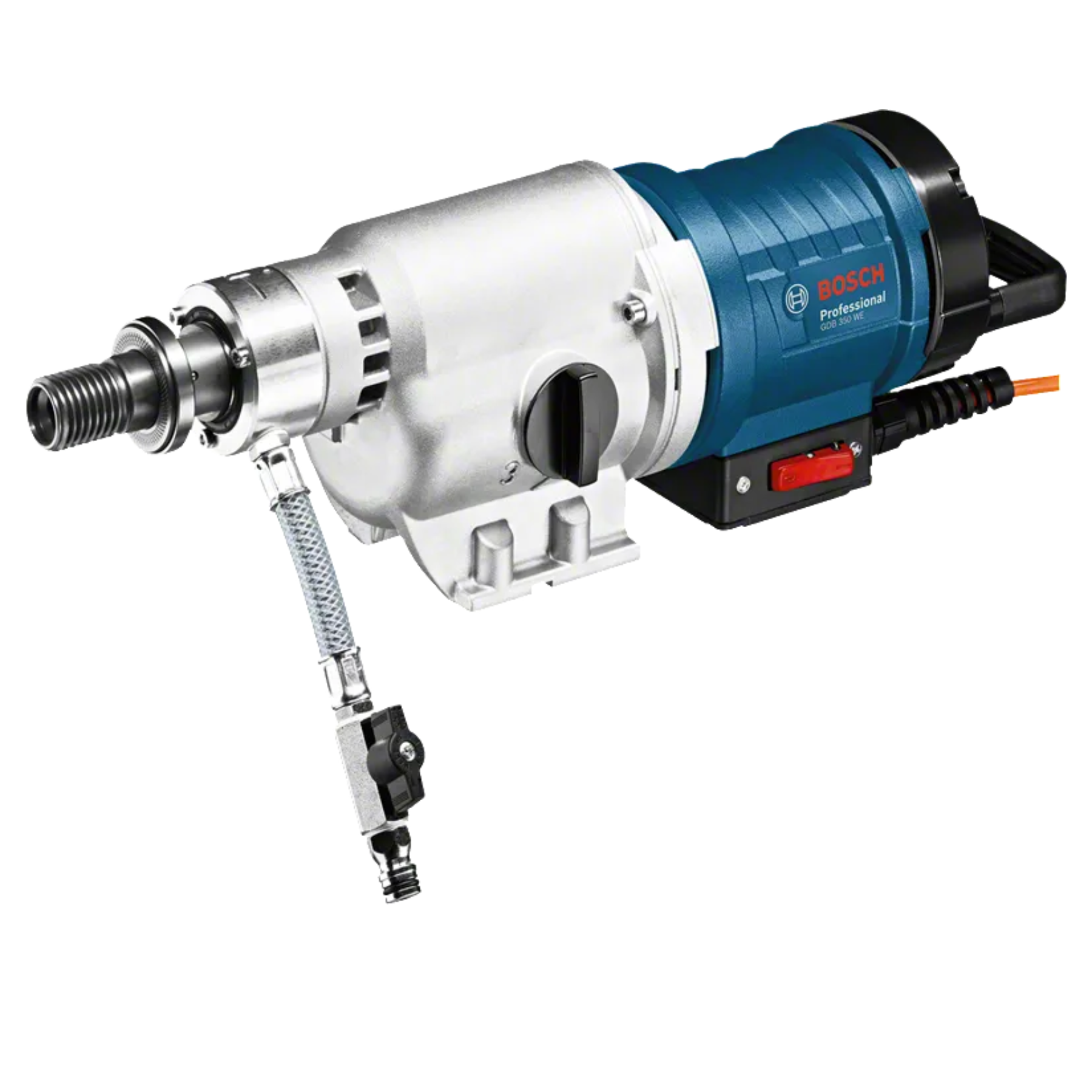

Bosch GDB 350 WE Professional is a high-powered electric diamond core drill designed for stand-mounted wet drilling in concrete and reinforced concrete. Its 3200W motor and three-speed gearbox provide 420, 820 and 1250 rpm, while the drill supports core diameters from 55mm up to 350mm depending on the selected gear. The robust construction and oil-bath lubricated gearbox are designed for demanding professional core-drilling applications.
Specifications
| Specification | Details |
|---|---|
| Brand | Bosch Professional |
| Model | GDB 350 WE |
| Product Type | Diamond Core Drill |
| Rated Power Input | 3200W |
| Power Output | 2300W |
| 1st Gear Speed | 420 rpm |
| 2nd Gear Speed | 820 rpm |
| 3rd Gear Speed | 1250 rpm |
| Drilling Range – 1st Gear | 165–350mm |
| Drilling Range – 2nd Gear | 80–160mm |
| Drilling Range – 3rd Gear | 55–105mm |
| Maximum Drilling Diameter | 350mm |
| Tool Holder | 1 1/4" UNC |
| Voltage | 230V |
| Weight | 11.9kg |
| Drilling Type | Wet drilling |
| Application Material | Concrete and reinforced concrete |
| Article Number | 0 601 189 900 |
Key Features
- Powerful 3200W motor for heavy-duty core drilling
- Three-speed gearbox for different drilling diameters
- Maximum drilling diameter up to 350mm
- 1 1/4" UNC tool holder
- Designed for wet drilling in concrete and reinforced concrete
- Robust construction for demanding applications
- Oil-bath lubricated gearbox
- Designed for stand-mounted operation
- Compatible with the Bosch GCR 350 Professional drill stand
- Suitable for professional construction and concrete drilling work
Applications
- Core drilling in concrete
- Core drilling in reinforced concrete
- Large-diameter drilling
- Construction work
- Plumbing and pipe installation
- Electrical and mechanical service openings
- Professional concrete drilling applications
Package Contents
- Bosch GDB 350 WE Diamond Core Drill
- Water coupling
- Carton box
Note: The GCR 350 drill stand and diamond core bits are separate accessories and are not included as standard with the referenced GDB 350 WE package.
Safety Note
Use the GDB 350 only with the appropriate Bosch drill stand and compatible wet diamond core bits. Use suitable eye, hearing and protective equipment, ensure proper water supply, and follow Bosch operating and safety instructions. Overhead drilling is not permitted for this system.
