Bosch GCR-350 Core Drill Stand
Couldn't load pickup availability

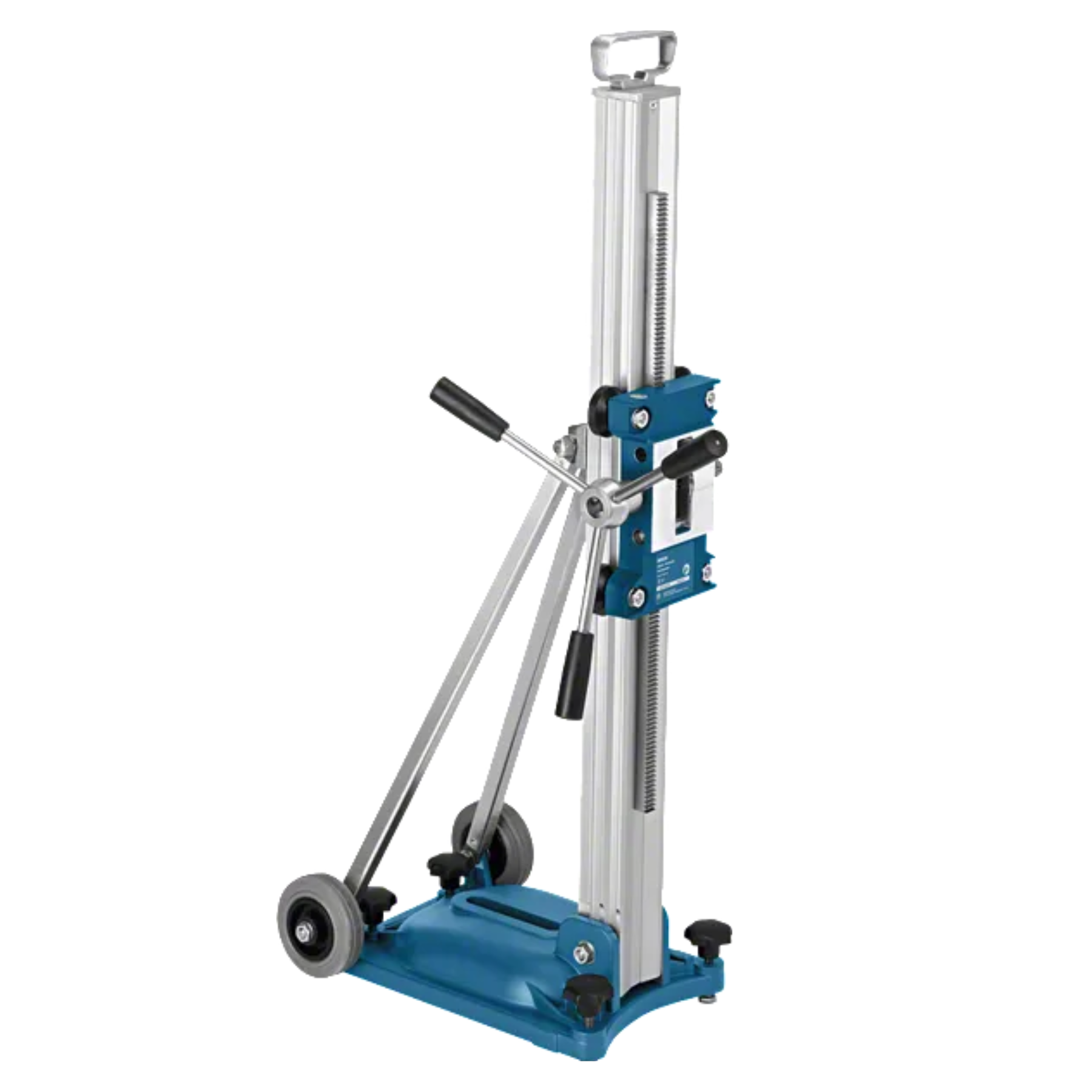

Bosch GCR 350 Professional is a robust drill stand designed for use with the Bosch GDB 350 WE diamond drill. It provides stable and precise guidance for demanding core-drilling applications, with a 955mm column, 580mm maximum drill stroke and 550mm maximum working length. The stand supports core drilling up to 300mm as standard and up to 350mm when used with the required spacer plate.
Specifications
| Specification | Details |
|---|---|
| Brand | Bosch Professional |
| Model | GCR 350 |
| Product Type | Diamond Core Drill Stand |
| Column Length | 955mm |
| Drill Stand Width | 323mm |
| Drill Stand Depth | 388mm |
| Maximum Drill Stroke | 580mm |
| Maximum Working Length | 550mm |
| Maximum Core Diameter | 300mm |
| Maximum Core Diameter with Spacer Plate | 350mm |
| Core Diameter with Water Collection Ring | 202mm |
| Core Length | 530mm |
| Weight | 12.6kg |
| Securing Type | Bolted |
| Compatible Diamond Drill | GDB 350 WE |
| Article Number | 0 601 190 200 |
Key Features
- Robust construction for precise diamond core drilling
- 955mm column for extended drilling movement
- 580mm maximum drill stroke
- 550mm maximum working length
- Supports core diameters up to 300mm
- Up to 350mm core diameter with required spacer plate
- Easy diamond drill mounting
- Angle adjustment scale for convenient positioning
- Designed specifically for Bosch GDB 350 WE
- Suitable for demanding professional concrete drilling applications
Applications
- Diamond core drilling
- Concrete drilling
- Reinforced concrete drilling
- Large-diameter hole drilling
- Pipe installation
- Electrical and mechanical service openings
- Construction and building work
- Professional drilling applications
Package Contents
- Bosch GCR 350 Core Drill Stand
- Adapter for Bosch GDB 350 WE diamond drill
- Cardboard box
The diamond drill, core bits, spacer plate and other accessories are not included unless specifically stated with the selected package.
Safety Note
Secure the drill stand properly before operation and use it only with compatible diamond drilling equipment. Follow Bosch installation and operating instructions, use suitable personal protective equipment, and do not use the stand for overhead drilling.
