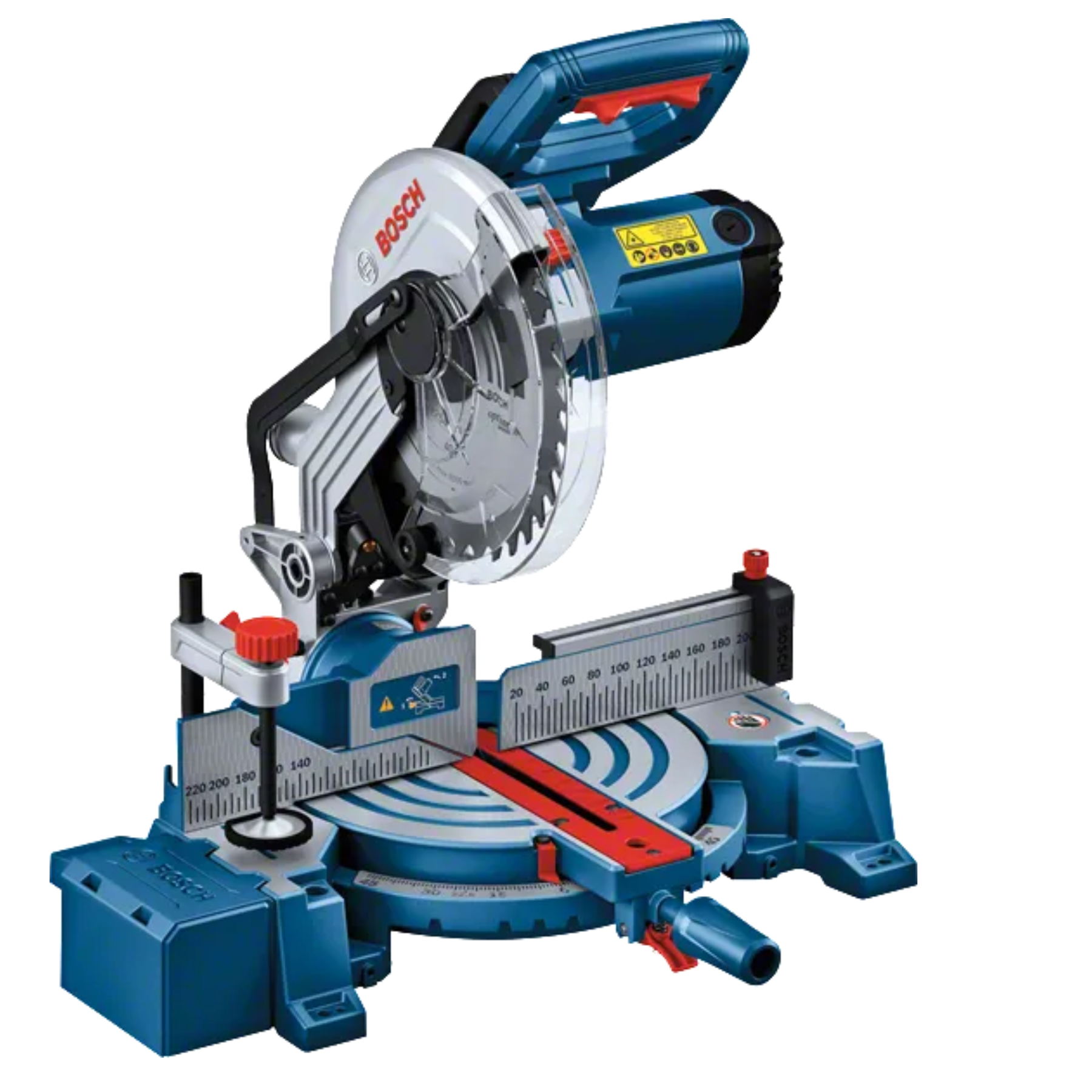

Bosch GCM254SD Slide Mitre Saw
Couldn't load pickup availability
The Bosch GCM 254 D is a professional sliding mitre saw designed for accurate and repetitive cutting of wood and aluminium. Its 1,800 W motor delivers 4,800 rpm, while the 254 mm saw blade provides a maximum cutting capacity of 90 × 310 mm at 0°. The sliding mechanism allows larger workpieces to be cut, while the highly visible laser guide supports accurate alignment. A detachable box extension and length gauge provide additional stability and convenience for repetitive cutting applications. Note: Bosch’s official model designation is GCM 254 D; “GCM254SD” is retained here as the product name supplied.
Specifications
| Specification | Details |
|---|---|
| Rated Input Power | 1,800 W |
| Saw Blade Diameter | 254 mm |
| Saw Blade Bore | 30 mm* |
| No-Load Speed | 4,800 rpm |
| Mitre Setting | 47° L / 52° R |
| Bevel Setting | 45° L / 45° R |
| Cutting Capacity at 0° | 90 × 310 mm |
| Cutting Capacity at 45° Mitre | 90 × 210 mm |
| Cutting Capacity at 45° Bevel | 45 × 310 mm |
| Laser Guide | Yes |
| Tool Dimensions | 574 × 779 × 645 mm |
| Weight | 17.9 kg |
| Product Type | Sliding Mitre Saw |
| Order Number | 0 601 B53 000* |
Key Features
- Powerful 1,800 W professional motor
- 254 mm saw blade
- 4,800 rpm no-load speed
- 310 mm sliding cutting capacity at 0°
- Highly visible laser guide for accurate cutting
- 47° mitre adjustment left and 52° right
- 45° bevel adjustment left and right
- Detachable box extension for improved workpiece support
- Length gauge for repetitive cuts
- Designed for long-life professional use
- Suitable for cutting wood and aluminium
Applications
- Cross-cutting wood
- Sliding cuts on large wooden workpieces
- Mitre cutting
- Bevel cutting
- Compound cutting
- Cutting aluminium profiles
- Repetitive professional woodworking
- Carpentry, roofing and installation work
Package Contents
- 1 × Bosch GCM 254 D Sliding Mitre Saw
- 1 × 254 mm Optiline Wood circular saw blade, 40 teeth
- 1 × Supporting box
- 1 × Dust bag
Package contents can vary by regional SKU. Bosch lists the supporting box and dust bag across variants, with either an Optiline Wood or Expert for Wood 254 mm blade depending on the selected variant.
Safety Note
Always secure the saw to a stable work surface and properly support the workpiece before cutting. Keep hands away from the rotating blade and use appropriate eye, hearing and respiratory protection. Follow all Bosch operating and safety instructions.
